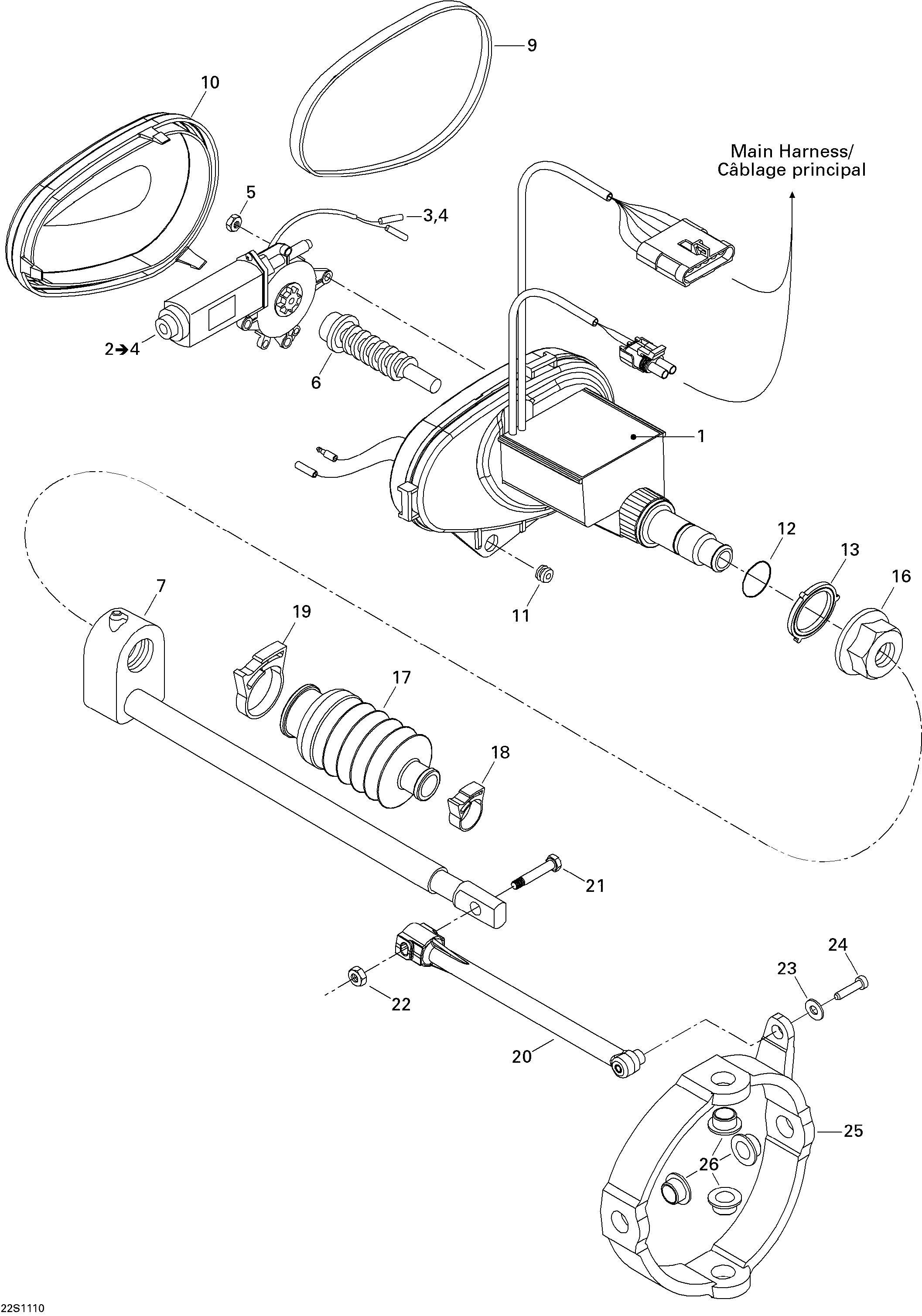

05- Trim, Electrical для BRP RXP-X 255 & RS - 2011
-
№АртикулНазвание
-
1278001605 V.T.S HousingV.T.S Housing
-
2278001292 V.T.S. Motor Ass'y. Includes 2 to 4V.T.S. Motor Ass'y. Includes 2 to 4
-
3278000231 Insulation SheathInsulation Sheath
-
4278000230 Male TerminalMale Terminal
-
5232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6278000428 Worm ScrewWorm Screw
-
7278001698 Sliding Block Ass'ySliding Block Ass'y
-
9293200027 GasketGasket
-
10278000595 V.T.S. CoverV.T.S. Cover
-
11293720015 GrommetGrommet
-
12293300044 O-RingO-Ring
-
13293830027 Seal WasherSeal Washer
-
16211100020 Special Nut M27Special Nut M27
-
17271000459 Protector HoseProtector Hose
-
18293650082 ClampClamp
-
19293650083 ClampClamp
-
20271001179 V.T.S. RodV.T.S. Rod
-
21250000173 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
22232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
23234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
24250000018 Pivot ScrewPivot Screw
-
25266000013 Trim Ring, BlackTrim Ring, Black
-
26293900007 Venturi BushingVenturi Bushing
