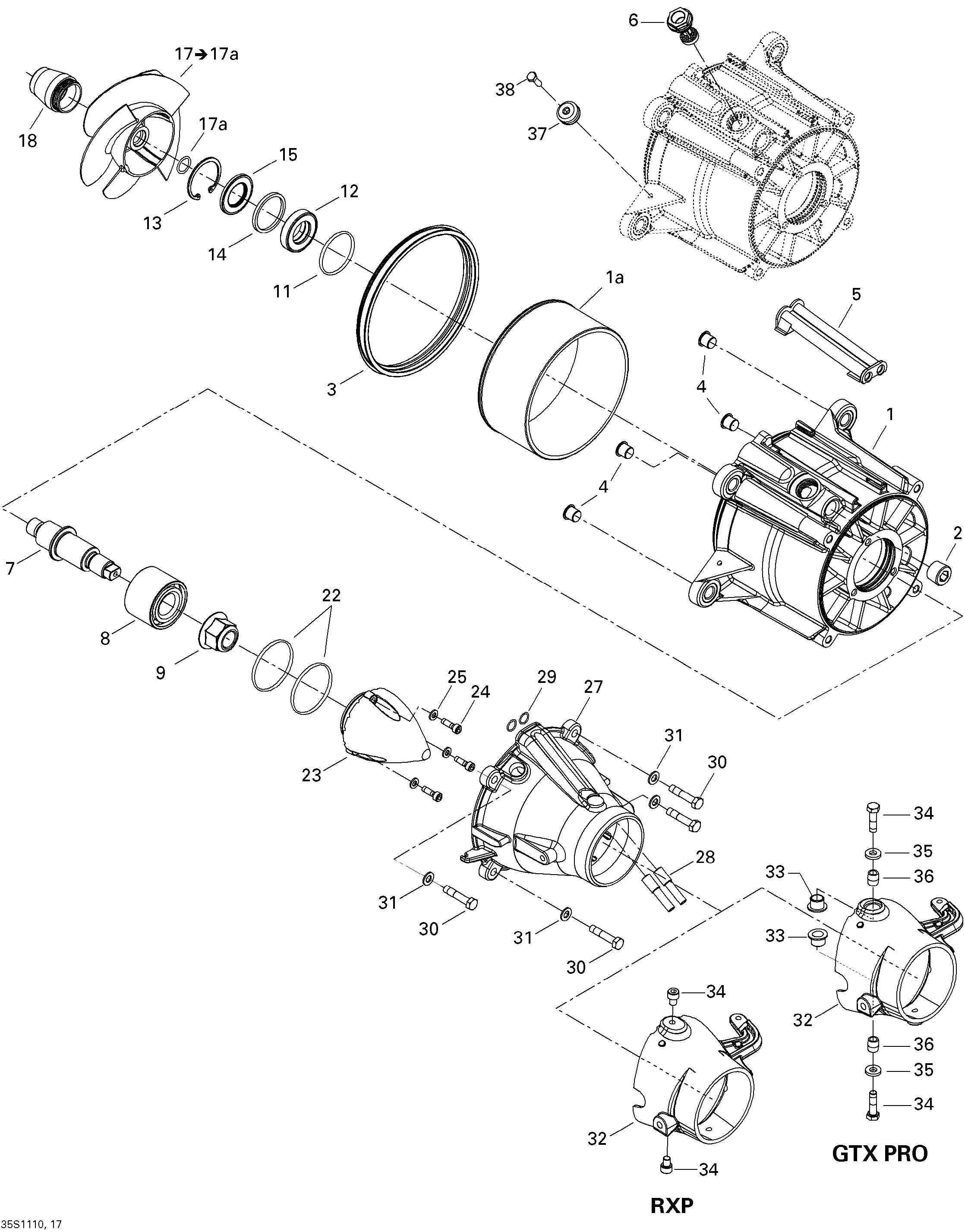

05- Pump для BRP RXP-X 255 & RS - 2011
-
№АртикулНазвание
-
1267000417 Impeller HousingImpeller Housing
-
1a267000372 Wear Ring. RXPWear Ring. RXP
-
2267000469 PlugPlug
-
3293200087 Neoprene SealNeoprene Seal
-
4267000093 BushingBushing
-
5271000785 Water OutletWater Outlet
-
6267000282 PlugPlug
-
7267000388 Impeller ShaftImpeller Shaft
-
8267000030 Angled BearingAngled Bearing
-
9250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
11293300090 O-RingO-Ring
-
12293200086 Oil SealOil Seal
-
13293370038 CirclipCirclip
-
14271001393 SpacerSpacer
-
15293200089 Oil SealOil Seal
-
17267000444 Stainless Steel Impeller. RXP North AmericaStainless Steel Impeller. RXP North America
-
17267000481 Stainless Steel Impeller. RXP InternationalStainless Steel Impeller. RXP International
-
17a293300114 O-RingO-Ring
-
18267000458 Impeller Boot. RXPImpeller Boot. RXP
-
22293300086 O-RingO-Ring
-
23267000428 Impeller CoverImpeller Cover
-
24205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
25234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27267000360 Venturi. RXPVenturi. RXP
-
28271001133 Siphon TubeSiphon Tube
-
29293300013 O-RingO-Ring
-
30207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
31234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
32267000550 Steering Nozzle, Black. RXPSteering Nozzle, Black. RXP
-
34211000127 Socket Screw M8 X 10, Scotch Grip. RXPSocket Screw M8 X 10, Scotch Grip. RXP
-
37271001487 Anode ZincAnode Zinc
-
38207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
