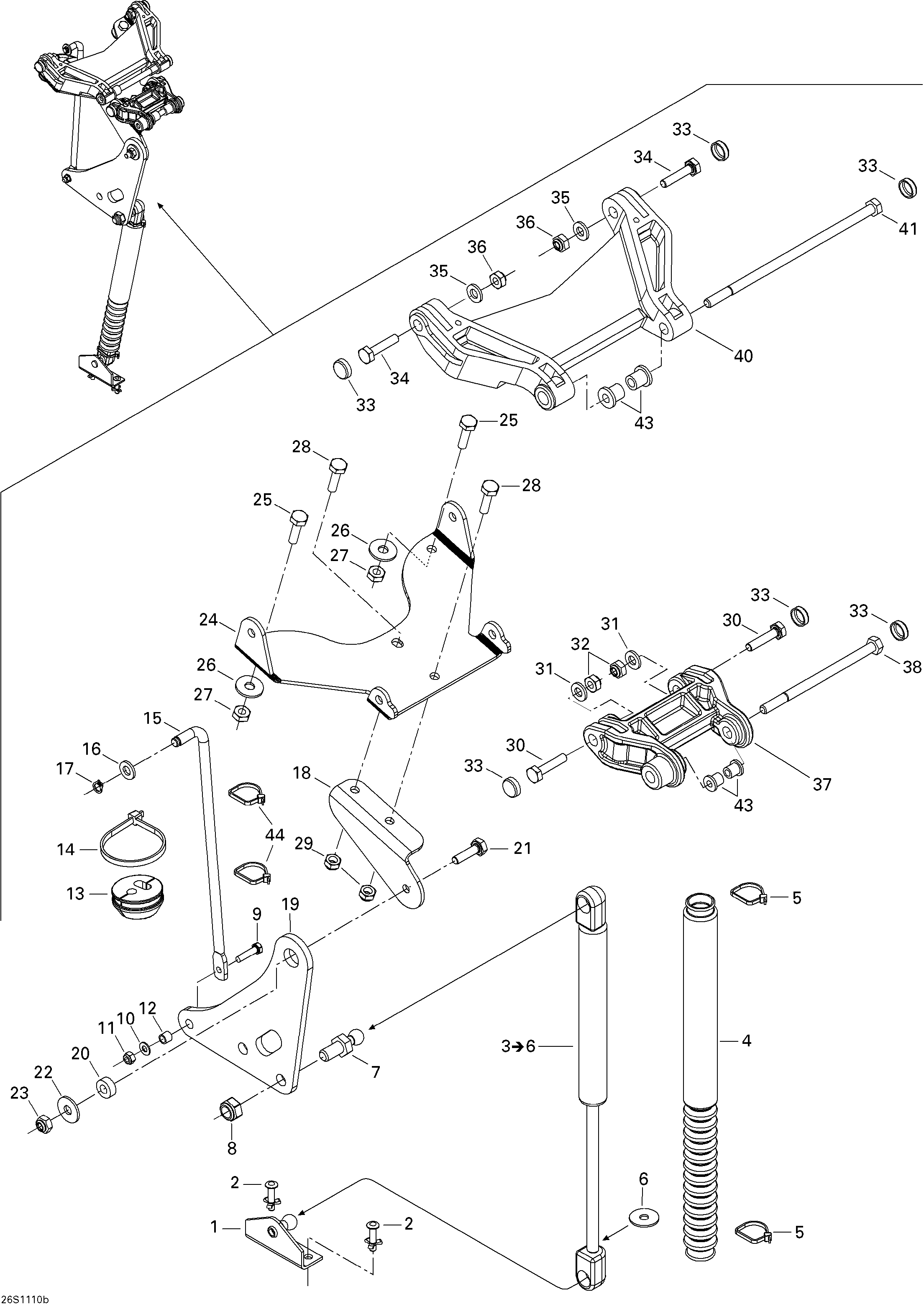

09- Front Cover 2 для BRP RXP-X 255 & RS - 2011
-
№АртикулНазвание
-
1291002124 Shock SupportShock Support
-
2293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
3269501167 Gas Shock Ass'y. Includes 3 to 6Gas Shock Ass'y. Includes 3 to 6
-
4269501168 BellowBellow
-
5293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
6250200033 Flat Washer, AluminumFlat Washer, Aluminum
-
7250300016 Ball StudBall Stud
-
8232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
9207141660 Hex. Screw M4 X 16Hex. Screw M4 X 16
-
10234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
11232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
12269501130 SpacerSpacer
-
13293720070 Cable Grommet. North AmericaCable Grommet. North America
-
14414115200 Tie-Rap 180 mm. North AmericaTie-Rap 180 mm. North America
-
15269500842 RodRod
-
16234061600 Flat Washer M6, Stainless. North AmericaFlat Washer M6, Stainless. North America
-
17293370005 Circlip 6 mm. North AmericaCirclip 6 mm. North America
-
18269501742 Support LeverSupport Lever
-
19269501576 LeverLever
-
20269501172 SpacerSpacer
-
21207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
22234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
24269500703 Pivot SupportPivot Support
-
25207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
28207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
29232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
30211000022 Hex. Special Screw M6 X 25Hex. Special Screw M6 X 25
-
31234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
32232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
33414436900 Snap Cap, BlackSnap Cap, Black
-
34211000022 Hex. Special Screw M6 X 25. North AmericaHex. Special Screw M6 X 25. North America
-
35234061600 Flat Washer M6, Stainless. North AmericaFlat Washer M6, Stainless. North America
-
36232561200 Brass Elastic Stop Nut, M6. North AmericaBrass Elastic Stop Nut, M6. North America
-
37269500704 Front ArmFront Arm
-
38207066060 Hex. Screw M6 X 60. North AmericaHex. Screw M6 X 60. North America
-
40269501483 Rear ArmRear Arm
-
41230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
43269500706 SleeveSleeve
-
44414115200 Tie-Rap 180 mm. InternationalTie-Rap 180 mm. International
