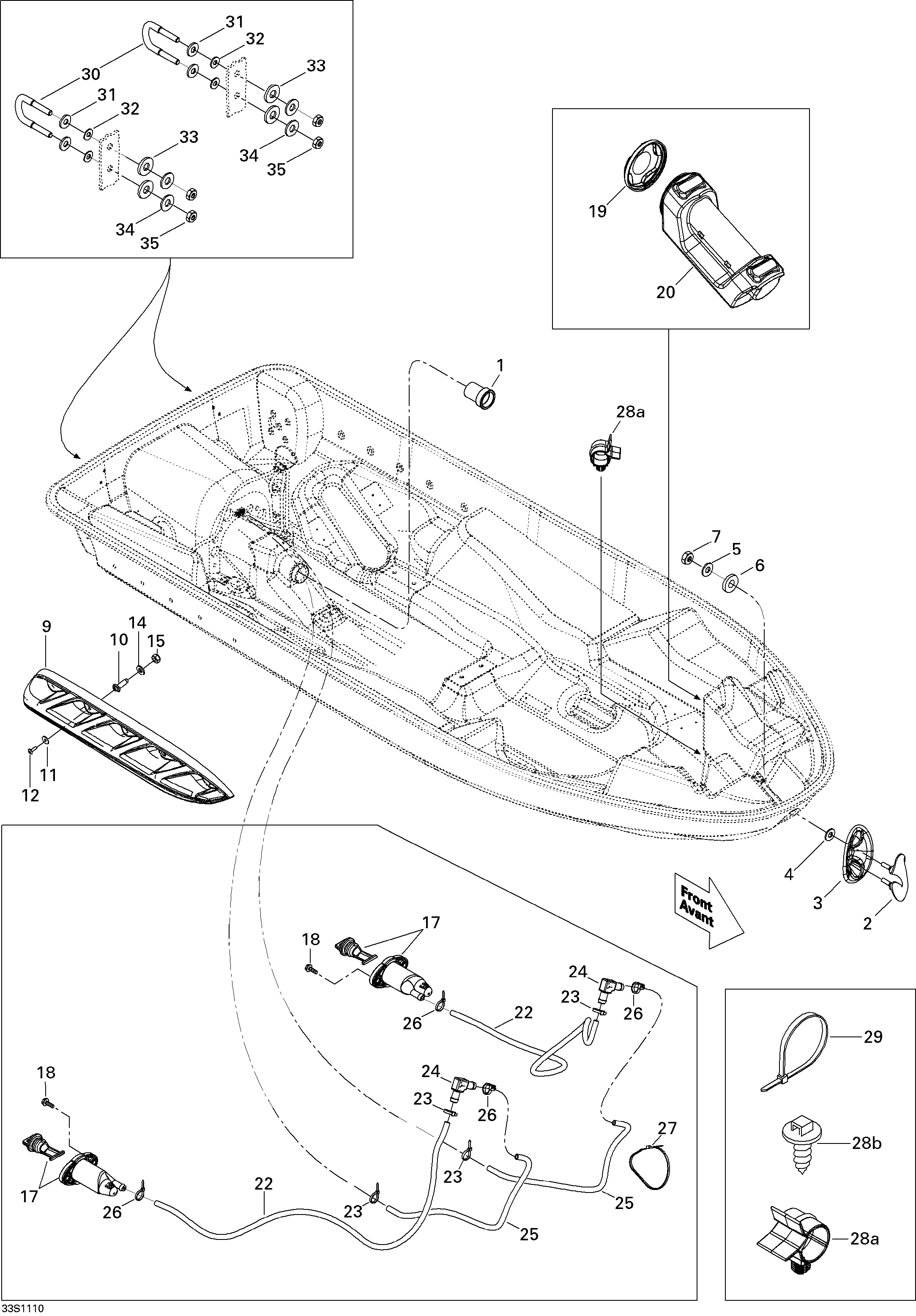

09- Hull для BRP RXP-X 255 & RS - 2011
-
№АртикулНазвание
-
1292000974 Hull Insert, 50 mmHull Insert, 50 mm
-
2292000708 Bow Eye Ass'y, BlackBow Eye Ass'y, Black
-
3292000453 Shell, BlackShell, Black
-
4234081600 Flat Washer 8 mmFlat Washer 8 mm
-
5250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6293830037 Rubber WasherRubber Washer
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
9292001378 RH SponsonRH Sponson
-
9292001377 LH SponsonLH Sponson
-
10292001046 Sponson AdapterSponson Adapter
-
11250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
12250000299 Torx Screw M6.6 x 20, StainlessTorx Screw M6.6 x 20, Stainless
-
14250200053 Flat Washer M12Flat Washer M12
-
15250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
17292001252 Drain PlugDrain Plug
-
18211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
19269500603 Extinguisher CapExtinguisher Cap
-
20269500606 Extinguisher HousingExtinguisher Housing
-
22415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
23293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
24293710117 Elbow Fitting 90°Elbow Fitting 90°
-
25415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
26293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
28a275500527 RetainerRetainer
-
28b293730040 Mount DartMount Dart
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30292000933 U-ClampU-Clamp
-
31293050001 Flat WasherFlat Washer
-
32234081100 Flat Washer 8 mmFlat Washer 8 mm
-
33293830037 Rubber WasherRubber Washer
-
34250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
35232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
