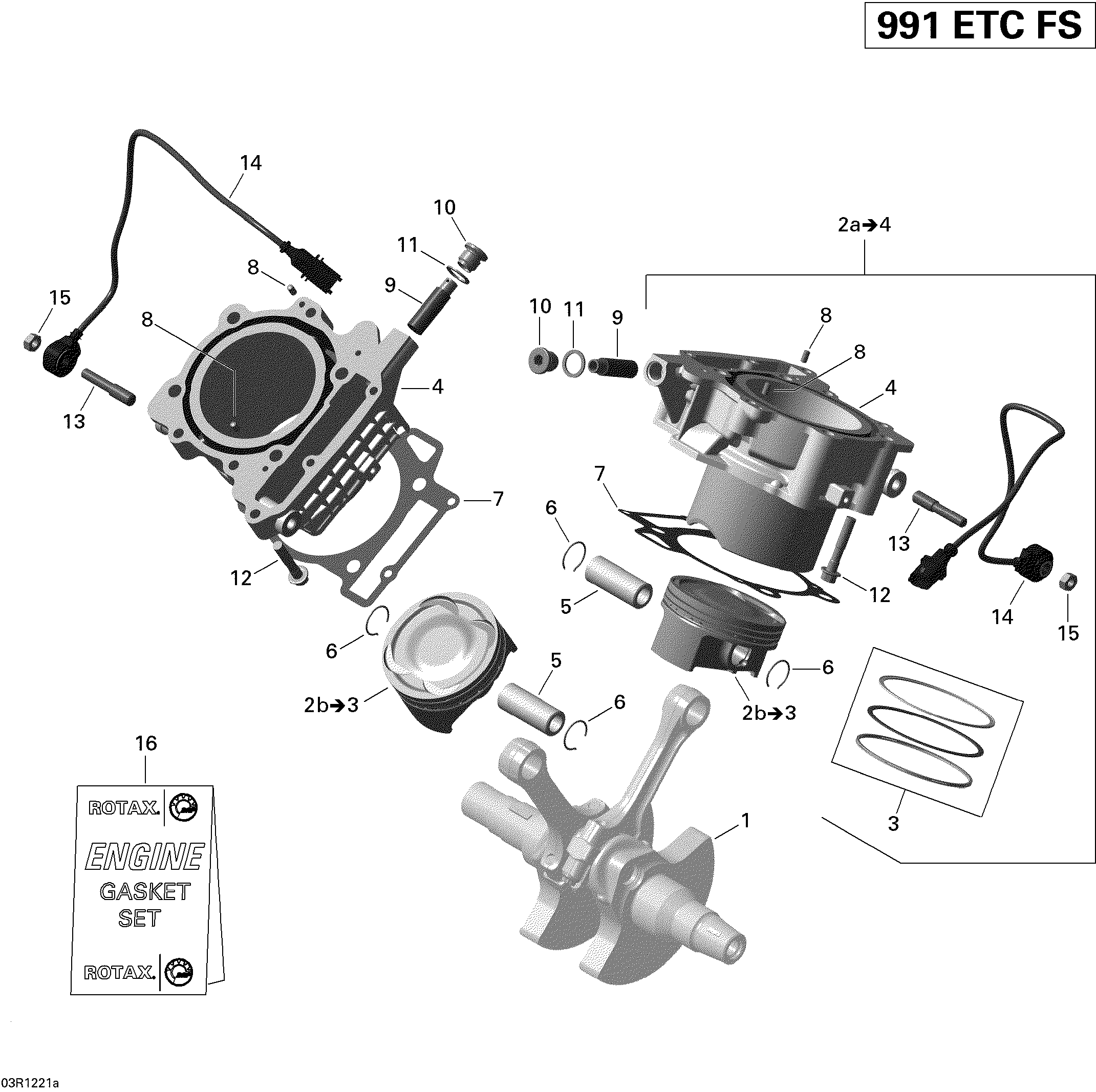

01- Cylinder And Piston для BRP Spyder RT SM5 - 2012
-
№АртикулНазвание
-
1420684794 CrankshaftCrankshaft
-
2a420623912 Cylinder & Pistons Ass'y. Includes 2a to 4Cylinder & Pistons Ass'y. Includes 2a to 4
-
2b420685491 Piston Ass'y, 96.945 mm. Includes 2b to 3Piston Ass'y, 96.945 mm. Includes 2b to 3
-
2b420685492 Piston Ass'y, 96.955 mm. Includes 2b to 3Piston Ass'y, 96.955 mm. Includes 2b to 3
-
3420295858 Piston Ring SetPiston Ring Set
-
5420216222 Piston PinPiston Pin
-
6420245436 Piston CirclipPiston Circlip
-
7420650390 Cylinder GasketCylinder Gasket
-
8420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
9415129408 Chain TensionerChain Tensioner
-
10420640457 Plug ScrewPlug Screw
-
11420430622 O-RingO-Ring
-
12420940637 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
13420441444 Stud M8/M10Stud M8/M10
-
14420664031 Noise SensorNoise Sensor
-
15232081414 Hex. Nut M8Hex. Nut M8
-
16420685480 Gasket Set, EngineGasket Set, Engine
