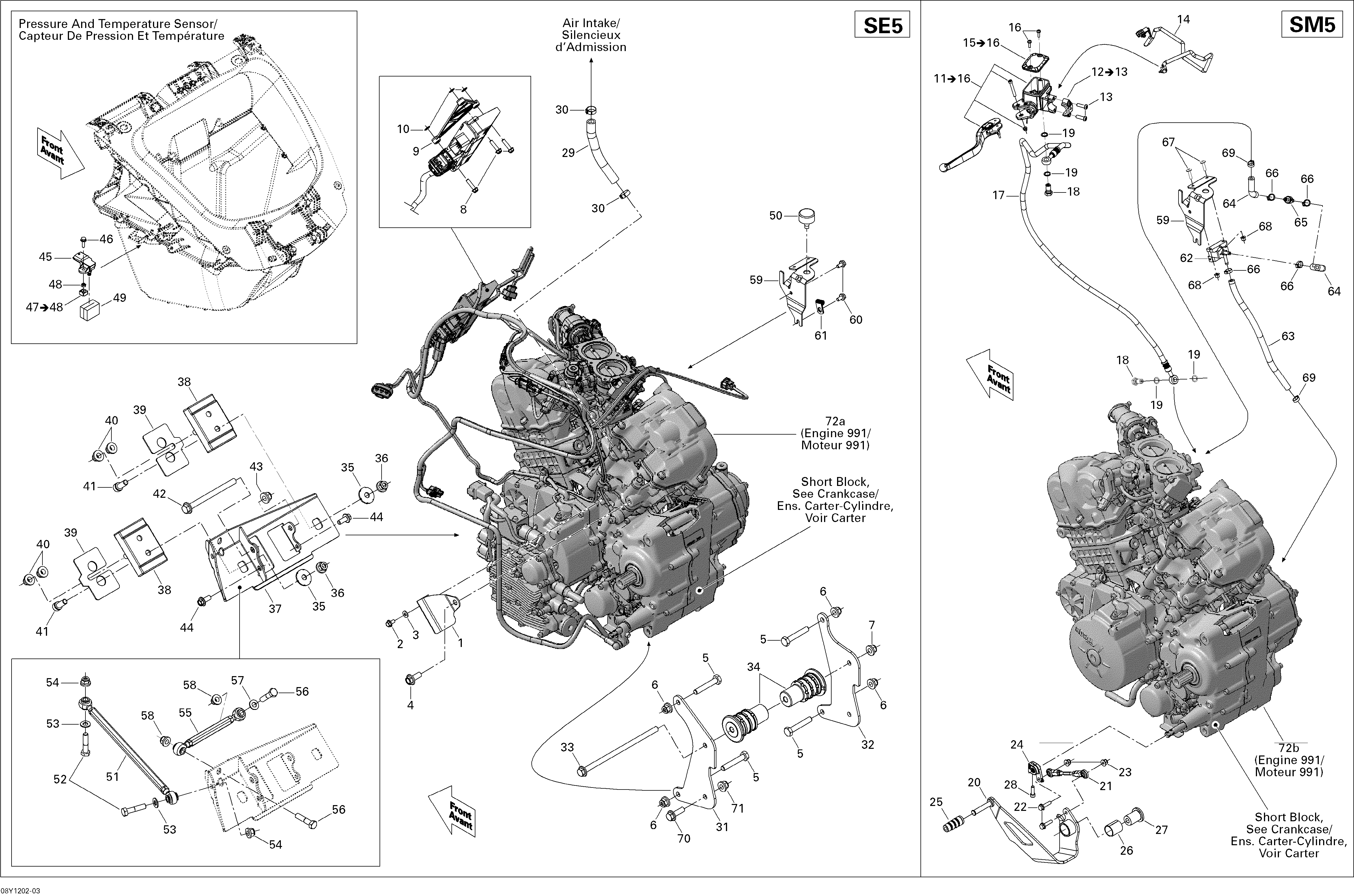

01- Engine SM5 для BRP Spyder RT SM5 - 2012
-
№АртикулНазвание
-
1707000845 DeflectorDeflector
-
2207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
3224061121 Flat WasherFlat Washer
-
4207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
5207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
6233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
7233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
9710001886 SpacerSpacer
-
10732610072 Push NutPush Nut
-
11707000975 Master Cylinder. Includes 11 to 16Master Cylinder. Includes 11 to 16
-
12719000049 Clamps Kit. Includes 12 to 13Clamps Kit. Includes 12 to 13
-
13250000433 Torx Screw M6 X 20Torx Screw M6 X 20
-
14219800083 MicroswitchMicroswitch
-
15219800096 Cap Set. Includes 15 to 16Cap Set. Includes 15 to 16
-
16415129356 Screw M4 X 20Screw M4 X 20
-
17707001119 HoseHose
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20707000950 LeverLever
-
21504152819 Linkage RodLinkage Rod
-
22207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24707000649 Shifter ArmShifter Arm
-
25707000456 End Clutch PedalEnd Clutch Pedal
-
26503191554 BushingBushing
-
27503190698 AxleAxle
-
28514054047 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
29707000484 HoseHose
-
30293650186 Oetiker ClampOetiker Clamp
-
31707000510 LH SupportLH Support
-
32707000512 RH SupportRH Support
-
33250000286 Hex. Flanged Screw M10 X 210Hex. Flanged Screw M10 X 210
-
34707000814 Rubber MountRubber Mount
-
35512056700 Lock WasherLock Washer
-
36233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
37707001072 Front Engine SuportFront Engine Suport
-
38707000815 Rubber MountRubber Mount
-
39707001074 ShimShim
-
40233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
41205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
42230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
43233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
44207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
45707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
46207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47269500725 Nut Housing Ass'y. Includes 47 to 48Nut Housing Ass'y. Includes 47 to 48
-
48232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
49707000586 FilterFilter
-
50708000758 Rubber StopperRubber Stopper
-
51707000816 Tie Rod Ass'yTie Rod Ass'y
-
52207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
53234001410 Flat Washer 10 mmFlat Washer 10 mm
-
54233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
55707001001 Tie Rod Ass'yTie Rod Ass'y
-
56207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
57234001410 Flat Washer 10 mmFlat Washer 10 mm
-
58233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
59707000756 Intake SupportIntake Support
-
60207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
61415052400 AttacheAttache
-
62707000530 Solenoid ValveSolenoid Valve
-
63513033565 HoseHose
-
64513033565 HoseHose
-
65513033469 Check ValveCheck Valve
-
66293650042 Oetiker ClampOetiker Clamp
-
67250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
68233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
69293650042 Oetiker ClampOetiker Clamp
-
70207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
71233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
72b707001126 Engine 991Engine 991
