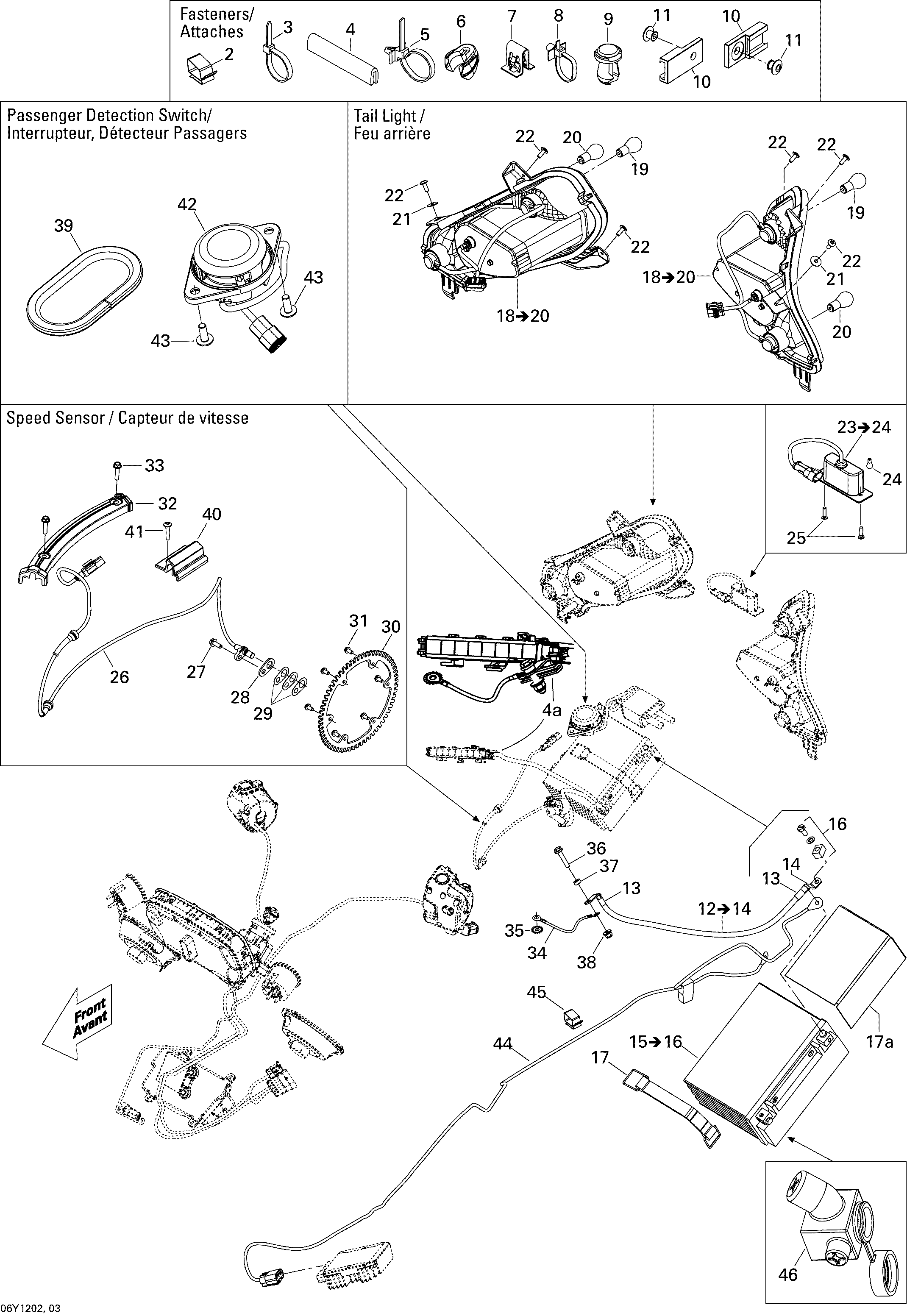

10- Electrical Accessories, Rear для BRP Spyder RT SM5 - 2012
-
№АртикулНазвание
-
2414227300 Clip. SClip. S
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
4271001530 TrimTrim
-
4a710001741 TrimTrim
-
5293750009 Tie-Rap 173 mm. SE5Tie-Rap 173 mm. SE5
-
6710001452 Wire BracketWire Bracket
-
7517302785 Clip. Europe , North America SClip. Europe , North America S
-
8710002197 Unlocking ClipUnlocking Clip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12710000830 Ground Cable Ass'y, Battery/FrameGround Cable Ass'y, Battery/Frame
-
13710000483 Shrink TubingShrink Tubing
-
14710000518 Open BarrelOpen Barrel
-
15410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
16295500849 Battery Fastener KitBattery Fastener Kit
-
17515176044 Battery StrapBattery Strap
-
17a710002645 Battery ProtectorBattery Protector
-
18710002502 LH Rear Tail LightLH Rear Tail Light
-
18710002501 RH Rear Tail LightRH Rear Tail Light
-
19520000758 BulbBulb
-
19520000758 BulbBulb
-
20219800122 Flasher BulbFlasher Bulb
-
20219800122 Flasher BulbFlasher Bulb
-
21224060201 Flat WasherFlat Washer
-
22250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
23710001451 License LightLicense Light
-
24219800128 BulbBulb
-
25250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
26706200560 Speed SensorSpeed Sensor
-
27210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
28710002024 ShimShim
-
29710002023 ShimShim
-
30705600573 Tone WheelTone Wheel
-
31207551034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
32710001035 ProtectorProtector
-
33250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
34710001165 Ground HarnessGround Harness
-
35250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
36207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
37293900054 BushingBushing
-
38233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
39271001530 TrimTrim
-
40710002145 Hose SupportHose Support
-
41250000371 Stainless Torx Screw, M6 X 30Stainless Torx Screw, M6 X 30
-
42710001346 Passenger Detection SwitchPassenger Detection Switch
-
43250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
44710002238 Regulator CableRegulator Cable
-
45414227300 ClipClip
-
46710002261 Battery BootBattery Boot
