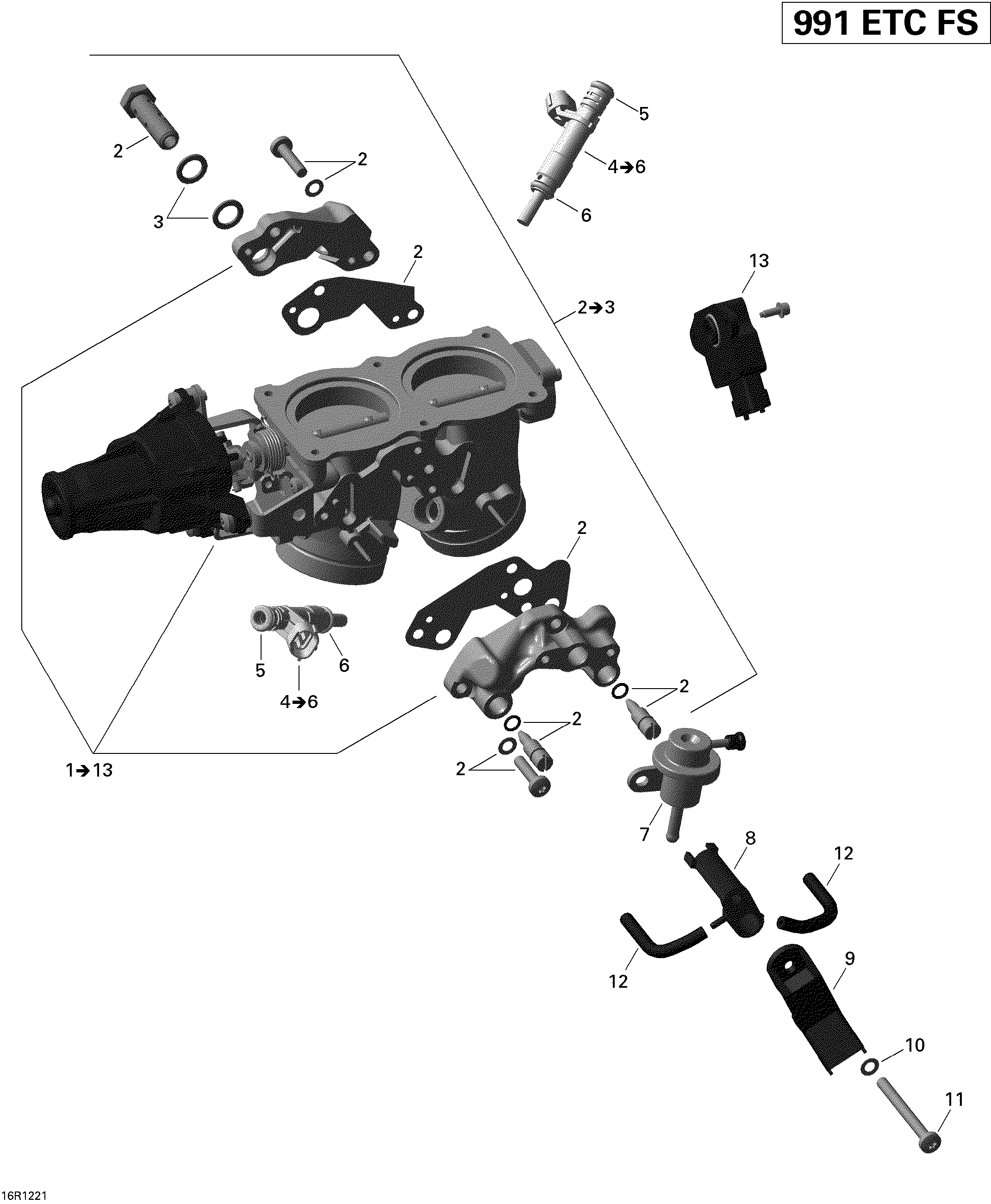

02- Throttle Body для BRP Spyder RT SM5 - 2012
-
№АртикулНазвание
-
1420296976 Throttle Body Ass'y. Includes 1 to 13Throttle Body Ass'y. Includes 1 to 13
-
2420281243 Venturi Repair Device Kit. Includes 2 to 3Venturi Repair Device Kit. Includes 2 to 3
-
3420250015 Washer, CopperWasher, Copper
-
4420874488 Fuel Injector Ass'y. Includes 4 to 6Fuel Injector Ass'y. Includes 4 to 6
-
5420631220 O-RingO-Ring
-
6420431890 O-RingO-Ring
-
7420274105 Pressure RegulatorPressure Regulator
-
8420460290 AdapterAdapter
-
9420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
10420845020 Spring WasherSpring Washer
-
11420240371 Allen Screw M6 X 60Allen Screw M6 X 60
-
12420960115 Hose, SensorHose, Sensor
-
13420274095 PotentiometerPotentiometer
