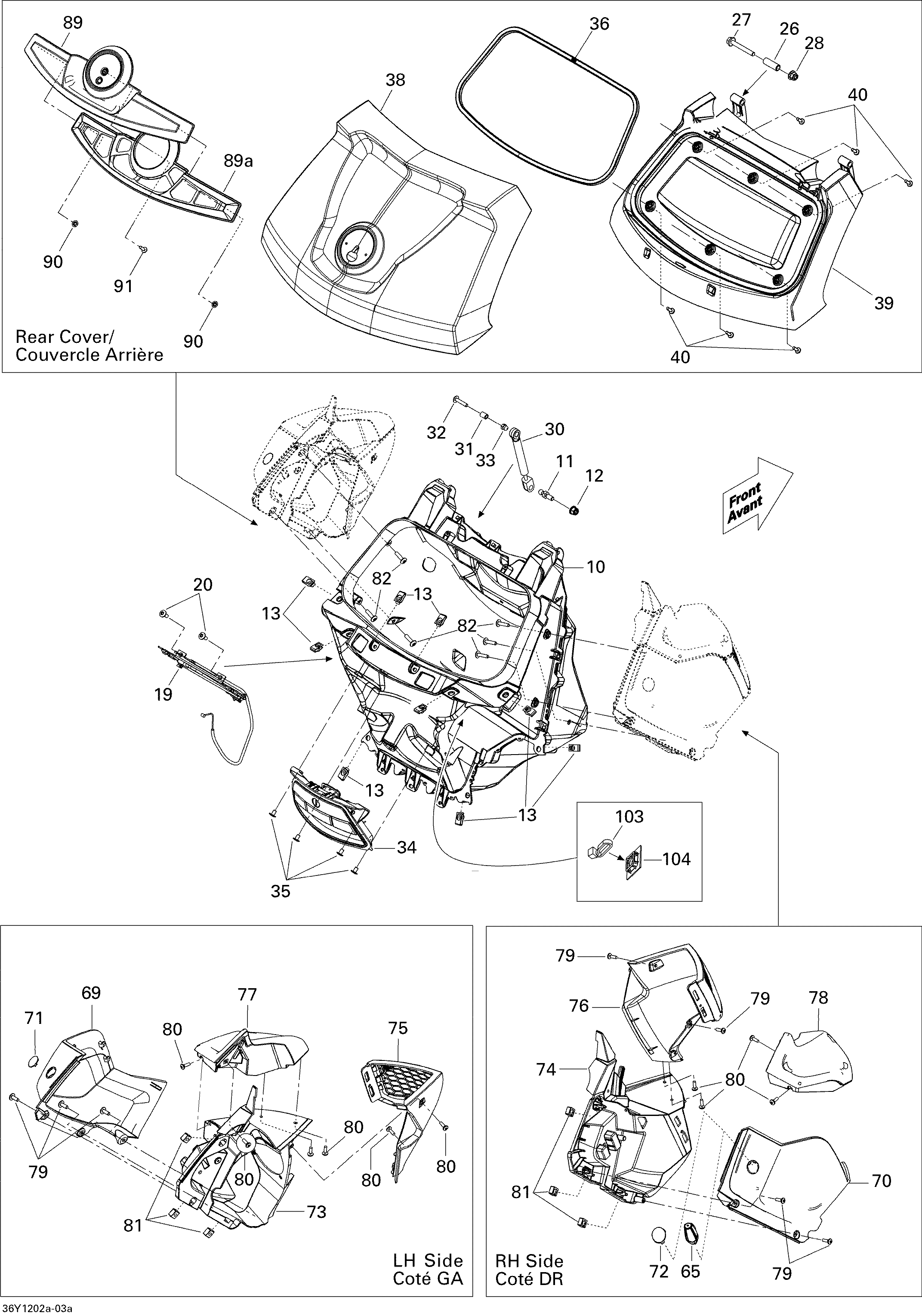

09- Luggages Rear для BRP Spyder RT SM5 - 2012
-
№АртикулНазвание
-
10708300044 Storage Ass'yStorage Ass'y
-
11250300039 Ball Head StudBall Head Stud
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
19708300814 Center LatchCenter Latch
-
20250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
26708300394 SpacerSpacer
-
27207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
28233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
30708300383 Gaz ShockGaz Shock
-
31708300384 SpacerSpacer
-
32250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
33232361493 Domed Nut M6Domed Nut M6
-
34708300546 Main ControlMain Control
-
35250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
36293830151 SealSeal
-
38708300697 Central Cover, Blue. RT A&C Model, BlueCentral Cover, Blue. RT A&C Model, Blue
-
38708300697 Central Cover, Blue. RT Techno Europe Model, BlueCentral Cover, Blue. RT Techno Europe Model, Blue
-
38708300698 Central Cover, Blue. RT-S, Blue ModelCentral Cover, Blue. RT-S, Blue Model
-
38708300701 Central Cover, Red. RT-S, Red ModelCentral Cover, Red. RT-S, Red Model
-
38708300689 Central Cover, Magnesium. RT, Magnesium ModelCentral Cover, Magnesium. RT, Magnesium Model
-
38708300699 Central Cover, Magnesium. RT-S, Magnesium ModelCentral Cover, Magnesium. RT-S, Magnesium Model
-
39708300678 Inner CoverInner Cover
-
40250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
65708300156 RH Radio Antena Base. Except RT STDRH Radio Antena Base. Except RT STD
-
69708300704 LH Arm Cover, Blue. Blue ModelLH Arm Cover, Blue. Blue Model
-
69708300710 LH Arm Cover, Red. Red ModelLH Arm Cover, Red. Red Model
-
69708300706 LH Arm Cover, Magnesium. Magnesium ModelLH Arm Cover, Magnesium. Magnesium Model
-
70708300705 RH Arm Cover, Blue. Blue ModelRH Arm Cover, Blue. Blue Model
-
70708300711 RH Arm Cover, Red. Red ModelRH Arm Cover, Red. Red Model
-
70708300707 RH Arm Cover, Magnesium. Magnesium ModelRH Arm Cover, Magnesium. Magnesium Model
-
71708300712 LH Cap, Blue. Blue ModelLH Cap, Blue. Blue Model
-
71708300714 LH Cap, Magnesium. Magnesium ModelLH Cap, Magnesium. Magnesium Model
-
71708300717 LH Cap, Red. Red ModelLH Cap, Red. Red Model
-
72708300715 RH Cap, Magnesium. RT STD, Magnesium ModelRH Cap, Magnesium. RT STD, Magnesium Model
-
73708300036 LH Sound BoxLH Sound Box
-
74708300037 RH Sound BoxRH Sound Box
-
75708300381 LH Grill Ass'yLH Grill Ass'y
-
76708300382 RH Grill Ass'yRH Grill Ass'y
-
77708000614 LH Arm RestLH Arm Rest
-
78708000615 RH Arm RestRH Arm Rest
-
79250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
80250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
81269500725 Nut Housing Ass'yNut Housing Ass'y
-
82250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
89708300064 Moulding. RT-SMoulding. RT-S
-
89a708300652 Moulding. RT-SMoulding. RT-S
-
90732610072 Push Nut. RT-SPush Nut. RT-S
-
91250000146 Truss Head Torx Screw K50 X 16. RT-STruss Head Torx Screw K50 X 16. RT-S
-
103293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
104293750040 Tie-rap MountTie-rap Mount
