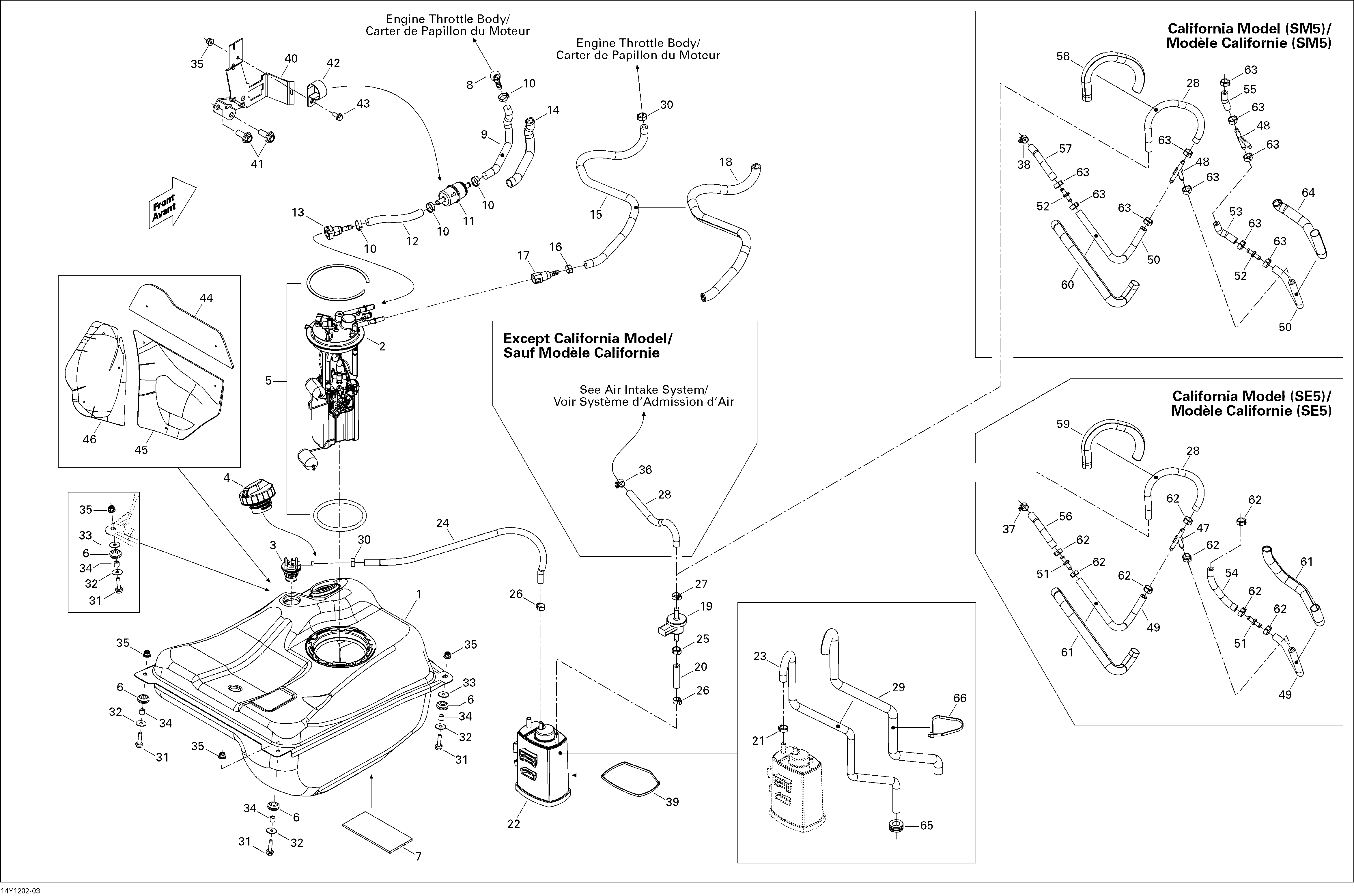

02- Fuel System California Model SM5 для BRP Spyder RT SM5 - 2012
-
№АртикулНазвание
-
1709000314 Fuel TankFuel Tank
-
2709000088 Pump ModulePump Module
-
3709000127 Rollover ValveRollover Valve
-
4709000414 Fuel CapFuel Cap
-
5709000203 Retainer KitRetainer Kit
-
6293720053 GrommetGrommet
-
7709000130 CarpetCarpet
-
8709000137 Banjo FittingBanjo Fitting
-
9709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
10293650125 Oetiker ClampOetiker Clamp
-
11709000100 Fuel FilterFuel Filter
-
12709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
13709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
14415080000 Tubing 16 mmTubing 16 mm
-
15709000266 Fuel Line 6.4 mm, MeterFuel Line 6.4 mm, Meter
-
16293650046 Oetiker ClampOetiker Clamp
-
17709000141 Quick FittingQuick Fitting
-
18513033412 TubingTubing
-
19709000108 Purge ValvePurge Valve
-
20709000254 HoseHose
-
21293650047 Crimp ClampCrimp Clamp
-
22709000090 Fuel Evaporative Emissions CanisterFuel Evaporative Emissions Canister
-
23709000277 Evaporative Emissions Canister Vent HoseEvaporative Emissions Canister Vent Hose
-
24513033565 HoseHose
-
25293650047 Crimp ClampCrimp Clamp
-
26293650025 Oetiker Gear ClampOetiker Gear Clamp
-
27293650047 Crimp ClampCrimp Clamp
-
28709000253 HoseHose
-
29513033412 TubingTubing
-
30293650025 Oetiker Gear ClampOetiker Gear Clamp
-
31207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
32224060201 Flat WasherFlat Washer
-
33224060201 Flat WasherFlat Washer
-
34709000162 BushingBushing
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38414415200 Universal Spring ClampUniversal Spring Clamp
-
39293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40709000150 SupportSupport
-
41207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
42513033047 Open ClampOpen Clamp
-
43207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
44709000157 Reflective SheetReflective Sheet
-
45709000158 Reflective SheetReflective Sheet
-
46709000159 Reflective SheetReflective Sheet
-
48293710059 Y-FittingY-Fitting
-
50513033565 HoseHose
-
52709000430 Flow ReducerFlow Reducer
-
53513033565 HoseHose
-
55513033565 HoseHose
-
57513033565 HoseHose
-
58415080000 Tubing 16 mmTubing 16 mm
-
60415080000 Tubing 16 mmTubing 16 mm
-
63293650025 Oetiker Gear ClampOetiker Gear Clamp
-
64415080000 Tubing 16 mmTubing 16 mm
-
65293720087 GrommetGrommet
-
66414115200 Tie-Rap 180 mmTie-Rap 180 mm
