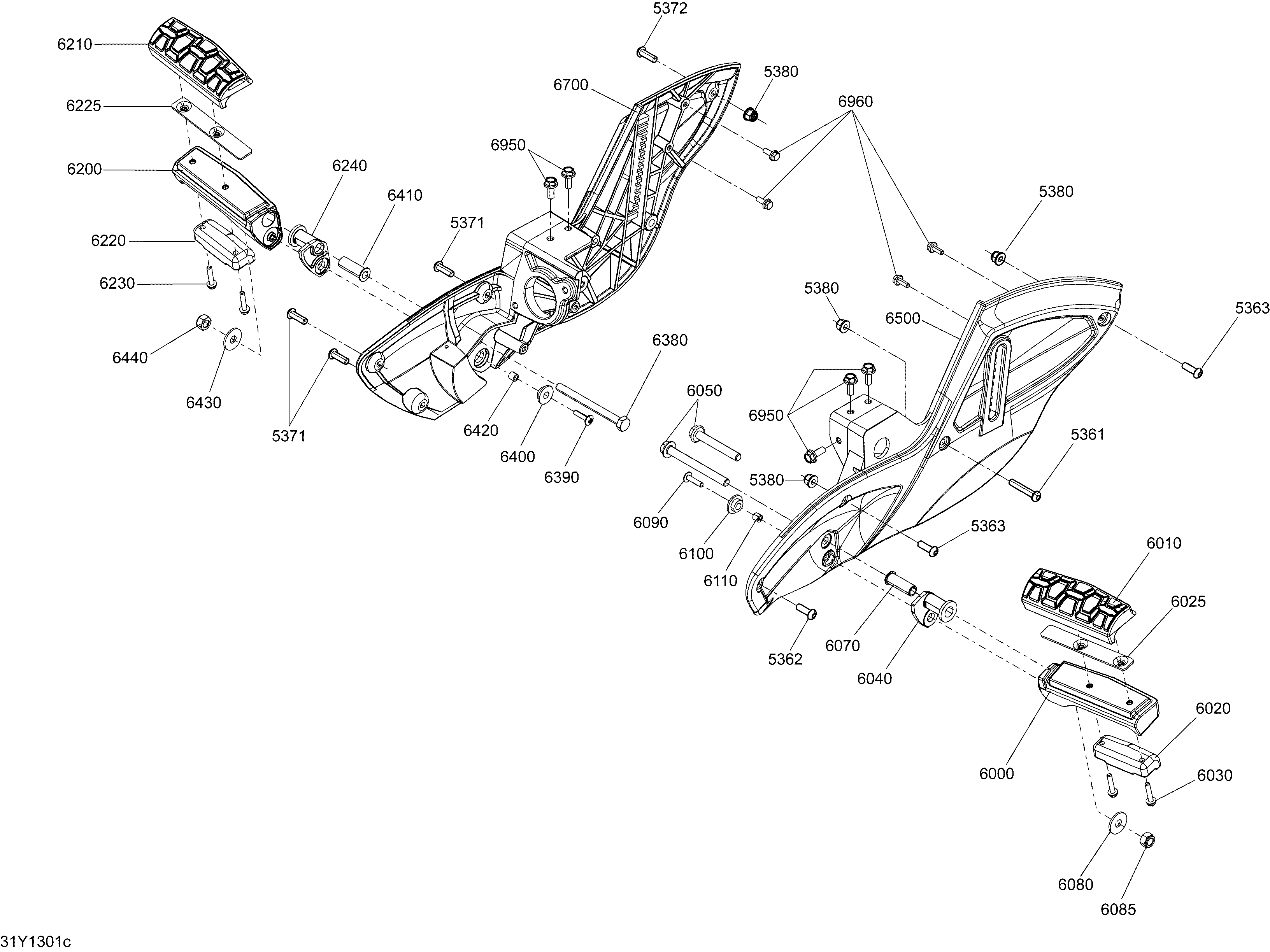

09- Body And Accessories Footrest_RT для BRP Spyder RT_RTS SE5 - 2013
-
№АртикулНазвание
-
5361205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
5362205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5363205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5371205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5372205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5380233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6000705004709 LH Front Footrest, SilverLH Front Footrest, Silver
-
6010705003732 LH Front Footrest PadLH Front Footrest Pad
-
6020705003730 Vibration DampenerVibration Dampener
-
6025705003731 Front Pad PlateFront Pad Plate
-
6030210263080 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6040705003616 LH Rubber BushingLH Rubber Bushing
-
6050230500046 Hex. Screw M10 X 100, Scotch Grip. SM5 ModelHex. Screw M10 X 100, Scotch Grip. SM5 Model
-
6050207507046 Hex. Screw M10 X 70, Scotch Grip. SE5 ModelHex. Screw M10 X 70, Scotch Grip. SE5 Model
-
6070706201151 Inner BushingInner Bushing
-
6080234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6085232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6090250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6100705003932 GrommetGrommet
-
6110709000162 BushingBushing
-
6200705004711 RH Front Footrest, SilverRH Front Footrest, Silver
-
6210705003245 RH Front Footrest PadRH Front Footrest Pad
-
6220705003730 Vibration DampenerVibration Dampener
-
6225705003731 Front Pad PlateFront Pad Plate
-
6230210263080 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6240705003615 RH Rubber BushingRH Rubber Bushing
-
6380230001586 Hex. Screw M10 X 115Hex. Screw M10 X 115
-
6390250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6400705003932 GrommetGrommet
-
6410706201151 Inner BushingInner Bushing
-
6420709000162 BushingBushing
-
6430234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6440232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6500705005737 LH Footrest SupportLH Footrest Support
-
6700705005734 RH Footrest SupportRH Footrest Support
-
6950207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
6960207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
