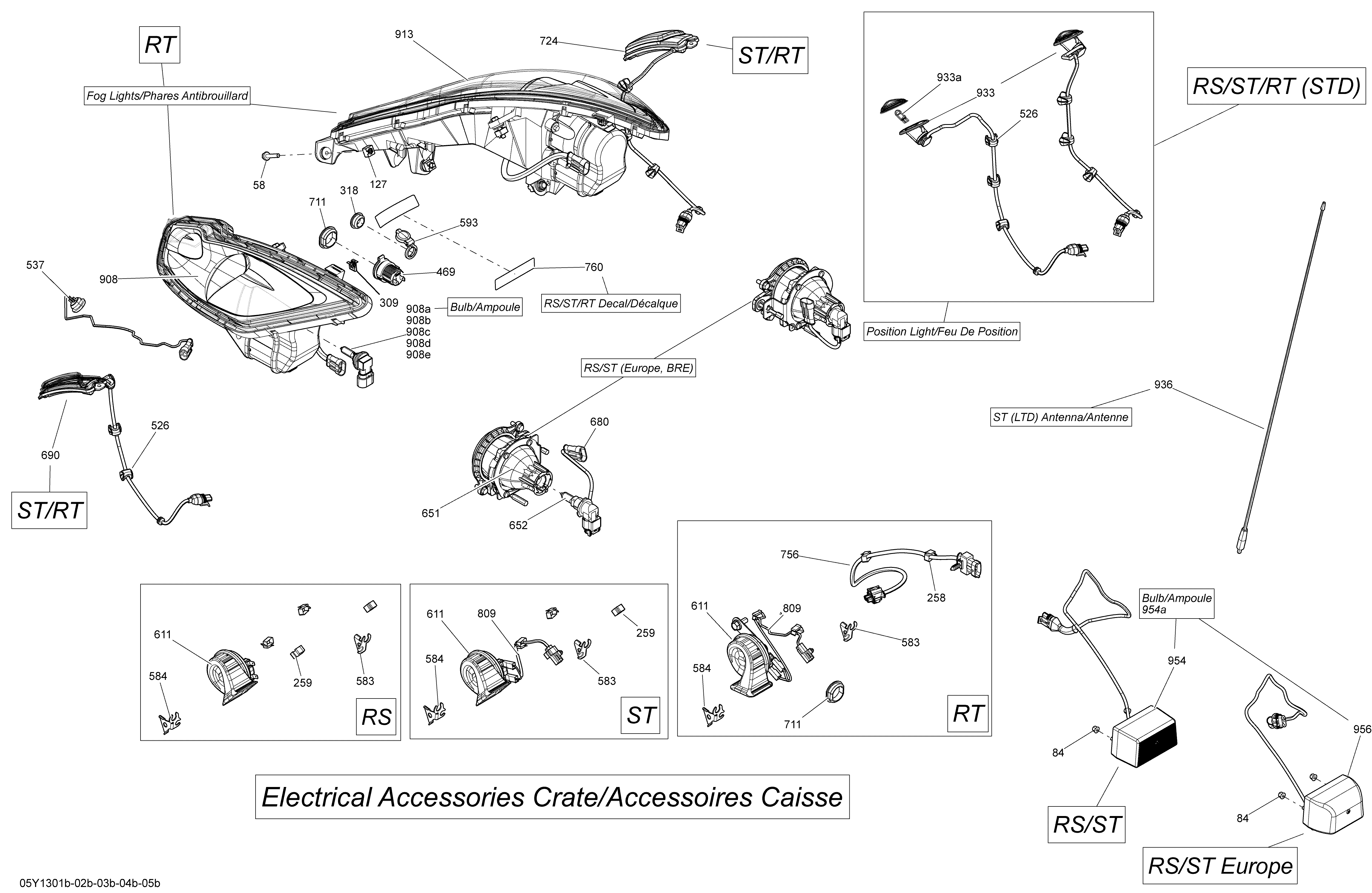

10- Electrical Accessories Crate Lighting для BRP Spyder RT_RTS SE5 - 2013
-
№АртикулНазвание
-
58207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
127269500725 Nut Housing Ass'yNut Housing Ass'y
-
258414227300 ClipClip
-
259414227300 ClipClip
-
309517302785 ClipClip
-
318705003464 CapCap
-
526710001452 Wire BracketWire Bracket
-
537710001533 Trunk LightTrunk Light
-
583710002018 RH Wire SupportRH Wire Support
-
584710002019 LH Wire SupportLH Wire Support
-
611710002318 HornHorn
-
652415129249 Halogen BulbHalogen Bulb
-
690710002691 LH Position Light. RS-S, ST, RTLH Position Light. RS-S, ST, RT
-
690710003295 Position Light. RT STD, RS STD, STPosition Light. RT STD, RS STD, ST
-
711710002858 Rubber PlugRubber Plug
-
724710002897 RH Position Light. RS-S, ST, RTRH Position Light. RS-S, ST, RT
-
724710003295 Position Light. RT STD, RS STD, STPosition Light. RT STD, RS STD, ST
-
756710003032 AAPTS HarnessAAPTS Harness
-
760710003077 R/L Label DecalR/L Label Decal
-
908710003256 LH Fog Light. RTLH Fog Light. RT
-
908710003259 LH Low Beam Ass.. RT Int'l, EuropeLH Low Beam Ass.. RT Int'l, Europe
-
913710003257 RH Fog Light. RTRH Fog Light. RT
-
913710003258 RH Low Beam Ass.. RT Int'l, EuropeRH Low Beam Ass.. RT Int'l, Europe
-
933710002691 LH Position Light. RS-SLH Position Light. RS-S
-
933710002897 RH Position Light. RT-S, RT-LTDRH Position Light. RT-S, RT-LTD
-
936710002740 Antenna. RTAntenna. RT
-
908a219800149 Halogen Bulb H8 12V 35W. RT-SHalogen Bulb H8 12V 35W. RT-S
-
908a219800136 Halogen Bulb HB3 65W. RT EuropeHalogen Bulb HB3 65W. RT Europe
-
908b219800174 Cover With Gasket. RTCover With Gasket. RT
-
908c219800101 Rubber Ventilation. RT-SRubber Ventilation. RT-S
-
908c219800110 Chromed Screw 4X13. RT EuropeChromed Screw 4X13. RT Europe
-
908d219800100 Antivibration. RT-SAntivibration. RT-S
-
908d219800105 Adjustement Cable. RT EuropeAdjustement Cable. RT Europe
-
908e219800101 Rubber Ventilation. RT EuropeRubber Ventilation. RT Europe
-
933a410922994 Bulb 5W.Bulb 5W.
-
954a415129261 BulbBulb
