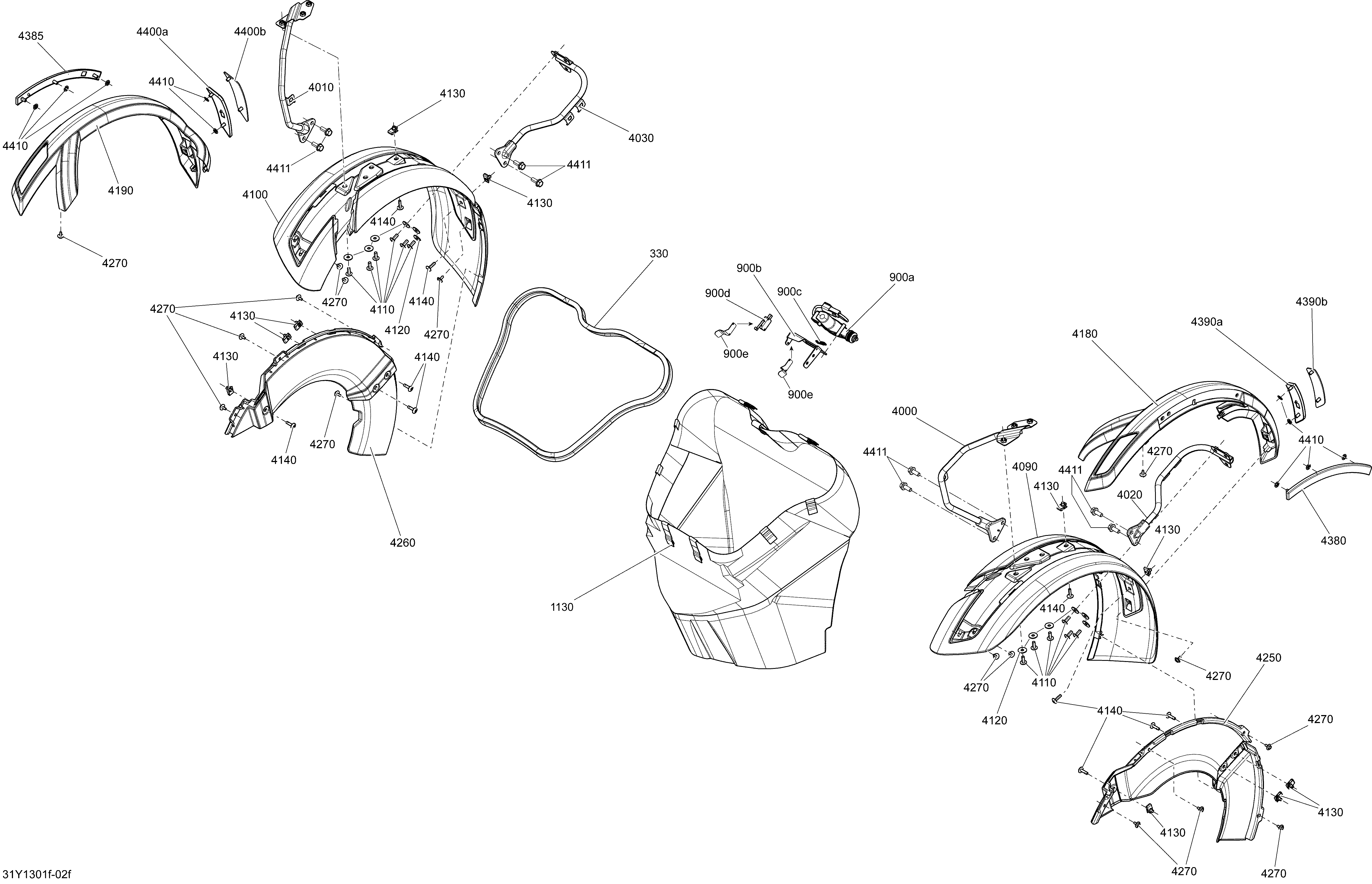

09- Body And Accessories Front Fender_RT-S для BRP Spyder RT_RTS SE5 - 2013
-
№АртикулНазвание
-
330293250047 Neoprene SealNeoprene Seal
-
900a710001554 ActuatorActuator
-
900b705003691 Actuator BracketActuator Bracket
-
900c705003692 SpringSpring
-
900d710001861 Position SensorPosition Sensor
-
900e705005845 Switch Protector PlateSwitch Protector Plate
-
1130708300623 Front Trunk LinerFront Trunk Liner
-
4000705005265 LH Painted Fender Front SupportLH Painted Fender Front Support
-
4010705005264 RH Painted Fender Front SupportRH Painted Fender Front Support
-
4020705007331 LH Painted Fender Rear SupportLH Painted Fender Rear Support
-
4030705007332 RH Painted Fender Rear SupportRH Painted Fender Rear Support
-
4090705006500 LH Front Fender, Metallic Magnesium. Magnesium ModelLH Front Fender, Metallic Magnesium. Magnesium Model
-
4090705006502 LH Front Fender, Blue Quantique Met. Blue ModelLH Front Fender, Blue Quantique Met. Blue Model
-
4090705006504 LH Front Fender, Yellow. Yellow ModelLH Front Fender, Yellow. Yellow Model
-
4090705007215 LH Front Fender, Viper Red. Red ModelLH Front Fender, Viper Red. Red Model
-
4100705006501 RH Front Fender, Metallic Magnesium. Magnesium ModelRH Front Fender, Metallic Magnesium. Magnesium Model
-
4100705006503 RH Front Fender, Blue Quantique Met. Blue ModelRH Front Fender, Blue Quantique Met. Blue Model
-
4100705006505 RH Front Fender, Yellow. Yellow ModelRH Front Fender, Yellow. Yellow Model
-
4100705007216 RH Front Fender, Viper Red. Red ModelRH Front Fender, Viper Red. Red Model
-
4110250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
4120391302000 Flat WasherFlat Washer
-
4130250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4140250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
4180705006513 LH Front Fender Moulding, Magnesium. Magnesium ModelLH Front Fender Moulding, Magnesium. Magnesium Model
-
4180705006515 LH Front Fender Moulding, Blue. Blue ModelLH Front Fender Moulding, Blue. Blue Model
-
4180705006516 LH Front Fender Moulding, Yellow. Yellow ModelLH Front Fender Moulding, Yellow. Yellow Model
-
4180705007217 LH Front Fender Moulding, Viper Red. Red ModelLH Front Fender Moulding, Viper Red. Red Model
-
4190705006514 RH Front Fender Moulding, Magnesium. Magnesium ModelRH Front Fender Moulding, Magnesium. Magnesium Model
-
4190705006517 RH Front Fender Moulding, Yellow. Yellow ModelRH Front Fender Moulding, Yellow. Yellow Model
-
4190705006528 RH Front Fender Moulding, Blue. Blue ModelRH Front Fender Moulding, Blue. Blue Model
-
4190705007218 RH Front Fender Moulding, Viper Red. Red ModelRH Front Fender Moulding, Viper Red. Red Model
-
4250705005421 LH Inner Front FenderLH Inner Front Fender
-
4260705005422 RH Inner Front FenderRH Inner Front Fender
-
4270250000585 Plastite Screw K-40 M4 X 10Plastite Screw K-40 M4 X 10
-
4380705005625 LH Reflector, YellowLH Reflector, Yellow
-
4385705005976 RH Reflector, YellowRH Reflector, Yellow
-
4390a705005667 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
4390b219800275 LH Rear Reflector Ass'y. Europe, Australia, BrazilLH Rear Reflector Ass'y. Europe, Australia, Brazil
-
4400a705005949 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
4400b219800276 RH Rear Reflector Ass'y. Europe, Australia, BrazilRH Rear Reflector Ass'y. Europe, Australia, Brazil
-
4410250100163 Pressure NutPressure Nut
-
4411207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
