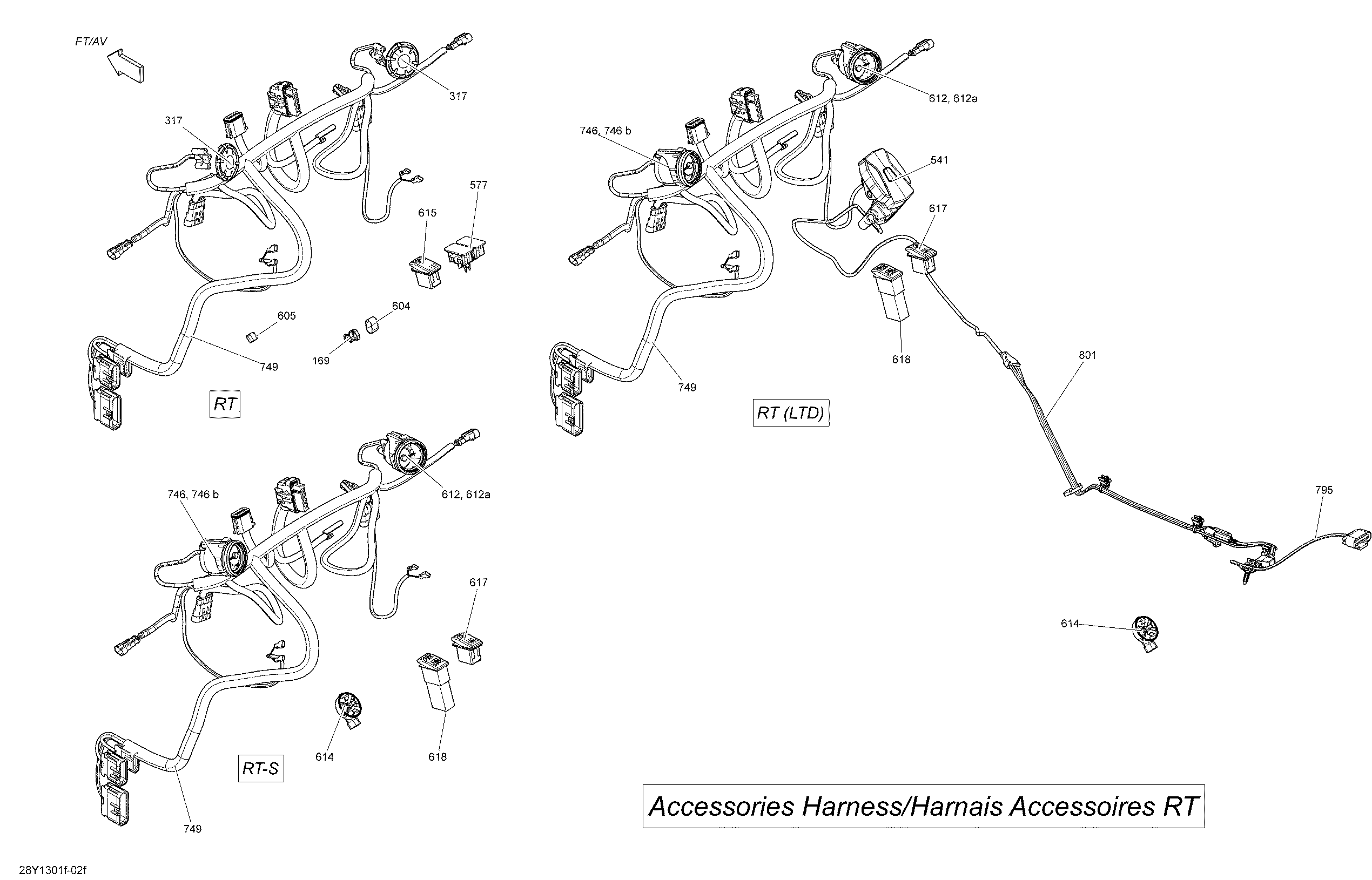

10- Electrical Harness Fuel Gage для BRP Spyder RT_RTS SE5 - 2013
-
№АртикулНазвание
-
169293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
317705003421 Gauge Cap. RT-STDGauge Cap. RT-STD
-
577710001999 Plug Carling. RT-STD, RT-S EuropePlug Carling. RT-STD, RT-S Europe
-
577710002351 Beam Switch. RT-S North AmericaBeam Switch. RT-S North America
-
604710002211 Rubber Plug, 24.2 X 11.4 mm. RT-STDRubber Plug, 24.2 X 11.4 mm. RT-STD
-
605710002212 Rubber Plug, 16.65 X 5.35 mm. RT-STDRubber Plug, 16.65 X 5.35 mm. RT-STD
-
612710002340 Temperature Gauge. RT-S. Before February 9, 2013Temperature Gauge. RT-S. Before February 9, 2013
-
612710003585 Temperature Gauge. RT-S. February 9 And UpTemperature Gauge. RT-S. February 9 And Up
-
612a219800181 Led Bulb. RT-SLed Bulb. RT-S
-
614710002349 LH Housing. RT-SLH Housing. RT-S
-
615710002350 Switch, Parking Brake. RT-STDSwitch, Parking Brake. RT-STD
-
617710001999 Plug Carling. RT-STDPlug Carling. RT-STD
-
617710002352 Suspension Switch. RT-SSuspension Switch. RT-S
-
618710002353 Switch, Hood/Parking Brake. RT-SSwitch, Hood/Parking Brake. RT-S
-
746710002975 Fuel Gauge. RT-SFuel Gauge. RT-S
-
746b219800181 Led Bulb. RT-SLed Bulb. RT-S
-
749710003023 Console HarnessConsole Harness
