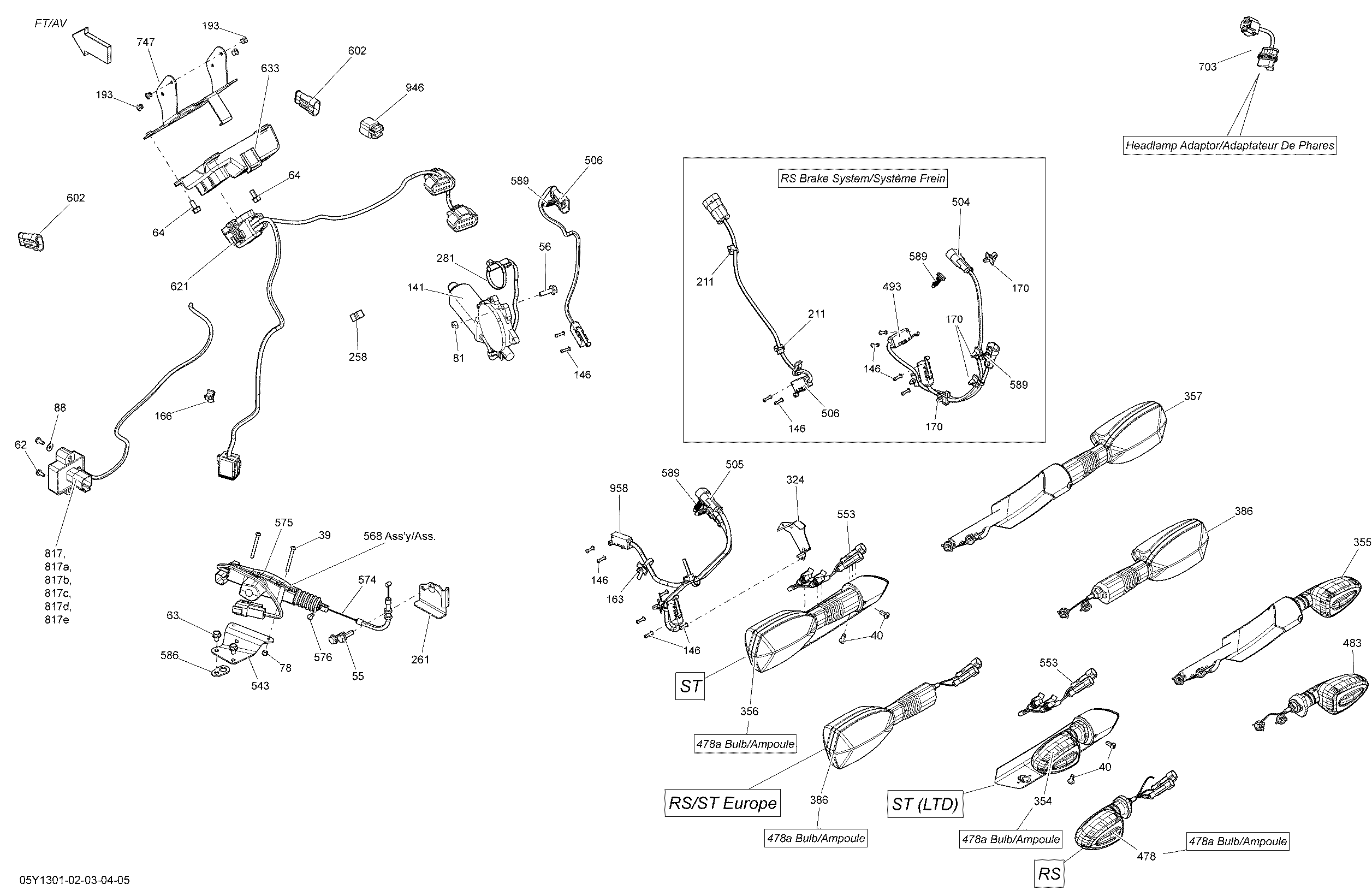

10- Electrical Accessories Rear Flasher для BRP Spyder RT_RTS SE5 - 2013
-
№АртикулНазвание
-
39205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
40708300911 Socket Screw M5 X 12Socket Screw M5 X 12
-
55207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
56207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
62210241080 Hex. Flanged Screw M4 X 10Hex. Flanged Screw M4 X 10
-
63210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
64210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
78232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
81232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
88234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
141278002579 Parking Barke/Windshield MotorParking Barke/Windshield Motor
-
146293150150 Pop RivetPop Rivet
-
163293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
166293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
170293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
193390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
211414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
258414227300 ClipClip
-
261420251565 Reverse Cable SupportReverse Cable Support
-
281293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
324705601182 DeflectorDeflector
-
493710001357 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
504710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
505710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
506710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
543710001599 Actuator SupportActuator Support
-
553710001808 Extension HarnessExtension Harness
-
568710001954 Reverse Actuator Ass'yReverse Actuator Ass'y
-
574707000636 Reverse CableReverse Cable
-
575710001554 ActuatorActuator
-
576390401600 Pop Rivet 1/8''Pop Rivet 1/8''
-
586710002024 ShimShim
-
589710002033 HolderHolder
-
602710002168 Packard Connector With PlugPackard Connector With Plug
-
621710002370 Frame SE5Frame SE5
-
633710002376 Calibrated Module TCMCalibrated Module TCM
-
747710002977 TCM Module SupportTCM Module Support
-
817710003142 Configuration ModuleConfiguration Module
-
946710003328 Plug ConnectorPlug Connector
-
958710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
478a715900043 Bulb 12V 21WBulb 12V 21W
-
817a250000674 Hex. Screw Forming M4 X 16Hex. Screw Forming M4 X 16
-
817b234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
817c211100002 Push NutPush Nut
-
817d213200016 Flat Washer, EmhartFlat Washer, Emhart
-
817e234052400 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
