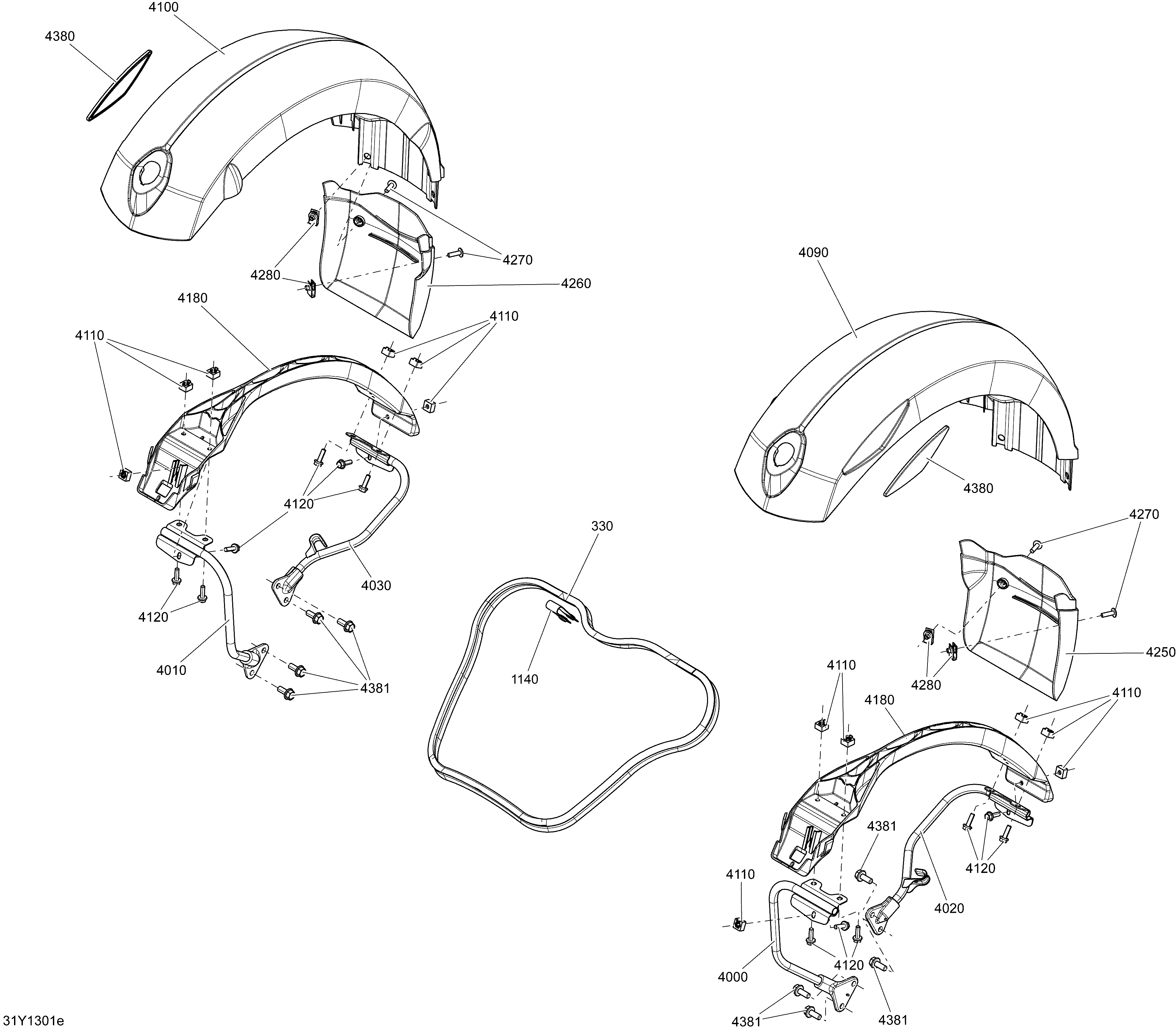

09- Body And Accessories Front Fender_RT для BRP Spyder RT_RTS SE5 - 2013
-
№АртикулНазвание
-
330293250047 Neoprene SealNeoprene Seal
-
1140705004357 Holding StrapHolding Strap
-
4000705003456 LH Fender Front SupportLH Fender Front Support
-
4010705003457 RH Fender Front SupportRH Fender Front Support
-
4020705003462 LH Fender Rear SupportLH Fender Rear Support
-
4030705003463 RH Fender Rear SupportRH Fender Rear Support
-
4090705003901 LH Front Fender, Quantum Blue. Blue ModelLH Front Fender, Quantum Blue. Blue Model
-
4090705004613 LH Front Fender, Metallic Magnesium. Magnesium ModelLH Front Fender, Metallic Magnesium. Magnesium Model
-
4100705003902 RH Front Fender, Quantum Blue. Blue ModelRH Front Fender, Quantum Blue. Blue Model
-
4100705004614 RH Front Fender, Metallic Magnesium. Magnesium ModelRH Front Fender, Metallic Magnesium. Magnesium Model
-
4110269500725 Nut Housing Ass'yNut Housing Ass'y
-
4120207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4180705002389 Central Front Fender SupportCentral Front Fender Support
-
4250705001767 LH MudguardLH Mudguard
-
4260705001768 RH MudguardRH Mudguard
-
4270250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
4280250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
4380705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
4381207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
