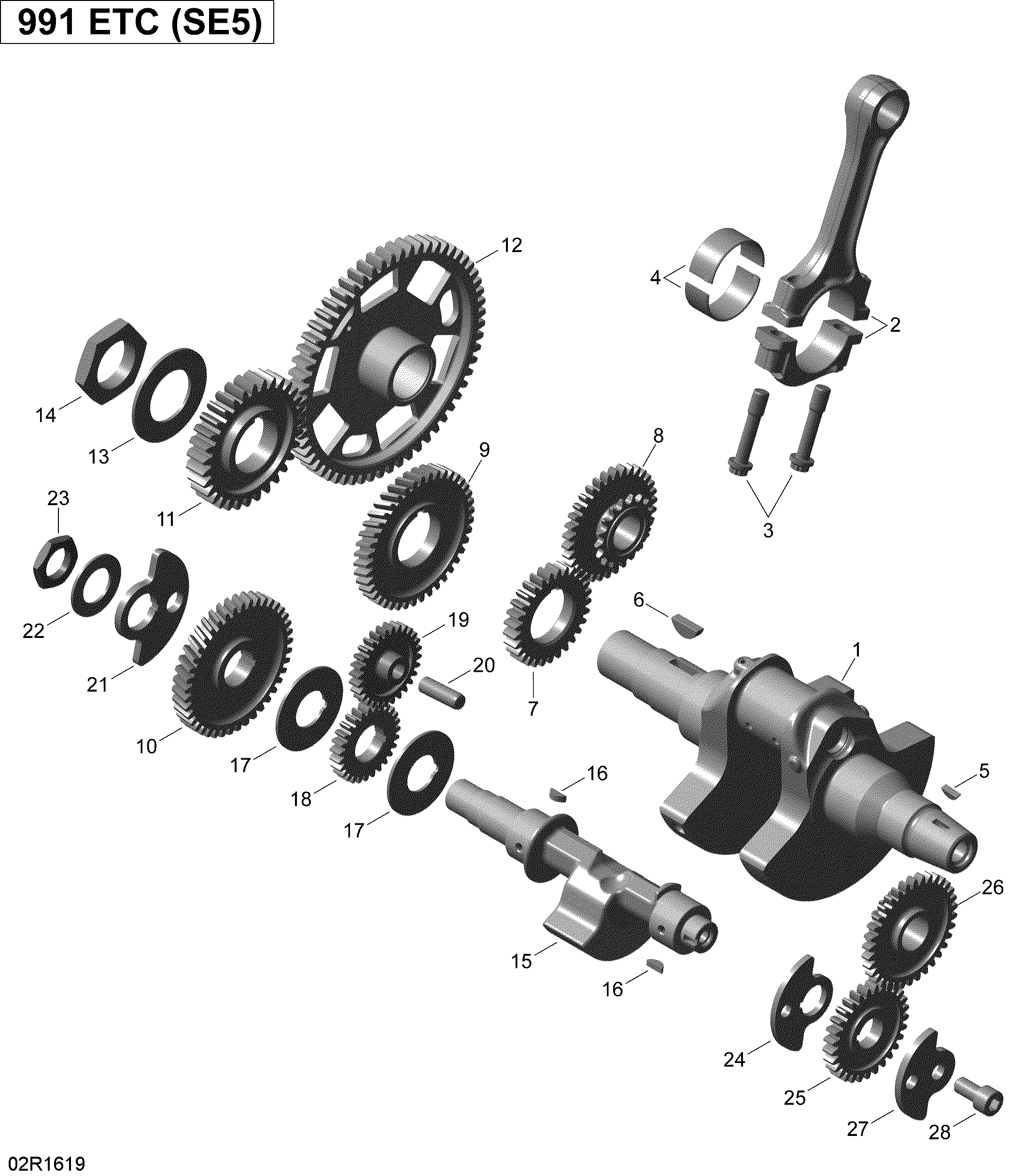

01- Crankshaft для BRP ST - 2016
-
№АртикулНазвание
-
1420890567 CrankshaftCrankshaft
-
2420217489 Connecting Rod Ass'y. Includes 2 to 3Connecting Rod Ass'y. Includes 2 to 3
-
3420640402 Screw M10 X 1Screw M10 X 1
-
4420233726 Plain BearingPlain Bearing
-
5420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
6420946015 Woodruff Key 6 X 9Woodruff Key 6 X 9
-
7420295760 Camshaft Drive Gear Ass'y. Includes 7 to 8Camshaft Drive Gear Ass'y. Includes 7 to 8
-
9420295770 Gear Balance Ass'y. Includes 9 to 10Gear Balance Ass'y. Includes 9 to 10
-
11420684815 Primary Drive Gear Ass'y. Includes 11 to 12Primary Drive Gear Ass'y. Includes 11 to 12
-
13420245840 Spring WasherSpring Washer
-
14420242940 NutNut
-
15420220374 Bottom BalancerBottom Balancer
-
16420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
17420627200 Thrust WasherThrust Washer
-
18420634611 Water Pump GearWater Pump Gear
-
19420634500 Intermediate Gear Water PumpIntermediate Gear Water Pump
-
20420929930 Pin, M6 X 50Pin, M6 X 50
-
21420219350 Mass BalancingMass Balancing
-
22420245860 Spring WasherSpring Washer
-
23420242879 NutNut
-
24420219360 Mass BalancingMass Balancing
-
25420295765 Distribution Drive Gear Ass'y. Includes 25 to 26Distribution Drive Gear Ass'y. Includes 25 to 26
-
27420219365 Mass BalancingMass Balancing
-
28420440260 Allen Screw, M10 X 20 - SM5Allen Screw, M10 X 20 - SM5
-
28420440265 Allen Screw, M10 X 20 - SE5Allen Screw, M10 X 20 - SE5
