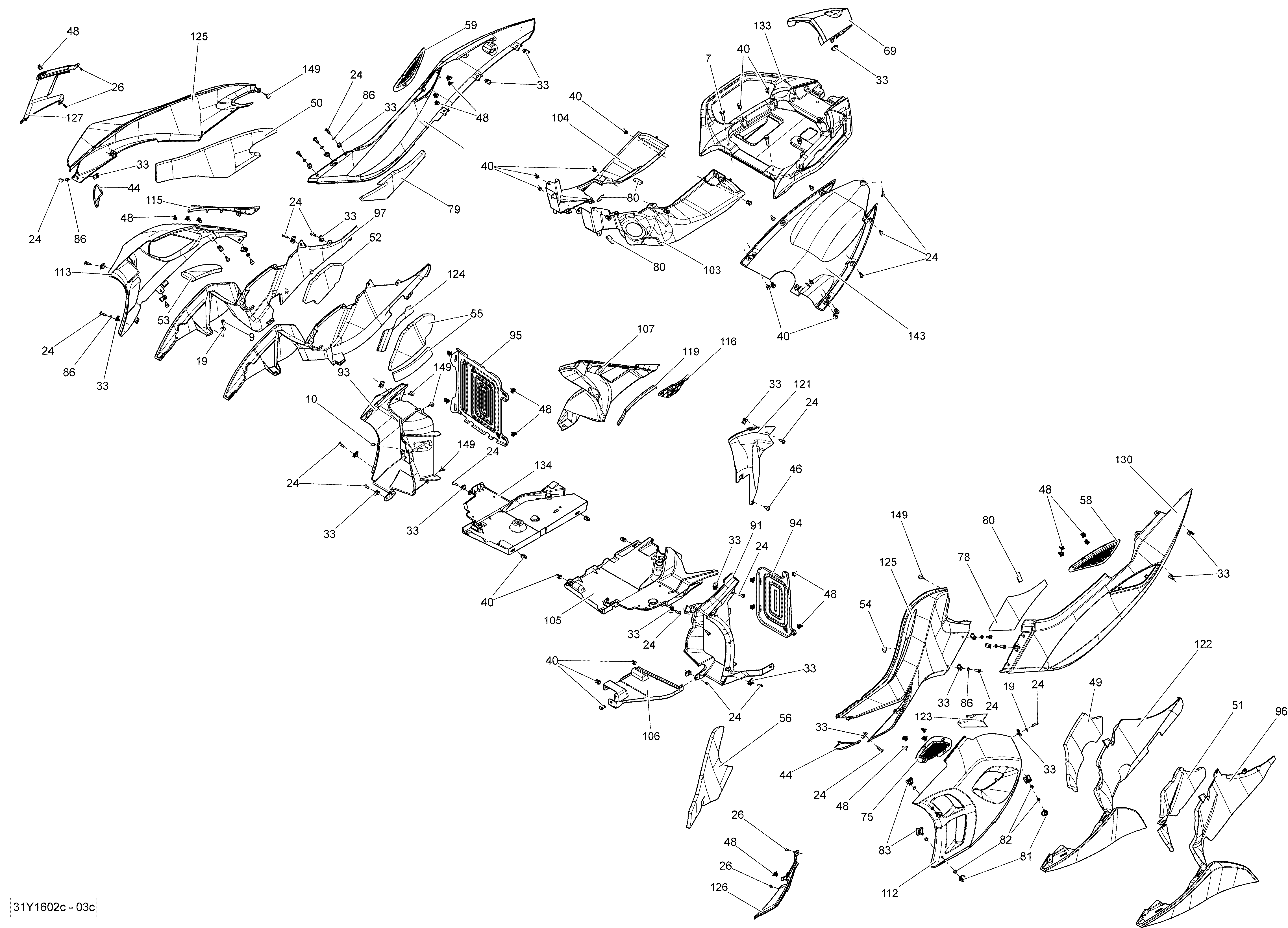

09- Body And Accessories - General для BRP ST - 2016
-
№АртикулНазвание
-
7207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
9210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
10210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
19234062670 Flat Washer, StainlessFlat Washer, Stainless
-
24250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
26250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
33250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
40293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
44293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
46414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
48517302785 ClipClip
-
49518324753 LH Rocker Panel FoamLH Rocker Panel Foam
-
50518325518 RH Upper Side Panel FoamRH Upper Side Panel Foam
-
51518327010 LH Rocker Panel FoamLH Rocker Panel Foam
-
52518327011 RH Rocker Panel FoamRH Rocker Panel Foam
-
53518327438 RH Lateral Panel FoamRH Lateral Panel Foam
-
54518327441 Lateral Console FoamLateral Console Foam
-
55518327520 RH Rocker Panel FoamRH Rocker Panel Foam
-
56518327600 LH Upper Panel FoamLH Upper Panel Foam
-
58705001542 LH Rear GrillLH Rear Grill
-
59705001544 RH Rear GrillRH Rear Grill
-
69705004657 Steel Black Rear TipSteel Black Rear Tip
-
69705010189 Red Rear TipRed Rear Tip
-
75705002369 LH Lateral GrillLH Lateral Grill
-
78705002508 LH Heat Reflective SheetLH Heat Reflective Sheet
-
79705002509 Black RH Rear Panel FoamBlack RH Rear Panel Foam
-
80293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
81705002649 Quarter Turn ScrewQuarter Turn Screw
-
82705002650 WasherWasher
-
83705002651 Quarter Turn NutQuarter Turn Nut
-
86705003207 Plastic WasherPlastic Washer
-
91705004636 LH Radiator MouldingLH Radiator Moulding
-
93705005261 RH Radiator MouldingRH Radiator Moulding
-
94705005262 LH Radiator GrillLH Radiator Grill
-
95705005263 RH Radiator GrillRH Radiator Grill
-
96705005266 LH Rocker PanelLH Rocker Panel
-
97705005267 RH Rocker PanelRH Rocker Panel
-
103705005409 LH Tank CoverLH Tank Cover
-
104705005410 RH Tank CoverRH Tank Cover
-
105705005413 LH Deflector PannelLH Deflector Pannel
-
106705005447 LH Skid PlateLH Skid Plate
-
107705005462 Heat DeflectorHeat Deflector
-
109705005749 LH Deflector PannelLH Deflector Pannel
-
112705006251 Black LH Side PanelBlack LH Side Panel
-
112705010181 Red LH Side PanelRed LH Side Panel
-
113705006242 Black RH Side PanelBlack RH Side Panel
-
113705010182 Red RH Side PanelRed RH Side Panel
-
115705006531 Upper Heat SealUpper Heat Seal
-
116705006532 Lower Heat SeatLower Heat Seat
-
119293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
120705006689 RH Rocker PanelRH Rocker Panel
-
121705006981 LH Inner Heat DeflectorLH Inner Heat Deflector
-
122705006985 LH Rocker PanelLH Rocker Panel
-
123705007029 Heat ShieldHeat Shield
-
124705007053 Heat Shield Rocker PanelHeat Shield Rocker Panel
-
125705007743 Steel Black LH Upper Side PanelSteel Black LH Upper Side Panel
-
125705007744 Steel Black RH Upper Side PanelSteel Black RH Upper Side Panel
-
125705009971 Red LH Upper Side PanelRed LH Upper Side Panel
-
125705009972 Red RH Upper Side PanelRed RH Upper Side Panel
-
126705007329 LH Upper Side PanelLH Upper Side Panel
-
127705007330 RH Upper Side PanelRH Upper Side Panel
-
130705008908 Steel Black Met LH Rear PanelSteel Black Met LH Rear Panel
-
130705008909 Steel Black Met RH Rear PanelSteel Black Met RH Rear Panel
-
130705009973 Red LH Rear PanelRed LH Rear Panel
-
130705009974 Red RH Rear PanelRed RH Rear Panel
-
133705009315 Passenger HandlePassenger Handle
-
134705009351 RH Deflector PannelRH Deflector Pannel
-
143705010190 Black Under Tail CoverBlack Under Tail Cover
-
149708000759 Rubber StopperRubber Stopper
