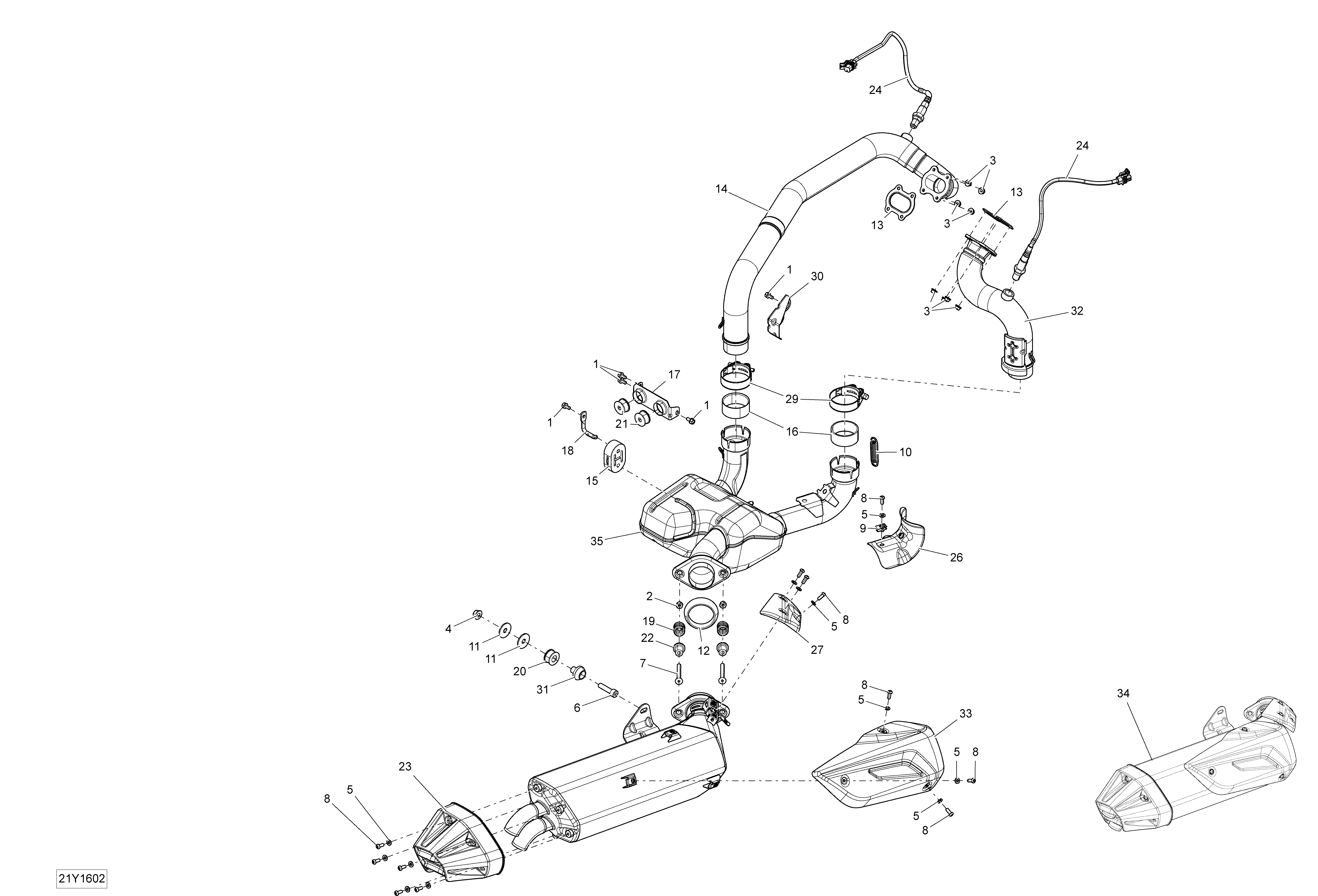

01- Exhaust System для BRP ST - 2016
-
№АртикулНазвание
-
1210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
2232581600 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
3233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
4233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
5234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5234061670 Flat Washer 6 mmFlat Washer 6 mm
-
6244004060 Hex. Screw M10 X 40, Scotch GripHex. Screw M10 X 40, Scotch Grip
-
7250000404 Socket Screw, M8 X 75Socket Screw, M8 X 75
-
8250000437 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
8250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10415107100 SpringSpring
-
11506150000 Washer 10 mmWasher 10 mm
-
12514053677 Exhaust GasketExhaust Gasket
-
13707600296 SealSeal
-
14707600634 Front Exhaust Tuned PipeFront Exhaust Tuned Pipe
-
15707600638 Rubber BumperRubber Bumper
-
16707600650 Pipe Slip JointPipe Slip Joint
-
17707600661 Front BracketFront Bracket
-
18707600666 Retaining RodRetaining Rod
-
19707600682 SpringSpring
-
20707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
21707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
22707600750 BushingBushing
-
23707601048 Carbon Black Muffler End CapCarbon Black Muffler End Cap
-
24707600872 Oxygen SensorOxygen Sensor
-
26707601042 Heat ShieldHeat Shield
-
27707601054 Carbon Black Heat ShieldCarbon Black Heat Shield
-
29707601249 CollarCollar
-
30707601251 DeflectorDeflector
-
31707601276 BushingBushing
-
32707601367 Rear Exhaust Tuned PipeRear Exhaust Tuned Pipe
-
33707601381 Carbon Black Heat ShieldCarbon Black Heat Shield
-
34707601706 Muffler AssyMuffler Assy
-
35707601774 Primary MuffPrimary Muff
