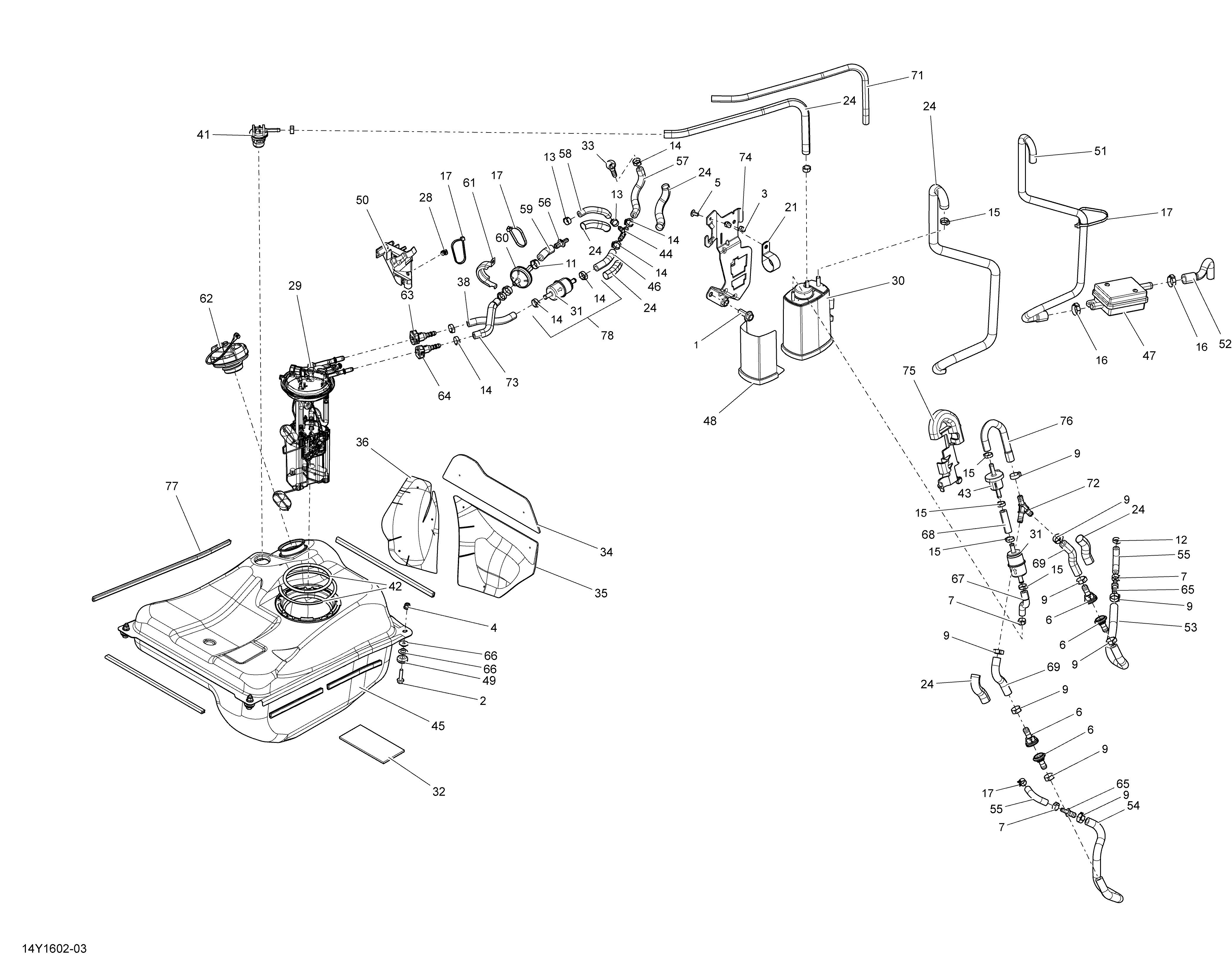

02- Fuel System для BRP ST - 2016
-
№АртикулНазвание
-
1207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3232361493 Domed Nut M6Domed Nut M6
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
6275500941 Valve-CheckValve-Check
-
7293650025 Oetiker Gear ClampOetiker Gear Clamp
-
9293650030 Oetiker ClampOetiker Clamp
-
11414415200 Spring ClampSpring Clamp
-
12293650042 Oetiker ClampOetiker Clamp
-
13293650046 Oetiker ClampOetiker Clamp
-
14293650125 Oetiker ClampOetiker Clamp
-
15293650140 Oetiker ClampOetiker Clamp
-
16293650186 Oetiker ClampOetiker Clamp
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21513033047 Open ClampOpen Clamp
-
24415080000 Tubing 16 mmTubing 16 mm
-
28518321954 Fastener PanelFastener Panel
-
29709000088 Pump ModulePump Module
-
30709000090 Vapor CanisterVapor Canister
-
31709000100 Fuel FilterFuel Filter
-
32709000130 CarpetCarpet
-
33709000137 Banjo FittingBanjo Fitting
-
34709000157 Reflective SheetReflective Sheet
-
35709000158 Reflective SheetReflective Sheet
-
36709000159 Reflective SheetReflective Sheet
-
38709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
41709000413 ROPS (roll-over protection structure)ROPS (roll-over protection structure)
-
42219800248 Seal KitSeal Kit
-
43709000443 Bleed ValveBleed Valve
-
44709000453 Y FittingY Fitting
-
45219800298 Fuel TankFuel Tank
-
46709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
47709000524 Air FilterAir Filter
-
48709000564 Reflective SheetReflective Sheet
-
49709000582 GrommetGrommet
-
50709000612 Hose SupportHose Support
-
51709000614 Formed HoseFormed Hose
-
52709000616 Formed HoseFormed Hose
-
53709000619 Formed HoseFormed Hose
-
54709000621 Formed HoseFormed Hose
-
55709000670 Formed HoseFormed Hose
-
56709000671 ConnectorConnector
-
57709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
58709000445 HoseHose
-
59709000797 HoseHose
-
60709000678 Fuel Pressure RegulatorFuel Pressure Regulator
-
61709000680 Regulator SupportRegulator Support
-
62709000683 Gaz CapGaz Cap
-
63709000684 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
64709000686 Quick FittingQuick Fitting
-
65709000705 Flow ReducerFlow Reducer
-
66709000716 BushingBushing
-
67709000730 HoseHose
-
68709000666 HoseHose
-
69709000740 Formed HoseFormed Hose
-
71709000667 HoseHose
-
72709000750 ConnectorConnector
-
73709000760 HoseHose
-
74709000761 Fuel Filter SupportFuel Filter Support
-
75709000762 Hose SupportHose Support
-
76709000763 HoseHose
-
77271001530 TrimTrim
-
78219800056 Fuel Filter Ass'yFuel Filter Ass'y
