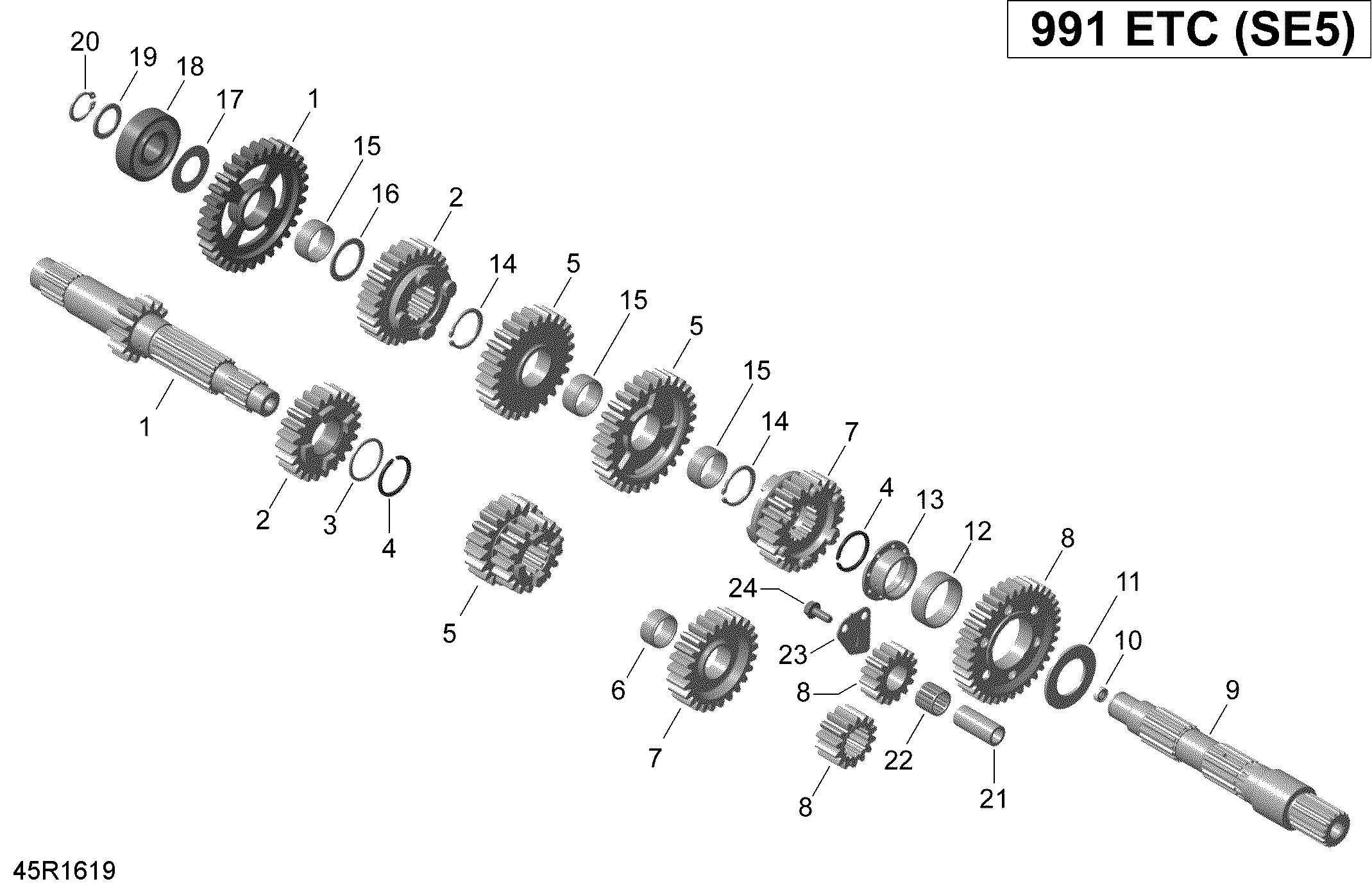

05- Gear Box для BRP ST - 2016
-
№АртикулНазвание
-
1420481035 Gear Set 1rst Speed - SE5. Speed (1)Gear Set 1rst Speed - SE5. Speed (1)
-
1420481030 Gear Set 1rst Speed - SM5. Speed (1)Gear Set 1rst Speed - SM5. Speed (1)
-
2420481045 Gear Set. Speed (4)Gear Set. Speed (4)
-
3420627120 Thrust WasherThrust Washer
-
4420245815 Snap Ring - SM5Snap Ring - SM5
-
4420245817 Snap Ring - SE5Snap Ring - SE5
-
5420481040 Gear Set. Speed (2-3)Gear Set. Speed (2-3)
-
6420232530 Needle BearingNeedle Bearing
-
7420481050 Gear Set. Speed (5)Gear Set. Speed (5)
-
8420481055 Gear Set. Reverse (R)Gear Set. Reverse (R)
-
9420620618 Main Shaft. Includes 9 to 10Main Shaft. Includes 9 to 10
-
10420930500 Oil SealOil Seal
-
11420626381 Thrust RingThrust Ring
-
12420632197 Needle BearingNeedle Bearing
-
13420632530 BushingBushing
-
14420845775 Retaining RingRetaining Ring
-
15420632070 Needle BearingNeedle Bearing
-
16420427106 WasherWasher
-
17420827110 ShimShim
-
18420832144 Ball BearingBall Bearing
-
19420227442 Thrust WasherThrust Washer
-
20420945665 Retaining RingRetaining Ring
-
21420229450 BoltBolt
-
22420432034 Needle CageNeedle Cage
-
23420224740 Locking TieLocking Tie
-
24420240580 Taptite Screw M6 X 16Taptite Screw M6 X 16
