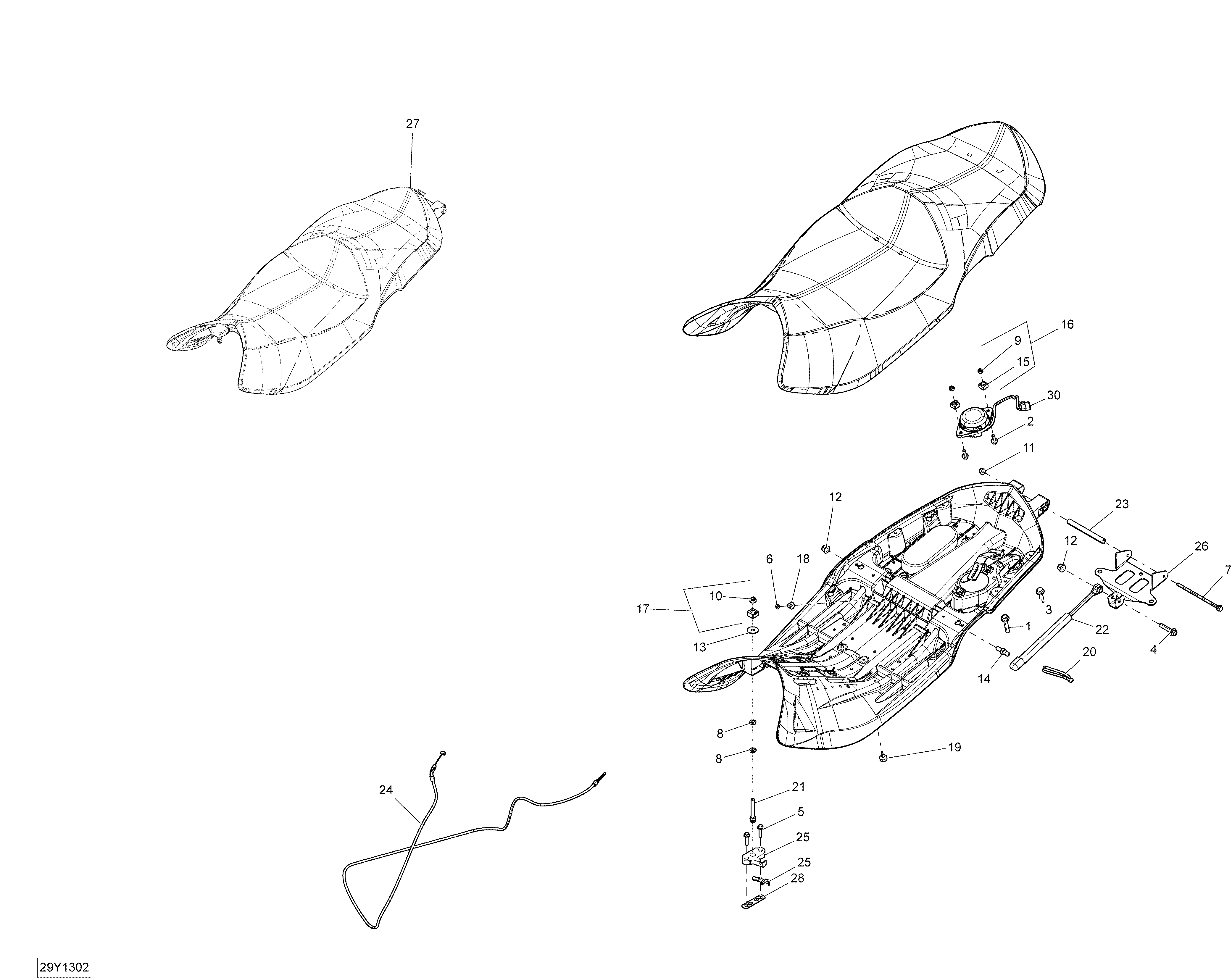

09- Seat для BRP ST - 2016
-
№АртикулНазвание
-
1207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
4207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
6211200035 Flat WasherFlat Washer
-
7230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
8232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
9232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
10232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13234082410 Flat Washer 8 mmFlat Washer 8 mm
-
14250300039 Ball Head StudBall Head Stud
-
15269500252 Nut HousingNut Housing
-
16269500725 Nut Housing Ass'yNut Housing Ass'y
-
17269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
18390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
19708000759 Rubber StopperRubber Stopper
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21705002223 LugLug
-
22708000479 Gaz ShockGaz Shock
-
23708000824 Spacer BushingSpacer Bushing
-
24708001743 Seat CableSeat Cable
-
25705007379 LatchLatch
-
26708001770 Pivot PlatePivot Plate
-
27708001938 Seat Ass'ySeat Ass'y
-
28708002000 Adjustable LatchAdjustable Latch
-
30710001346 Passenger Detection SwitchPassenger Detection Switch
