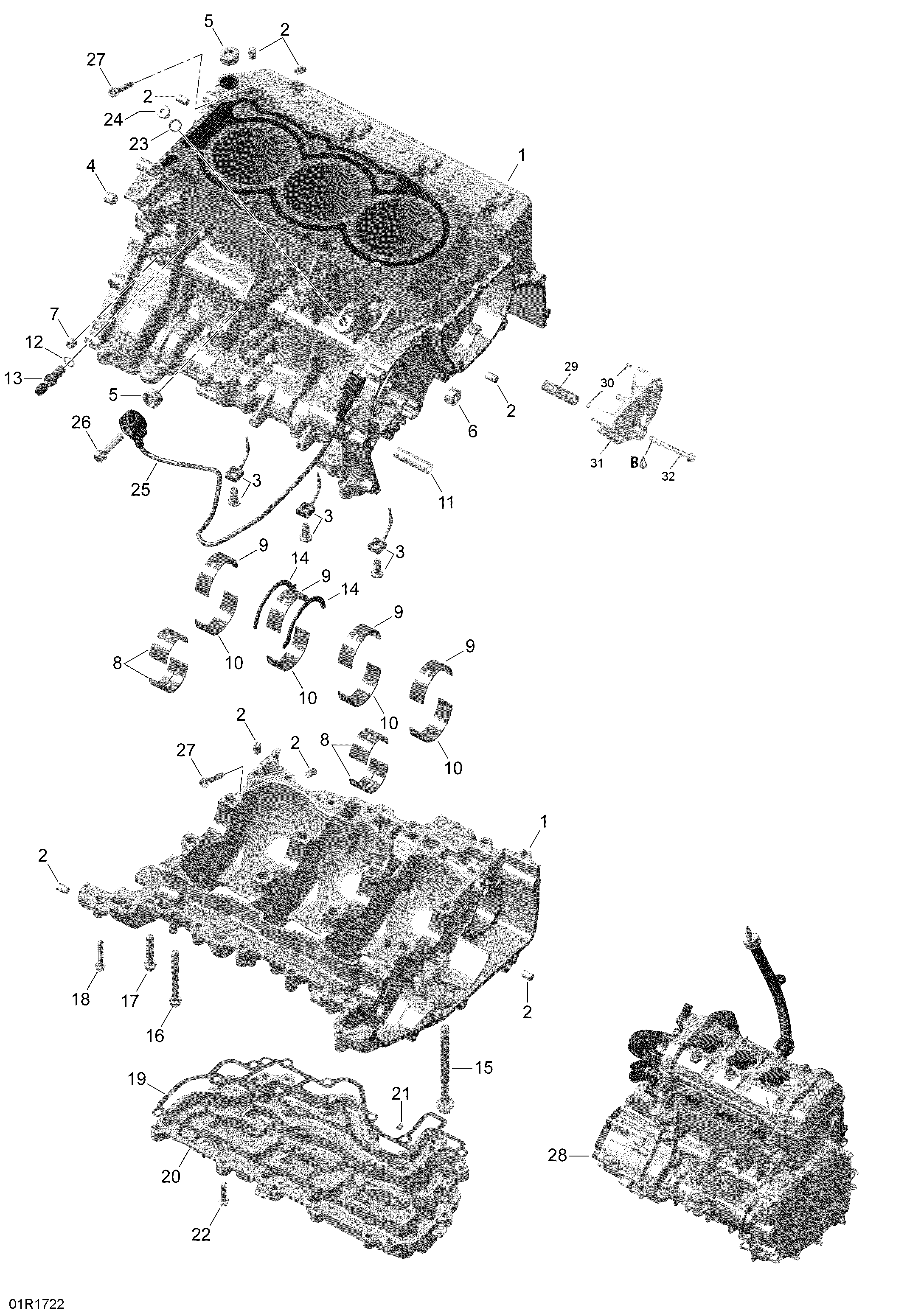

01- Crankcase - All Models для BRP RT - 2017
-
№АртикулНазвание
-
1>18420686424 Crankcase Ass'yCrankcase Ass'y
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420656972 Oil Spraying JetOil Spraying Jet
-
4420840658 Plug Screw M12x1,5Plug Screw M12x1,5
-
5420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
6420441050 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
7420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
8420933858 Plain BearingPlain Bearing
-
9420233848 Plain BearingPlain Bearing
-
10420233846 Plain BearingPlain Bearing
-
11420929075 Needle PinNeedle Pin
-
12420210260 Oil Pump CoverOil Pump Cover
-
13420210868 Bearing BracketBearing Bracket
-
14420249011 Intermediate Gear ShaftIntermediate Gear Shaft
-
15420440403 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
16420210220 Oil Pump CoverOil Pump Cover
-
17420230150 Oil SealOil Seal
-
18420441630 Bleeder Screw M10 X 1Bleeder Screw M10 X 1
-
19420933475 Half-RingHalf-Ring
-
20420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
21420441085 Flanged Torx Screw M8 x 70Flanged Torx Screw M8 x 70
-
22420440485 Flanged Torx Screw M8 x 40Flanged Torx Screw M8 x 40
-
23420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
24420250610 GasketGasket
-
25420611740 Oil SumpOil Sump
-
26420941614 Plug Screw M8 x 1Plug Screw M8 x 1
-
27420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
28420230150 Oil SealOil Seal
-
29420641733 Plug Screw M10 X 1Plug Screw M10 X 1
-
30420664031 Noise SensorNoise Sensor
-
31420440867 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
32420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
28361403111 Engine, 1330 ACE - SM6. Built Before Aug 1rst 2016Engine, 1330 ACE - SM6. Built Before Aug 1rst 2016
-
28371403111 Engine, 1330 ACE - SM6. Built Aug 1rst 2016 And UpEngine, 1330 ACE - SM6. Built Aug 1rst 2016 And Up
-
28361403211 Engine, 1330 ACE - SE6. Built Before Aug 1rst 2016Engine, 1330 ACE - SE6. Built Before Aug 1rst 2016
-
28371403211 Engine, 1330 ACE - SE6. Built Aug 1rst 2016 And UpEngine, 1330 ACE - SE6. Built Aug 1rst 2016 And Up
