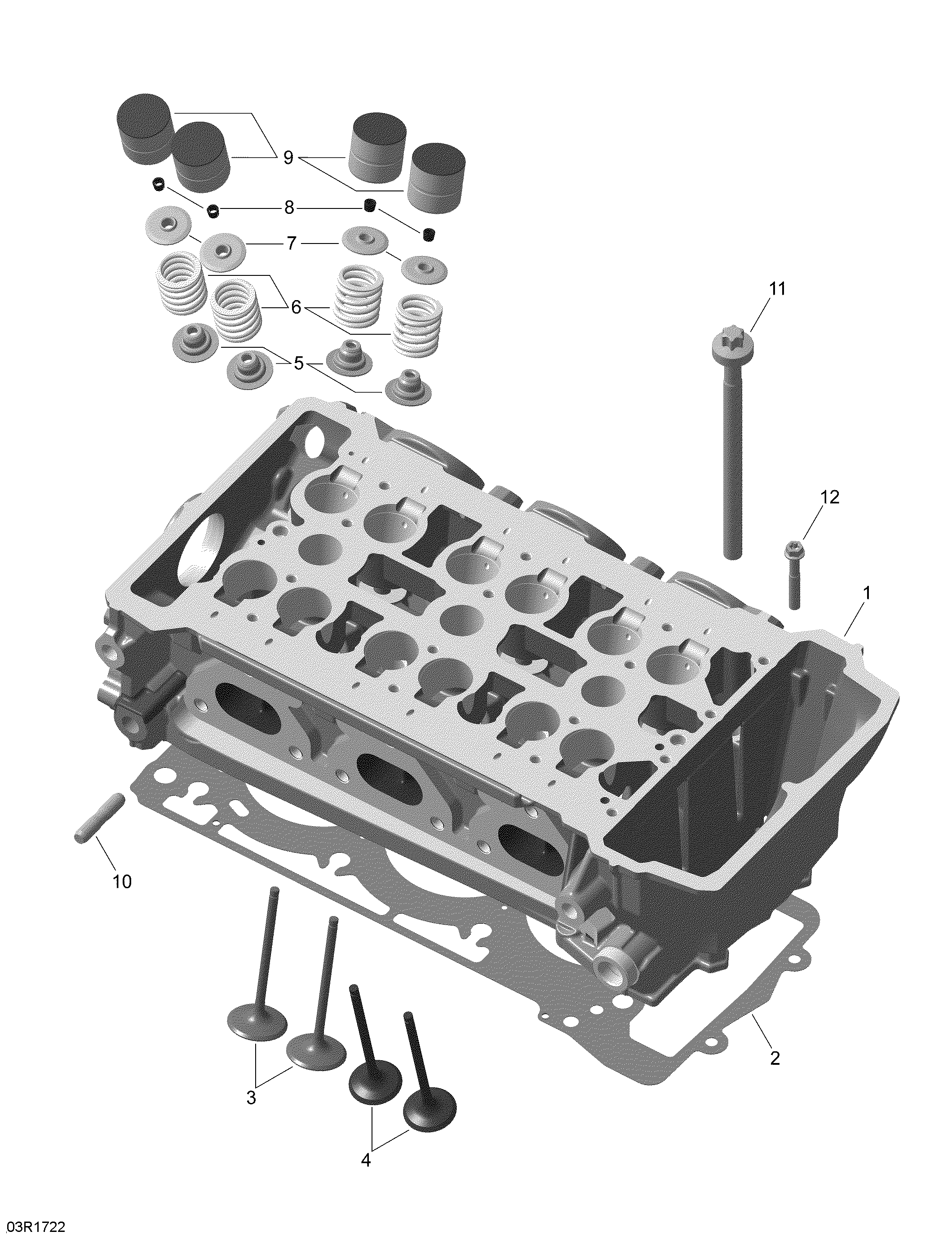

01- Cylinder Head - All Models для BRP RT - 2017
-
№АртикулНазвание
-
1420623975 Cylinder HeadCylinder Head
-
2420431950 Cylinder Gasket. Built Before Aug 1rst 2016Cylinder Gasket. Built Before Aug 1rst 2016
-
2420431951 Cylinder Gasket. Built Aug 1rst 2016 and UpCylinder Gasket. Built Aug 1rst 2016 and Up
-
3420253210 Intake Valve, 32 mmIntake Valve, 32 mm
-
4420253220 Exhaust Valve, 28.5 mmExhaust Valve, 28.5 mm
-
5420431671 Valve Stem SealValve Stem Seal
-
6420939540 Valve SpringValve Spring
-
7420855150 Valve Spring RetainerValve Spring Retainer
-
8420254630 Cotter ValveCotter Valve
-
9420855164 Valve Lifter Bucket BlocValve Lifter Bucket Bloc
-
10420840719 StudStud
-
11420441285 Flanged Torx Screw M10 X 150Flanged Torx Screw M10 X 150
-
12420440282 Flanged Torx Screw M6 X 40Flanged Torx Screw M6 X 40
