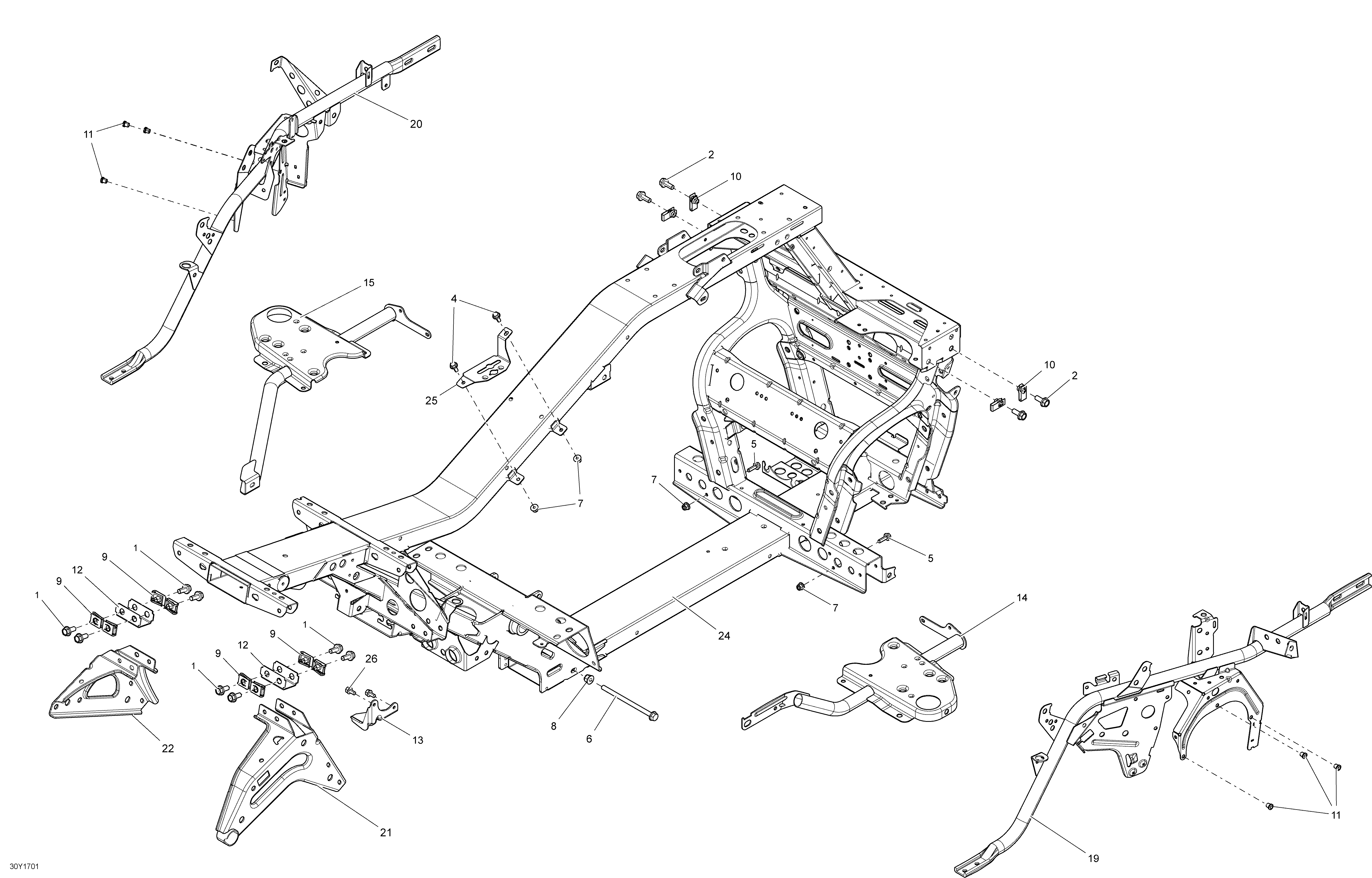

09- Frame для BRP RT - 2017
-
№АртикулНазвание
-
1207581844 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
2207582054 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4250000717 Torx Screw M6 X 16Torx Screw M6 X 16
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
10250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
11293450268 InsertInsert
-
12705202484 U-BracketU-Bracket
-
13705202587 Stopper Swing ArmStopper Swing Arm
-
14705202625 RH Painted Lower Lateral SupportRH Painted Lower Lateral Support
-
15705202626 LH Painted Lower Lateral SupportLH Painted Lower Lateral Support
-
19705203016 RH Painted Lateral Support Ass'yRH Painted Lateral Support Ass'y
-
20705203017 LH Painted Lateral Support Ass'yLH Painted Lateral Support Ass'y
-
21705203959 Painted Rear SupportPainted Rear Support
-
22705203969 LH Rear SupportLH Rear Support
-
24705204866 FrameFrame
-
25705205078 Latch SupportLatch Support
-
26210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
