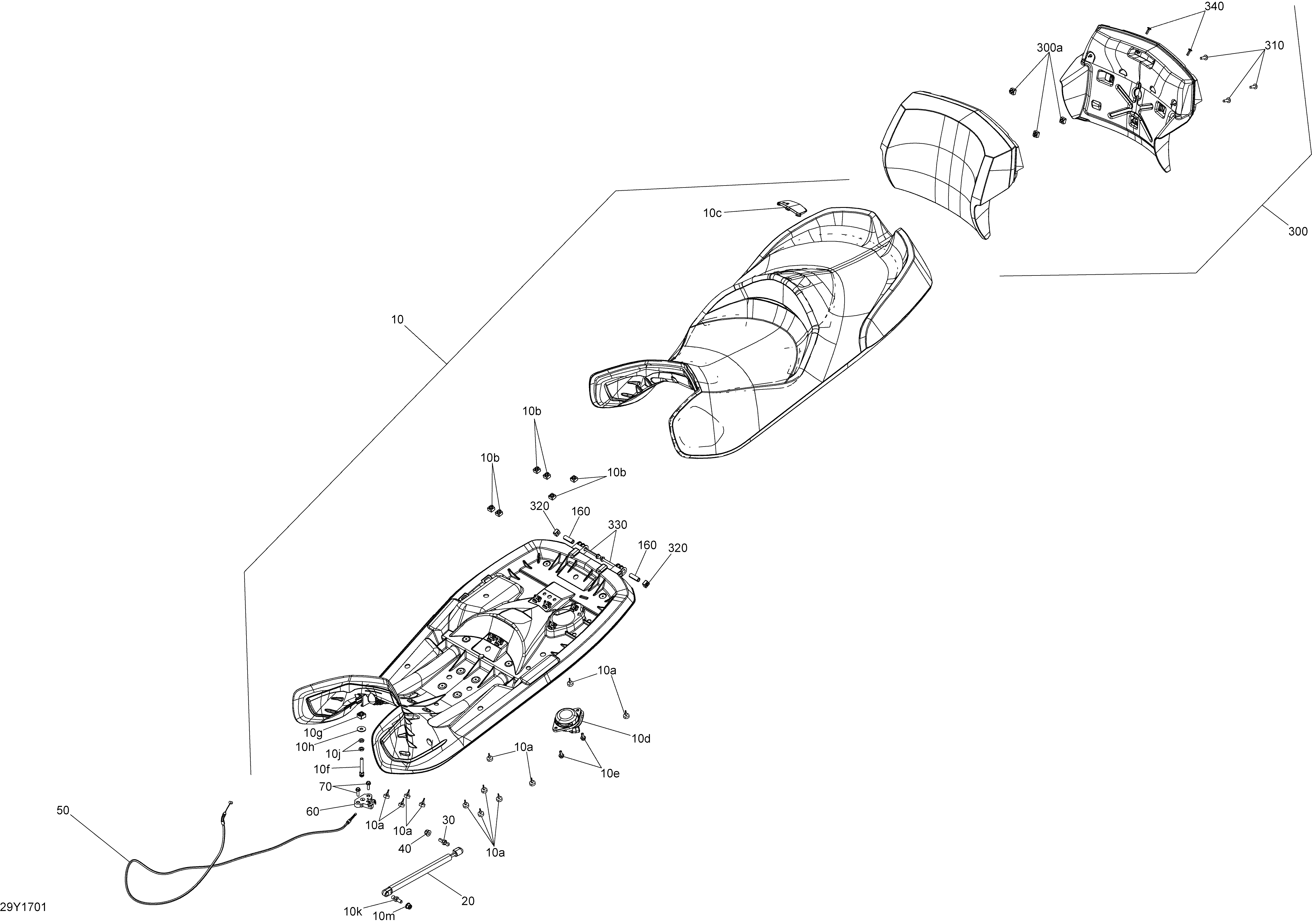

09- Seat - All Models для BRP RT - 2017
-
№АртикулНазвание
-
10>10m708002074 Seat Ass'y. Package STD. Includes 10 to 10mSeat Ass'y. Package STD. Includes 10 to 10m
-
10>10m708002269 Seat Ass'y. Except Package STD. Includes 10 to 10mSeat Ass'y. Except Package STD. Includes 10 to 10m
-
10a708000759 Rubber StopperRubber Stopper
-
10b269501166 Nut Housing Ass'yNut Housing Ass'y
-
10c708001633 Black CapBlack Cap
-
10d710001346 Passenger Detection SwitchPassenger Detection Switch
-
10e207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10f705002223 LugLug
-
10g233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10h234082410 Flat Washer 8 mmFlat Washer 8 mm
-
10j232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
10k250300039 Ball Head StudBall Head Stud
-
10m233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20708000658 Gaz ShockGaz Shock
-
30250300039 Ball Head StudBall Head Stud
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50708001743 Seat CableSeat Cable
-
60705007379 LatchLatch
-
70210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
160708000664 SpacerSpacer
-
300>300a708001329 Black Backrest Ass'y. Package STD. Includes 300 to 300aBlack Backrest Ass'y. Package STD. Includes 300 to 300a
-
300>300a708002279 Charcoal Black Backrest Ass'y. Package S. Includes 300 to 300aCharcoal Black Backrest Ass'y. Package S. Includes 300 to 300a
-
300>300a708002367 Black Backrest Ass'y. Package LTD. Includes 300 to 300aBlack Backrest Ass'y. Package LTD. Includes 300 to 300a
-
300a269501166 Nut Housing Ass'yNut Housing Ass'y
-
310250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
320269500725 Nut Housing Ass'yNut Housing Ass'y
-
330250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
340250000720 Torx Screw K50 X 16Torx Screw K50 X 16
