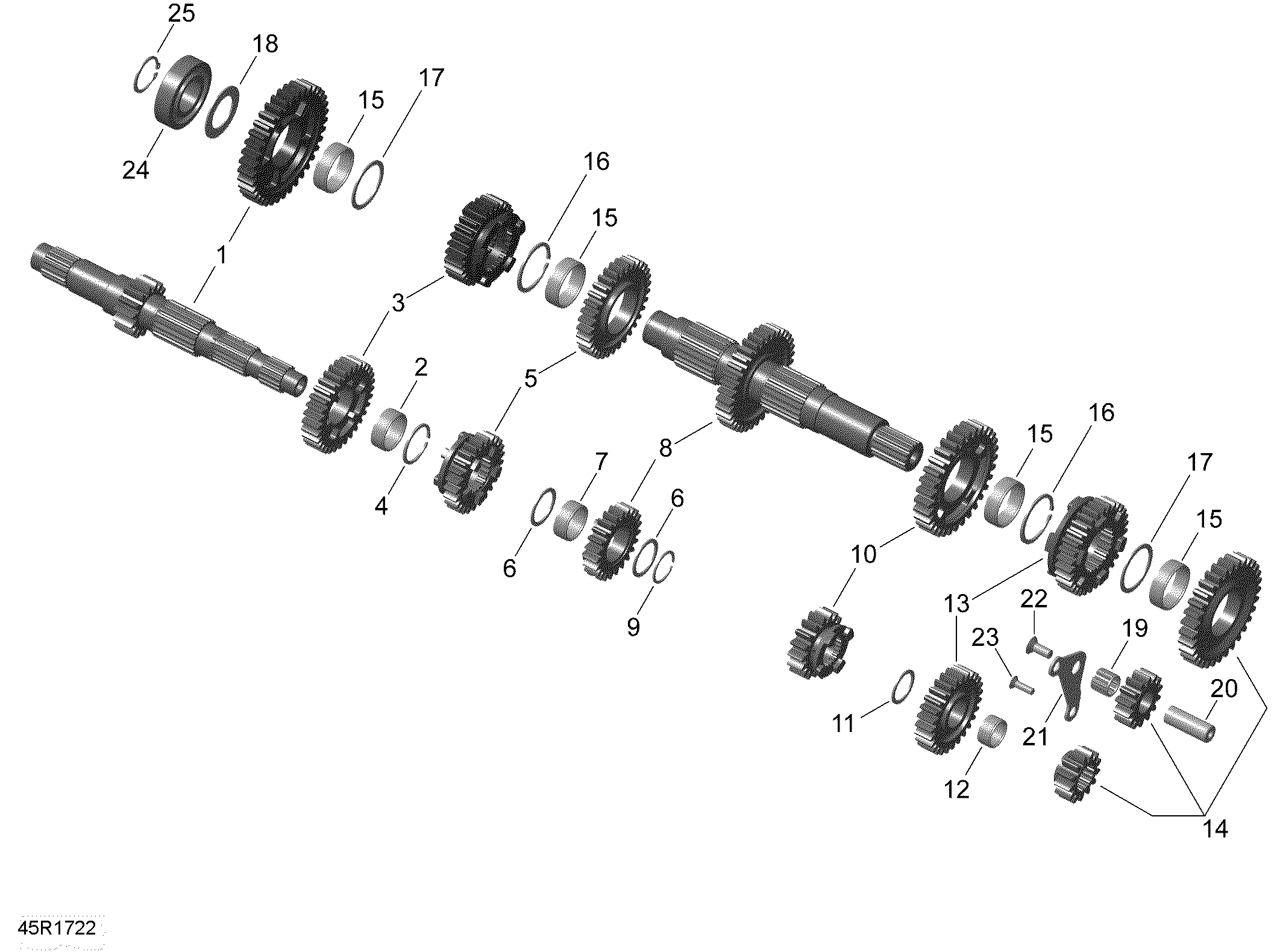

05- Gear Box - All Models для BRP RT - 2017
-
№АртикулНазвание
-
1420481150 Clutch Shaft Kit. Speed (1)Clutch Shaft Kit. Speed (1)
-
2420432131 Needle BearingNeedle Bearing
-
3420481175 Gear Set. Speed (6)Gear Set. Speed (6)
-
4420245311 Retaininig Ring 34 X 2Retaininig Ring 34 X 2
-
5420481165 Gear Set. Speed (4)Gear Set. Speed (4)
-
6420627294 Thrust WasherThrust Washer
-
7420932976 Needle BearingNeedle Bearing
-
8420481160 Gear Set. Speed (3)Gear Set. Speed (3)
-
9420245361 Groove RingGroove Ring
-
10420481155 Gear Set. Speed (2)Gear Set. Speed (2)
-
11420627298 Thrust WasherThrust Washer
-
12420232533 Needle BearingNeedle Bearing
-
13420481170 Gear Set. Speed (5)Gear Set. Speed (5)
-
14420481140 Gear Set. Reverse (R)Gear Set. Reverse (R)
-
15420632821 Needle BearingNeedle Bearing
-
16420245411 Retaininig Ring 41.5 X 2Retaininig Ring 41.5 X 2
-
17420626831 Thrust WasherThrust Washer
-
18420626851 Thrust WasherThrust Washer
-
19420432034 Needle CageNeedle Cage
-
20420249050 BoltBolt
-
21420651620 Retaining PlateRetaining Plate
-
22420641406 Screw M8 X 20Screw M8 X 20
-
23420941436 Screw M6 X 20Screw M6 X 20
-
24420232782 Ball BearingBall Bearing
-
25420945619 Retaininig Ring 30 X 2Retaininig Ring 30 X 2
