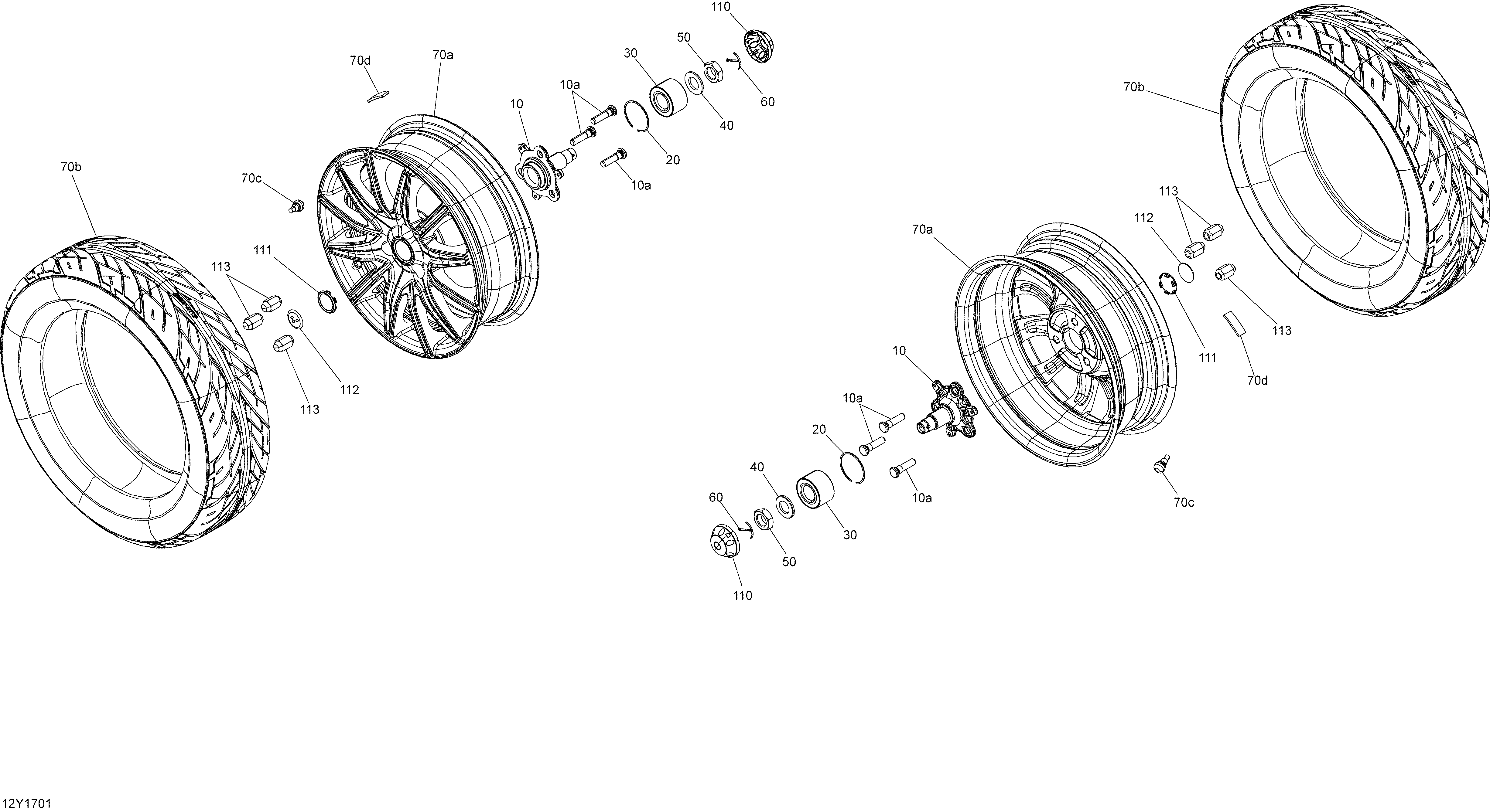

07- Drive System, Front - All Models для BRP RT - 2017
-
№АртикулНазвание
-
10>10a706202435 Hub. Includes 10 to 10aHub. Includes 10 to 10a
-
10a250300058 Wheel StudWheel Stud
-
20293370019 CirclipCirclip
-
30293350040 Cone BearingCone Bearing
-
40250200163 Flat WasherFlat Washer
-
50250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
60250400047 Cotter PinCotter Pin
-
70a219800372 Chrome Front Wheel. Package LTDChrome Front Wheel. Package LTD
-
70a706201328 Argent Front Rim. Package STDArgent Front Rim. Package STD
-
70a706202214 Carbon Black Front Rim. Package SCarbon Black Front Rim. Package S
-
70b706202317 Front TireFront Tire
-
70c705400193 Rim Valve With CapRim Valve With Cap
-
70d705502106 Self Adhesive WeightSelf Adhesive Weight
-
110705401100 Wheel CapWheel Cap
-
111705400388 Wheel CapWheel Cap
-
112704905260 Spyder LogoSpyder Logo
-
113250100154 Chrome Wheel Nut M12 X 1.5. Package LTDChrome Wheel Nut M12 X 1.5. Package LTD
-
113250100154 Chrome Wheel Nut M12 X 1.5. Package STDChrome Wheel Nut M12 X 1.5. Package STD
-
113250100155 Black Wheel Nut M12 X 1.5. Package SBlack Wheel Nut M12 X 1.5. Package S
