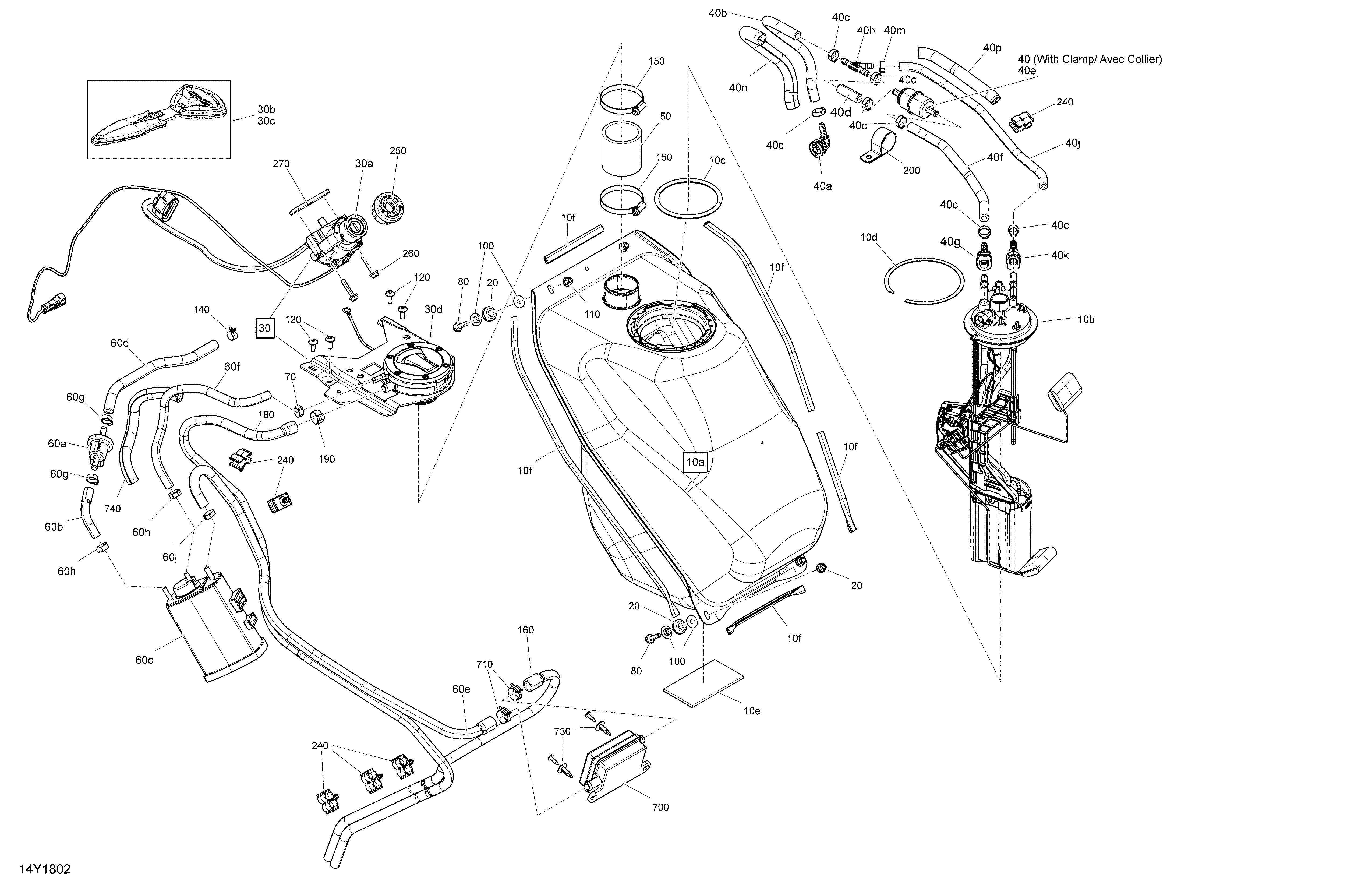

02- Fuel для BRP F3 T SE6 - 2018
-
№АртикулНазвание
-
10a219800366 Fuel TankFuel Tank
-
10b709000779 Fuel Pump ModuleFuel Pump Module
-
10c219800248 Seal KitSeal Kit
-
10d219800248 Seal KitSeal Kit
-
10e709000553 CarpetCarpet
-
10f271001530 TrimTrim
-
20709000582 GrommetGrommet
-
30709000818 Lock KitLock Kit
-
30a710005640 Ignition SwitchIgnition Switch
-
30b710004408 Ignition Key KitIgnition Key Kit
-
30c219800373 DESS Antenna. Not ShownDESS Antenna. Not Shown
-
30d219800405 Fuel Cap kit with KeyFuel Cap kit with Key
-
40219800056 Fuel Filter Ass'y. Not ShownFuel Filter Ass'y. Not Shown
-
40a293710105 Elbow Fitting 90°Elbow Fitting 90°
-
40b709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
40c293650125 Oetiker ClampOetiker Clamp
-
40d709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
40e709000100 Fuel FilterFuel Filter
-
40f709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
40g709000684 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
40h709000453 Y FittingY Fitting
-
40j709000771 Formed HoseFormed Hose
-
40k709000686 Quick FittingQuick Fitting
-
40m293650046 Oetiker ClampOetiker Clamp
-
40n415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
40p415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
50275500924 Fuel HoseFuel Hose
-
60a709000443 Bleed ValveBleed Valve
-
60b709000566 Formed HoseFormed Hose
-
60c709000090 Vapor CanisterVapor Canister
-
60d709000666 HoseHose
-
60e709000567 Formed HoseFormed Hose
-
60f709000667 HoseHose
-
60g293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
60h293650025 Oetiker Gear ClampOetiker Gear Clamp
-
60j293650140 Oetiker ClampOetiker Clamp
-
70293650046 Oetiker ClampOetiker Clamp
-
80207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
100709000716 BushingBushing
-
110233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
120250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
140513033029 Universal Spring ClampUniversal Spring Clamp
-
150293650081 Norma ClampNorma Clamp
-
160709000570 Formed HoseFormed Hose
-
180709000813 Formed HoseFormed Hose
-
190293650011 Oetiker ClampOetiker Clamp
-
200513033047 Open ClampOpen Clamp
-
240709000571 Hose SupportHose Support
-
250710004182 Ignition Switch CapIgnition Switch Cap
-
260207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
270710001365 Switch SupportSwitch Support
-
700709000524 Air FilterAir Filter
-
710513033865 Spring ClampSpring Clamp
-
730414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
740409901800 Tubing 13 mmTubing 13 mm
