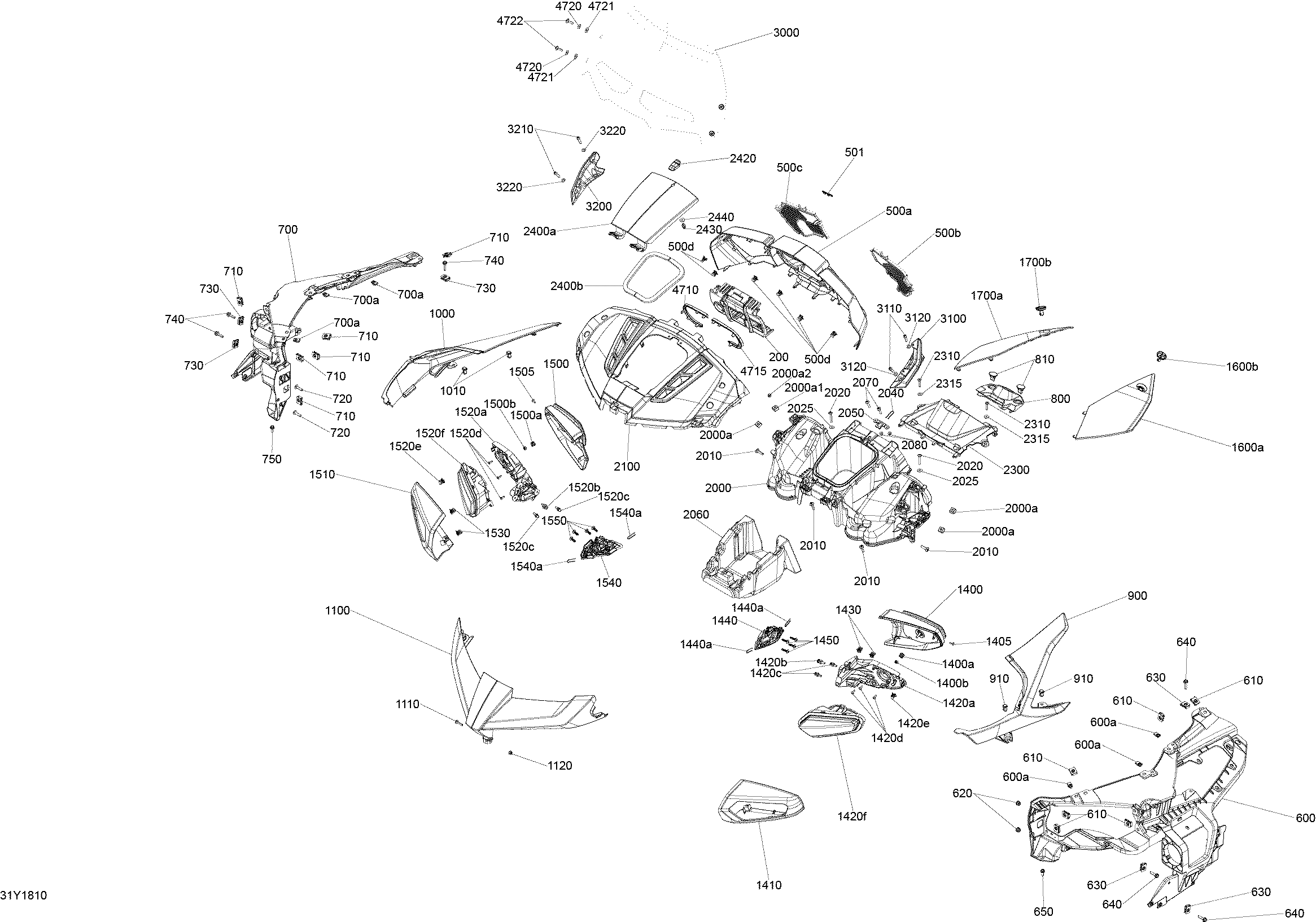

09- Console для BRP F3 T SE6 - 2018
-
№АртикулНазвание
-
200705012178 Speedmeter SupportSpeedmeter Support
-
500a708400230 DashboardDashboard
-
500b708400231 LH GrillLH Grill
-
500c708400232 RH GrillRH Grill
-
500d517302785 ClipClip
-
501708400308 BRP Audio LogoBRP Audio Logo
-
600708400170 LH Consol Supp. Includes 600 to 600aLH Consol Supp. Includes 600 to 600a
-
600a250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
610250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
620233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
630250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
640250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
650210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
700708400171 Rh Consol Supp. Includes 700 to 700aRh Consol Supp. Includes 700 to 700a
-
700a250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
710250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
720250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
730250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
740250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
750210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800708400205 Switch BezelSwitch Bezel
-
810708400046 CapCap
-
810708400046 CapCap
-
900708400066 Black Steel LH Consol FairingBlack Steel LH Consol Fairing
-
910293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1000708400068 Black Steel Rh Consol FairingBlack Steel Rh Consol Fairing
-
1010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1100708400075 Black Steel Nose FairingBlack Steel Nose Fairing
-
1110250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1120233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
1400708400115 LH Mirror Shell. Includes 1400 to 1400bLH Mirror Shell. Includes 1400 to 1400b
-
1400a705010625 SpringSpring
-
1400b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
1405250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1410708400113 Black Steel Mirror Shell LHBlack Steel Mirror Shell LH
-
1420a708400224 LH Mirror SupportLH Mirror Support
-
1420b705006733 Flat Head Stud M5Flat Head Stud M5
-
1420c705006734 Round Head Stud M5Round Head Stud M5
-
1420d250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1420e517302785 ClipClip
-
1420f710001510 LH Front Flasher UnitLH Front Flasher Unit
-
1430517302785 ClipClip
-
1440705008211 LH Plate Support Ass'y. Includes 1440 to 1440aLH Plate Support Ass'y. Includes 1440 to 1440a
-
1440a705006661 SpringSpring
-
1450250000760 Torx Screw Truss Head K50 X 20Torx Screw Truss Head K50 X 20
-
1500708400118 RH Mirror Shell. Includes 1500 to 1500bRH Mirror Shell. Includes 1500 to 1500b
-
1500a705010625 SpringSpring
-
1500b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
1505250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1510708400116 Black Steel Mirror Shell RHBlack Steel Mirror Shell RH
-
1520a708400225 RH Mirror SupportRH Mirror Support
-
1520b705006733 Flat Head Stud M5Flat Head Stud M5
-
1520c705006734 Round Head Stud M5Round Head Stud M5
-
1520d250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1520e517302785 ClipClip
-
1520f710001511 RH Front Flasher UnitRH Front Flasher Unit
-
1530517302785 ClipClip
-
1540705008210 RH Plate Support Ass'y. Includes 1540 to 1540aRH Plate Support Ass'y. Includes 1540 to 1540a
-
1540a705006661 SpringSpring
-
1550250000760 Torx Screw Truss Head K50 X 20Torx Screw Truss Head K50 X 20
-
1600a708400256 LH Acces PanelLH Acces Panel
-
1600b708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
1700a708400257 RH Acces PanelRH Acces Panel
-
1700b708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
2000708400219 Upper Pod. Includes 2000 to 2000a2Upper Pod. Includes 2000 to 2000a2
-
2000a269501166 Nut Housing Ass'y. Includes 2000a1 to 2000a2Nut Housing Ass'y. Includes 2000a1 to 2000a2
-
2000a1269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2000a2232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2010250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
2020250000732 Torx Screw NylonTorx Screw Nylon
-
2025234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
2040705006661 SpringSpring
-
2050708400215 ReceptacleReceptacle
-
2060708400103 Pod FoamPod Foam
-
2070250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2080233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
2100708400221 Upper FairingUpper Fairing
-
2300708400108 Column FairingColumn Fairing
-
2310250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2315234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
2400a708400217 Glove Box DoorGlove Box Door
-
2400b293250406 SealSeal
-
2420708400213 LeverLever
-
2430705011056 Stud M5Stud M5
-
2440234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
3000708400087 WindshieldWindshield
-
3100708400127 Black Carbon Wind. Base LHBlack Carbon Wind. Base LH
-
3110250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
3120234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3200708400128 Black Carbon Wind. Base RHBlack Carbon Wind. Base RH
-
3210250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
3220234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
4710705012356 Carbon Black, LH TrimCarbon Black, LH Trim
-
4715705012357 Carbon Black, RH TrimCarbon Black, RH Trim
