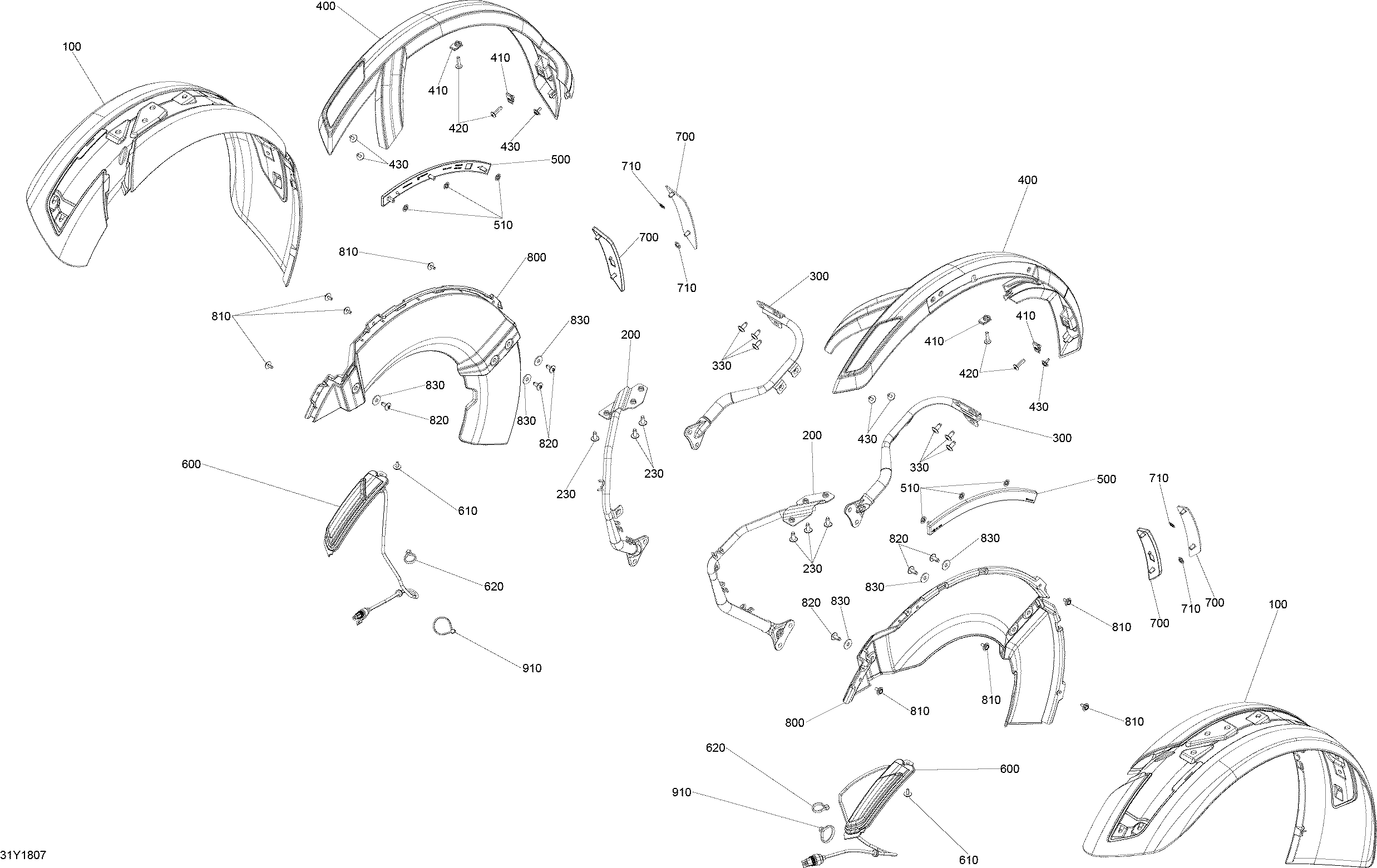

09- Body And Accessories - Fender для BRP F3 T SE6 - 2018
-
№АртикулНазвание
-
100705012853 Intense Red, LH Fr Fender. Model Intense RedIntense Red, LH Fr Fender. Model Intense Red
-
100705012855 Intense Red, RH Fr Fender. Model Intense RedIntense Red, RH Fr Fender. Model Intense Red
-
100705012666 Jet Black, LH Front Fender. Model Jet BlackJet Black, LH Front Fender. Model Jet Black
-
100705012669 Jet Black, RH Fr Fender. Model Jet BlackJet Black, RH Fr Fender. Model Jet Black
-
100705006908 Metallic Black Front Fender LH. Model Monolith BlackMetallic Black Front Fender LH. Model Monolith Black
-
100705006909 Metallic Black Front Fender RH. Model Monolith BlackMetallic Black Front Fender RH. Model Monolith Black
-
100705012303 Oxford Blue, LH Fr Fender. Model Oxford BlueOxford Blue, LH Fr Fender. Model Oxford Blue
-
100705012305 Oxford Blue, RH Fr Fender. Model Oxford BlueOxford Blue, RH Fr Fender. Model Oxford Blue
-
100705006908 Metallic Black Front Fender LH. Model Steel BlackMetallic Black Front Fender LH. Model Steel Black
-
100705006909 Metallic Black Front Fender RH. Model Steel BlackMetallic Black Front Fender RH. Model Steel Black
-
100705006509 White LH Front Fender. Model Vegas WhiteWhite LH Front Fender. Model Vegas White
-
100705006510 Vegas White RH Front Fender. Model Vegas WhiteVegas White RH Front Fender. Model Vegas White
-
200705011297 LH Front SupportLH Front Support
-
200705011301 RH Front SupportRH Front Support
-
230250000851 Torx Screw M6 X 14Torx Screw M6 X 14
-
300219800414 LH SupportLH Support
-
300705011302 RH Rear SupportRH Rear Support
-
330250000851 Torx Screw M6 X 14Torx Screw M6 X 14
-
400705012854 Intense Red, LH Fender. Model Intense RedIntense Red, LH Fender. Model Intense Red
-
400705012856 Intense Red, RH Fender. Model Intense RedIntense Red, RH Fender. Model Intense Red
-
400705012667 Jet Black, LH Front Fender Moulding. Model Jet BlackJet Black, LH Front Fender Moulding. Model Jet Black
-
400705012693 Jet Black, RH Front Fender Moulding. Model Jet BlackJet Black, RH Front Fender Moulding. Model Jet Black
-
400705008746 Steel Black LH Front Fender Moulding. Model Monolith BlackSteel Black LH Front Fender Moulding. Model Monolith Black
-
400705008747 Steel Black RH Front Fender Moulding. Model Monolith BlackSteel Black RH Front Fender Moulding. Model Monolith Black
-
400705012304 Oxford Blue, LH Fender. Model Oxford BlueOxford Blue, LH Fender. Model Oxford Blue
-
400705012369 Oxford Blue, RH Fender. Model Oxford BlueOxford Blue, RH Fender. Model Oxford Blue
-
400705008746 Steel Black LH Front Fender Moulding. Model Steel BlackSteel Black LH Front Fender Moulding. Model Steel Black
-
400705008747 Steel Black RH Front Fender Moulding. Model Steel BlackSteel Black RH Front Fender Moulding. Model Steel Black
-
400705006520 White Front Fender Moulding LH. Model Vegas WhiteWhite Front Fender Moulding LH. Model Vegas White
-
400705006521 White Front Fender Moulding RH. Model Vegas WhiteWhite Front Fender Moulding RH. Model Vegas White
-
410250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
420250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
430250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
500705008661 Yellow LH ReflectorYellow LH Reflector
-
500705008662 Yellow RH ReflectorYellow RH Reflector
-
510250100163 Pressure NutPressure Nut
-
600710006200 LH Position Light. Option 10TH / Option DarkLH Position Light. Option 10TH / Option Dark
-
600710006199 RH Position Light. Option 10TH / Option DarkRH Position Light. Option 10TH / Option Dark
-
600710004032 LH Position Light. Option Chrome / Without OptionLH Position Light. Option Chrome / Without Option
-
600710004033 RH Position Light. Option Chrome / Without OptionRH Position Light. Option Chrome / Without Option
-
610250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
620293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
700219800275 LH Rear Reflector Ass'y. All Except North AmericaLH Rear Reflector Ass'y. All Except North America
-
700219800276 RH Rear Reflector Ass'y. All Except North AmericaRH Rear Reflector Ass'y. All Except North America
-
700705005667 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
700705005949 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
710250100163 Pressure NutPressure Nut
-
800705007616 LH Inner FenderLH Inner Fender
-
800705007617 RH Inner FenderRH Inner Fender
-
810250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
820250000851 Torx Screw M6 X 14Torx Screw M6 X 14
-
830250200164 Flat washer M6Flat washer M6
-
910293750002 Tie-Rap 142 mmTie-Rap 142 mm
