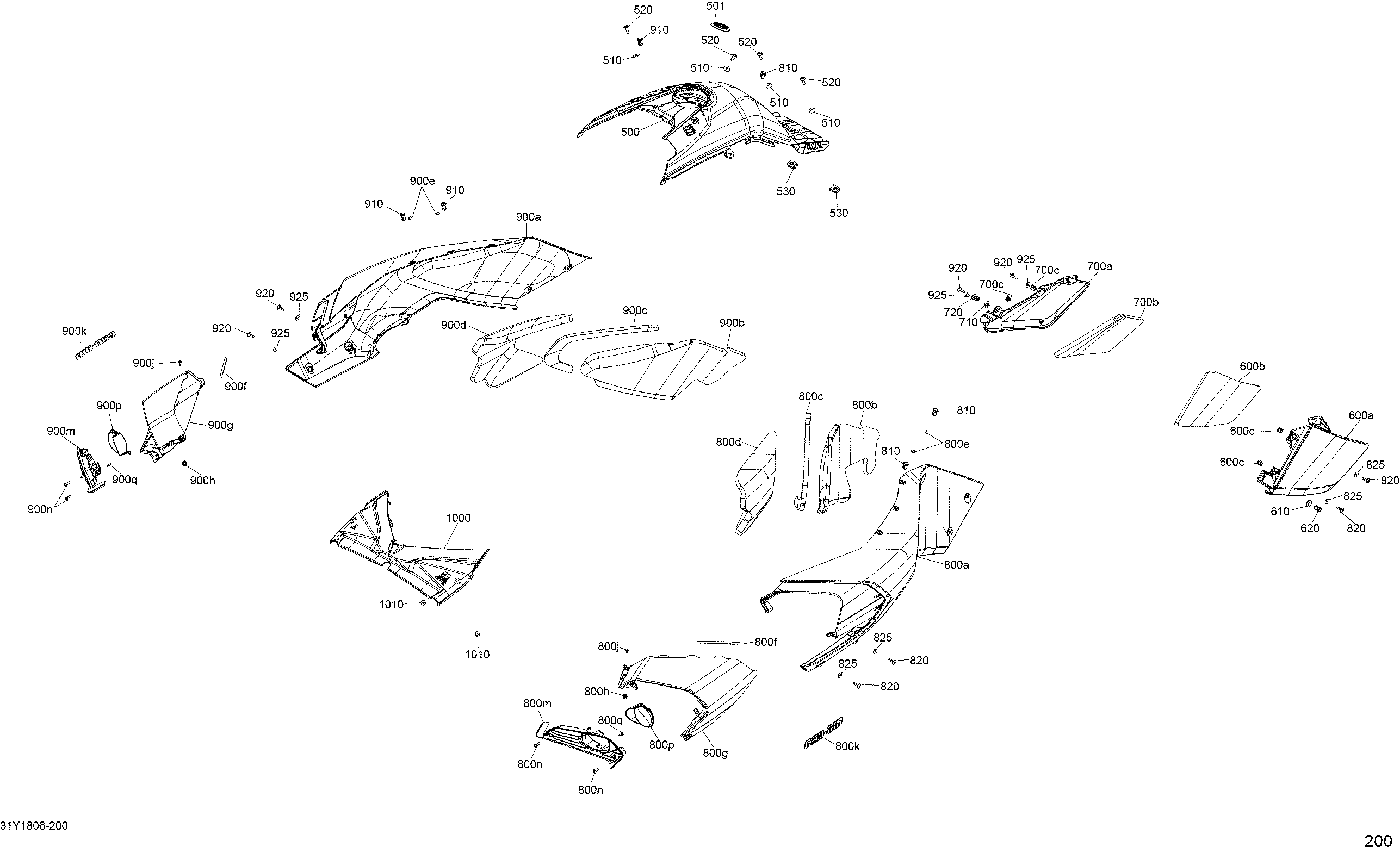

09- Body And Accessories - Fairing для BRP F3 T SE6 - 2018
-
№АртикулНазвание
-
500705008246 Steel Black Fuel Tank CoverSteel Black Fuel Tank Cover
-
510234062670 Flat Washer, StainlessFlat Washer, Stainless
-
520250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
600a705009924 LH Low Fairing - Vegas White. Model Pearl WhiteLH Low Fairing - Vegas White. Model Pearl White
-
600a705010644 LH Low Fairing - Monolith Black. Model Monolith BlackLH Low Fairing - Monolith Black. Model Monolith Black
-
600a705012234 LH Low Fairing - Oxford Blue. Model Oxford BlueLH Low Fairing - Oxford Blue. Model Oxford Blue
-
600a705012851 Intense Red, LH Low Fairing. Model Intense RedIntense Red, LH Low Fairing. Model Intense Red
-
600b705010473 Acoustic Foam LHAcoustic Foam LH
-
600c250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
600d293250380 Seal JointSeal Joint
-
610705010890 SpacerSpacer
-
620293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
700a705009925 RH Low Fairing - Vegas White. Model Pearl WhiteRH Low Fairing - Vegas White. Model Pearl White
-
700a705010643 RH Low Fairing - Monolith Black. Model Monolith BlackRH Low Fairing - Monolith Black. Model Monolith Black
-
700a705012232 RH Low Fairing - Oxford Blue. Model Oxford BlueRH Low Fairing - Oxford Blue. Model Oxford Blue
-
700a705012852 Intense Red, RH Low Fairing. Model Intense RedIntense Red, RH Low Fairing. Model Intense Red
-
700b705010474 Acoustic Foam RHAcoustic Foam RH
-
700c250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
700d293250380 Seal JointSeal Joint
-
710705010890 SpacerSpacer
-
720293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
800a705010779 LH Lateral Fairing - Oxford Blue. Model Oxford BlueLH Lateral Fairing - Oxford Blue. Model Oxford Blue
-
800a705010844 LH Lateral Fairing - Vegas White. Model Pearl WhiteLH Lateral Fairing - Vegas White. Model Pearl White
-
800a705010847 LH Lateral Fairing - Monolith Black. Model Monolith BlackLH Lateral Fairing - Monolith Black. Model Monolith Black
-
800a705012847 Intense Red, LH Fairing. Model Intense RedIntense Red, LH Fairing. Model Intense Red
-
800b705009155 Acoustic FoamAcoustic Foam
-
800c705009157 Acoustic FoamAcoustic Foam
-
800d705009159 Acoustic FoamAcoustic Foam
-
800e705006634 Polyurethane StopperPolyurethane Stopper
-
800f293250143 SealSeal
-
800g705011173 Hyper Silver, LH Air Scoop. Model Pearl WhiteHyper Silver, LH Air Scoop. Model Pearl White
-
800g705011173 Hyper Silver, LH Air Scoop. Model Intense RedHyper Silver, LH Air Scoop. Model Intense Red
-
800g705011173 Hyper Silver, LH Air Scoop. Model Oxford BlueHyper Silver, LH Air Scoop. Model Oxford Blue
-
800g705011175 LH Air Scoop - Carbon Black. Model Monolith BlackLH Air Scoop - Carbon Black. Model Monolith Black
-
800h705009430 Anchor PinAnchor Pin
-
800j250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
800k704904675 Logo CAN-AM - Brillant ChromeLogo CAN-AM - Brillant Chrome
-
800m705010137 LH Air Vent Grid - Deep BlackLH Air Vent Grid - Deep Black
-
800n250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800p705007787 LH Light Cap - Deep Black. North AmericaLH Light Cap - Deep Black. North America
-
800p705008995 LH Heat Shield. All Except North AmericaLH Heat Shield. All Except North America
-
800q250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
820250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
825234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
900a705010781 RH Lateral Fairing - Oxford Blue. Model Oxford BlueRH Lateral Fairing - Oxford Blue. Model Oxford Blue
-
900a705010836 RH Lateral Fairing - Vegas White. Model Pearl WhiteRH Lateral Fairing - Vegas White. Model Pearl White
-
900a705010839 RH Lateral Fairing - Monolith Black. Model Monolith BlackRH Lateral Fairing - Monolith Black. Model Monolith Black
-
900a705012849 Intense Red, RH Fairing. Model Intense RedIntense Red, RH Fairing. Model Intense Red
-
900b705009156 Acoustic FoamAcoustic Foam
-
900c705009158 Acoustic FoamAcoustic Foam
-
900d705009160 Acoustic FoamAcoustic Foam
-
900e705006634 Polyurethane StopperPolyurethane Stopper
-
900f293250143 SealSeal
-
900g705011174 Hyper Silver, RH Air Scoop. Model Pearl WhiteHyper Silver, RH Air Scoop. Model Pearl White
-
900g705011174 Hyper Silver, RH Air Scoop. Model Intense RedHyper Silver, RH Air Scoop. Model Intense Red
-
900g705011174 Hyper Silver, RH Air Scoop. Model Oxford BlueHyper Silver, RH Air Scoop. Model Oxford Blue
-
900g705011176 RH Air Scoop - Carbon Black. Model Monolith BlackRH Air Scoop - Carbon Black. Model Monolith Black
-
900h705009430 Anchor PinAnchor Pin
-
900j250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
900k704904675 Logo CAN-AM - Brillant ChromeLogo CAN-AM - Brillant Chrome
-
900m705010138 RH Air Vent Grid - Deep BlackRH Air Vent Grid - Deep Black
-
900n250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
900p705008963 RH Light Cap - Deep Black. North AmericaRH Light Cap - Deep Black. North America
-
900p705008996 RH Heat Shield. All Except North AmericaRH Heat Shield. All Except North America
-
900q250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
910293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
920250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
925234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
1000705008058 Service Center FairingService Center Fairing
-
1010293830005 Rubber BumperRubber Bumper
