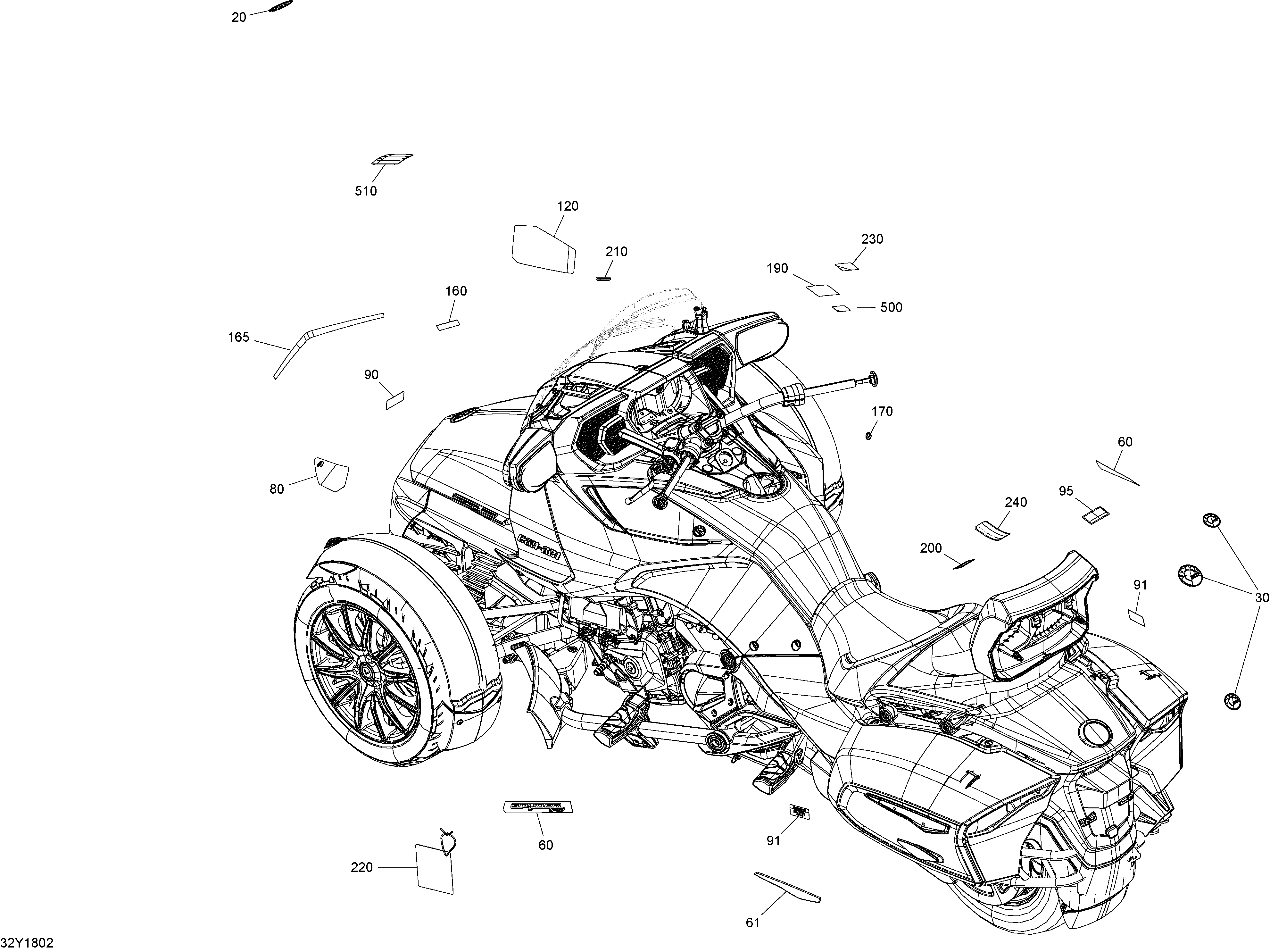

09- Decals для BRP F3 T SE6 - 2018
-
№АртикулНазвание
-
20516008739 Logo BRPLogo BRP
-
30516008739 Logo BRPLogo BRP
-
60704905405 F3-T Luggage Decal LHF3-T Luggage Decal LH
-
61704905406 F3-T Luggage Decal RHF3-T Luggage Decal RH
-
80704905092 -Decal, Tire And Loading-Decal, Tire And Loading
-
90704905122 Load DecalLoad Decal
-
91704905122 Load DecalLoad Decal
-
120704907102 Warning DecalWarning Decal
-
160704905201 Domed T LogoDomed T Logo
-
170516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
190704904924 Caution Decal, Oil LevelCaution Decal, Oil Level
-
200704906121 Warning DecalWarning Decal
-
210704904673 Card LOGOCard LOGO
-
220704905082 Warning Decal, SecurityWarning Decal, Security
-
230704903119 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
240704905966 Decal, Suspension PressureDecal, Suspension Pressure
-
500704904812 Decal, XPSDecal, XPS
-
510704904936 Notice Decal, CleaningNotice Decal, Cleaning
