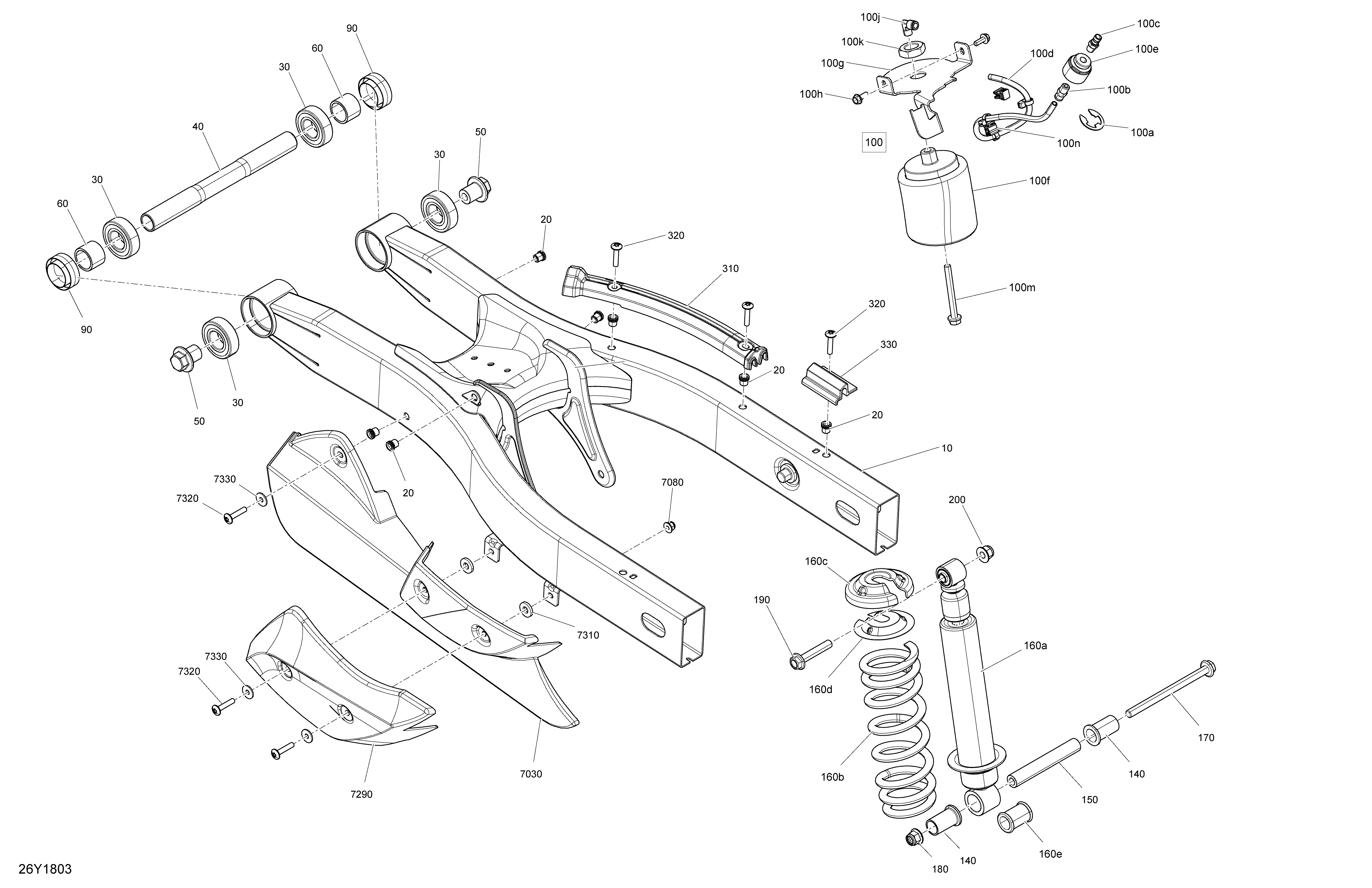

08- Rear Suspension для BRP F3 T SE6 - 2018
-
№АртикулНазвание
-
10706001574 Swing ArmSwing Arm
-
20293450275 InsertInsert
-
30293350115 Ball BearingBall Bearing
-
40706001182 Swing Arm AxleSwing Arm Axle
-
50706001579 Bolt M20Bolt M20
-
60706001152 SpacerSpacer
-
90706001366 SleeveSleeve
-
100219800175 Air Damper Kit. Includes 100 to 100nAir Damper Kit. Includes 100 to 100n
-
100a293370123 CirclipCirclip
-
100b706000869 ConnectorConnector
-
100c706002797 Air ValveAir Valve
-
100d706002679 HoseHose
-
100e706002656 Pneumatic ConnectorPneumatic Connector
-
100f219800175 Air Damper KitAir Damper Kit
-
100g706002456 Support PlateSupport Plate
-
100h210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
100j706001018 Elbow 90°Elbow 90°
-
100k250100119 Jam Nut M20Jam Nut M20
-
100m207687544 Hex. Flanged Screw M8 X 75Hex. Flanged Screw M8 X 75
-
100n710002899 Clip Tie-RapClip Tie-Rap
-
140706000410 SpacerSpacer
-
150706000409 Shock Absorber ShaftShock Absorber Shaft
-
160a706001706 ShockShock
-
160b706001707 SpringSpring
-
160c503193781 Spring StopperSpring Stopper
-
160d503193782 CapCap
-
160e503191609 Urethane CushionUrethane Cushion
-
170230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
180233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
190207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
310710004281 ProtectorProtector
-
320250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
330710002145 Hose SupportHose Support
-
7030705002092 Lower Belt GuardLower Belt Guard
-
7080233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
7290705009446 Belt Guard MouldingBelt Guard Moulding
-
7310705003696 Adhesive SpacerAdhesive Spacer
-
7320250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
7330234062670 Flat Washer, StainlessFlat Washer, Stainless
