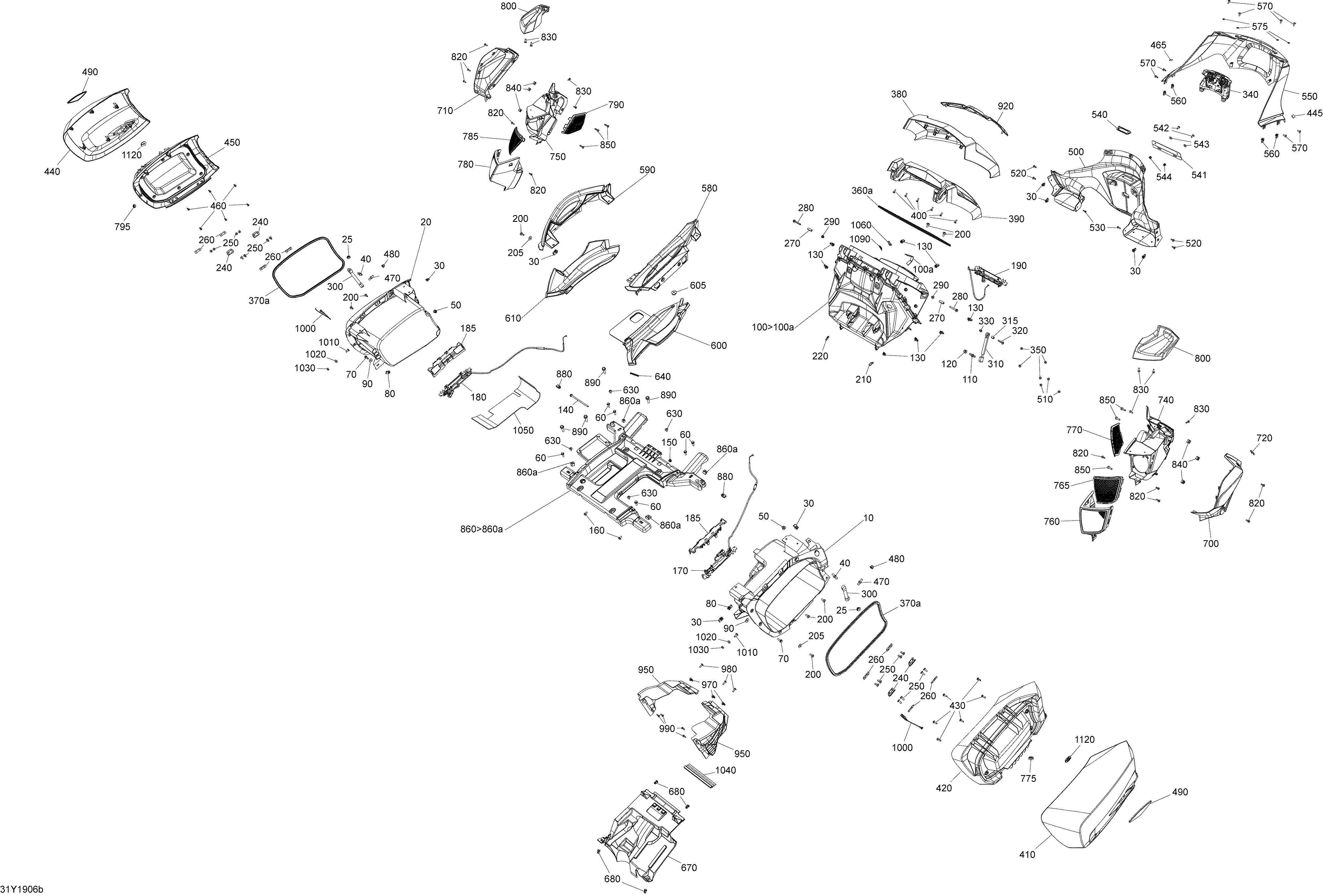

09- Body And Accessories Cargo для BRP 002 - RT STD SE6 - 2019
-
№АртикулНазвание
-
10708301016 Cargo Box Inner LHCargo Box Inner LH
-
20708301017 Cargo Box Inner RHCargo Box Inner RH
-
30250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
40250300016 Ball Head StudBall Head Stud
-
50233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
80250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
90224061201 Flat WasherFlat Washer
-
100>100a708301798 Storage Bin Ass'y Rear. Includes 100 TO 100aStorage Bin Ass'y Rear. Includes 100 TO 100a
-
100a414843500 VELCRO-#8MVA HOOK, 1M PackVELCRO-#8MVA HOOK, 1M Pack
-
110250300039 Ball Head StudBall Head Stud
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
140230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
150233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
160207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
170708301640 Latch Ass'y LHLatch Ass'y LH
-
180708301641 Latch Ass'y RHLatch Ass'y RH
-
185708300514 Latch ProtectorLatch Protector
-
190708301642 Center LatchCenter Latch
-
200250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
205250200164 Flat washer M6Flat washer M6
-
210414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
220414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
240708300006 HingeHinge
-
250250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
260708300129 Plate SupportPlate Support
-
270708300394 SpacerSpacer
-
280207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
290233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
300708300011 Gaz ShockGaz Shock
-
310708300383 Gaz ShockGaz Shock
-
315708300384 SpacerSpacer
-
320250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
330232361493 Domed Nut M6Domed Nut M6
-
340708302620 Main Control (WO lock cylinder)Main Control (WO lock cylinder)
-
350250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
360a293830188 Seal, 1PC = 3MSeal, 1PC = 3M
-
370a293830188 Seal, 1PC = 3MSeal, 1PC = 3M
-
380708301106 Cover Trunk Rear, Vegas White B-313Cover Trunk Rear, Vegas White B-313
-
390708300678 Inner CoverInner Cover
-
400250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
410708301111 Cover Trunk LH, Vegas White B-313Cover Trunk LH, Vegas White B-313
-
420708301023 Cover Interior LHCover Interior LH
-
430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
440708301112 Cover Trunk RH, Vegas White B-313Cover Trunk RH, Vegas White B-313
-
445518327441 Lateral Console FoamLateral Console Foam
-
450708301022 Cover Interior RHCover Interior RH
-
460250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
465518327441 Lateral Console FoamLateral Console Foam
-
470250300016 Ball Head StudBall Head Stud
-
480233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
490705002423 Lateral Reflector, Amber. Except CAN/USALateral Reflector, Amber. Except CAN/USA
-
490705003412 Lateral Reflector, Red. Canada/USALateral Reflector, Red. Canada/USA
-
500708302277 Fender RearFender Rear
-
510250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
520250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
530250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
540708300177 License Plate Light SupportLicense Plate Light Support
-
550708301564 Rear Pannel, Vegas White B-313Rear Pannel, Vegas White B-313
-
560250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
570250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
575705003207 Plastic WasherPlastic Washer
-
580708300022 LH Passenger HandleLH Passenger Handle
-
580b710000667 Male Housing, 2 Circuits. Not ShownMale Housing, 2 Circuits. Not Shown
-
590708300024 RH Passenger HandleRH Passenger Handle
-
590b710000667 Male Housing, 2 Circuits. Not ShownMale Housing, 2 Circuits. Not Shown
-
600708300209 LH Handle PannelLH Handle Pannel
-
605708300405 CapCap
-
610708300027 RH Handle PannelRH Handle Pannel
-
630250000804 Torx Screw M6 X 12Torx Screw M6 X 12
-
640708300049 Crontrol CapCrontrol Cap
-
670708300028 Under Tail Rear Wheel CoverUnder Tail Rear Wheel Cover
-
680293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
700708300708 Arm Cover LH, Vegas White B-313Arm Cover LH, Vegas White B-313
-
710708300709 Arm Cover RH, Vegas White B-313Arm Cover RH, Vegas White B-313
-
720708300716 Antenna Cap LH, Vegas White B-313Antenna Cap LH, Vegas White B-313
-
740708301555 Sound Box LHSound Box LH
-
750708301556 Sound Box RHSound Box RH
-
760708302609 LH Grill Sup.LH Grill Sup.
-
765708302567 LH Rear GrillLH Rear Grill
-
770708302610 Central LH Rear GrillCentral LH Rear Grill
-
775293720115 GrommetGrommet
-
780708302611 RH Grill Sup.RH Grill Sup.
-
785708302568 RH Rear GrillRH Rear Grill
-
790708302612 Central RH Rear GrillCentral RH Rear Grill
-
795293720115 GrommetGrommet
-
800708000614 Deep Black LH Arm RestDeep Black LH Arm Rest
-
810708000615 Deep Black RH Arm RestDeep Black RH Arm Rest
-
820250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
830250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
830250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
840269501166 Nut Housing Ass'yNut Housing Ass'y
-
850250000880 Torx-Truss M/S M6 X 25Torx-Truss M/S M6 X 25
-
860>860a708300781 Rear Support Ass'y. Includes 860 TO 860aRear Support Ass'y. Includes 860 TO 860a
-
860a269500725 Nut Housing Ass'yNut Housing Ass'y
-
880250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
890207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
900708302823 Trim Saddlebag LH , DARKTrim Saddlebag LH , DARK
-
910708302824 Trim Saddlebag RH , DARKTrim Saddlebag RH , DARK
-
920708302825 Trim Trunk Rear, Dark. Package DARKTrim Trunk Rear, Dark. Package DARK
-
950708300327 LH Inner FenderLH Inner Fender
-
960708300328 RH Inner FenderRH Inner Fender
-
970250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
980250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
990250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1000708300385 Retainer CableRetainer Cable
-
1010250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
1020211200055 Flat Washer, Stainless/NeopreneFlat Washer, Stainless/Neoprene
-
1030232061414 Hex. Nut M6Hex. Nut M6
-
1040708300397 SealSeal
-
1050705004173 Heat ShieldHeat Shield
-
1060293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
1090293750040 Tie-rap Mount (square - self-adhsive)Tie-rap Mount (square - self-adhsive)
