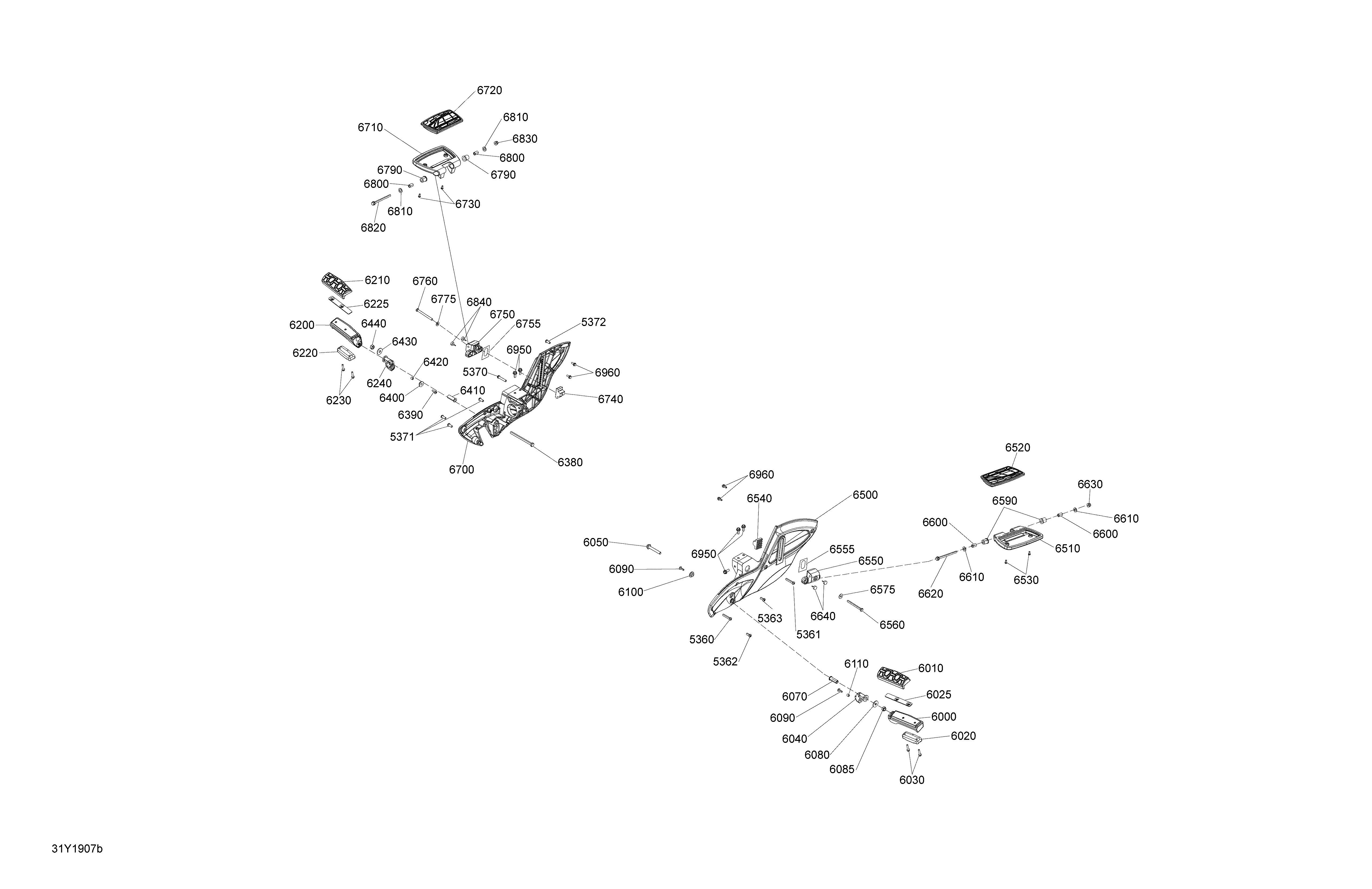

09- Body And Accessories Footrest для BRP 002 - RT STD SE6 - 2019
-
№АртикулНазвание
-
5360205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
5361205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
5362205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5363205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5370205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
5371205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5371205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5372205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
6000705011129 Carbon Black, LH FRT FootpegCarbon Black, LH FRT Footpeg
-
6010705003732 LH Front Footpeg PadLH Front Footpeg Pad
-
6020705003730 Vibration DampenerVibration Dampener
-
6025705003731 Front Pad PlateFront Pad Plate
-
6030210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
6040705003616 LH Rubber BushingLH Rubber Bushing
-
6050207507046 Hex. Screw M10 X 70, Scotch GripHex. Screw M10 X 70, Scotch Grip
-
6070706201151 Inner BushingInner Bushing
-
6080234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6085232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6100705003932 GrommetGrommet
-
6110709000162 BushingBushing
-
6200705011130 Carbon Black, RH FRT FootpegCarbon Black, RH FRT Footpeg
-
6210705003245 RH Front Footpeg PadRH Front Footpeg Pad
-
6220705003730 Vibration DampenerVibration Dampener
-
6225705003731 Front Pad PlateFront Pad Plate
-
6230210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
6240705003615 RH Rubber BushingRH Rubber Bushing
-
6380250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
6390250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6400705003932 GrommetGrommet
-
6410706201151 Inner BushingInner Bushing
-
6420709000162 BushingBushing
-
6430234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6440232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6500705011149 Black LH Footrest SupportBlack LH Footrest Support
-
6510705008533 Black, Rear FootboardBlack, Rear Footboard
-
6520705007461 LH Rubber Rear PadLH Rubber Rear Pad
-
6530250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
6540705003013 Adjuster BlockAdjuster Block
-
6550705008516 Black Sliding BlockBlack Sliding Block
-
6555705014173 Film, ProtectiveFilm, Protective
-
6560207189060 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
6575234281704 Spring Washer M8Spring Washer M8
-
6590705003018 Rubber BushingRubber Bushing
-
6600705002153 BushingBushing
-
6610503183800 WasherWasher
-
6620230681034 Hex. Flanged Screw M8 X 110Hex. Flanged Screw M8 X 110
-
6630233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6640708000759 Rubber StopperRubber Stopper
-
6700705011152 Black RH Footrest SupportBlack RH Footrest Support
-
6710705008533 Black, Rear FootboardBlack, Rear Footboard
-
6720705007472 RH Rubber Rear PadRH Rubber Rear Pad
-
6730250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
6740705003013 Adjuster BlockAdjuster Block
-
6750705008516 Black Sliding BlockBlack Sliding Block
-
6755705014173 Film, ProtectiveFilm, Protective
-
6760207189060 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
6775234281704 Spring Washer M8Spring Washer M8
-
6790705003018 Rubber BushingRubber Bushing
-
6800705002153 BushingBushing
-
6810503183800 WasherWasher
-
6820230681034 Hex. Flanged Screw M8 X 110Hex. Flanged Screw M8 X 110
-
6830233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6840708000759 Rubber StopperRubber Stopper
-
6950207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
6960207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
