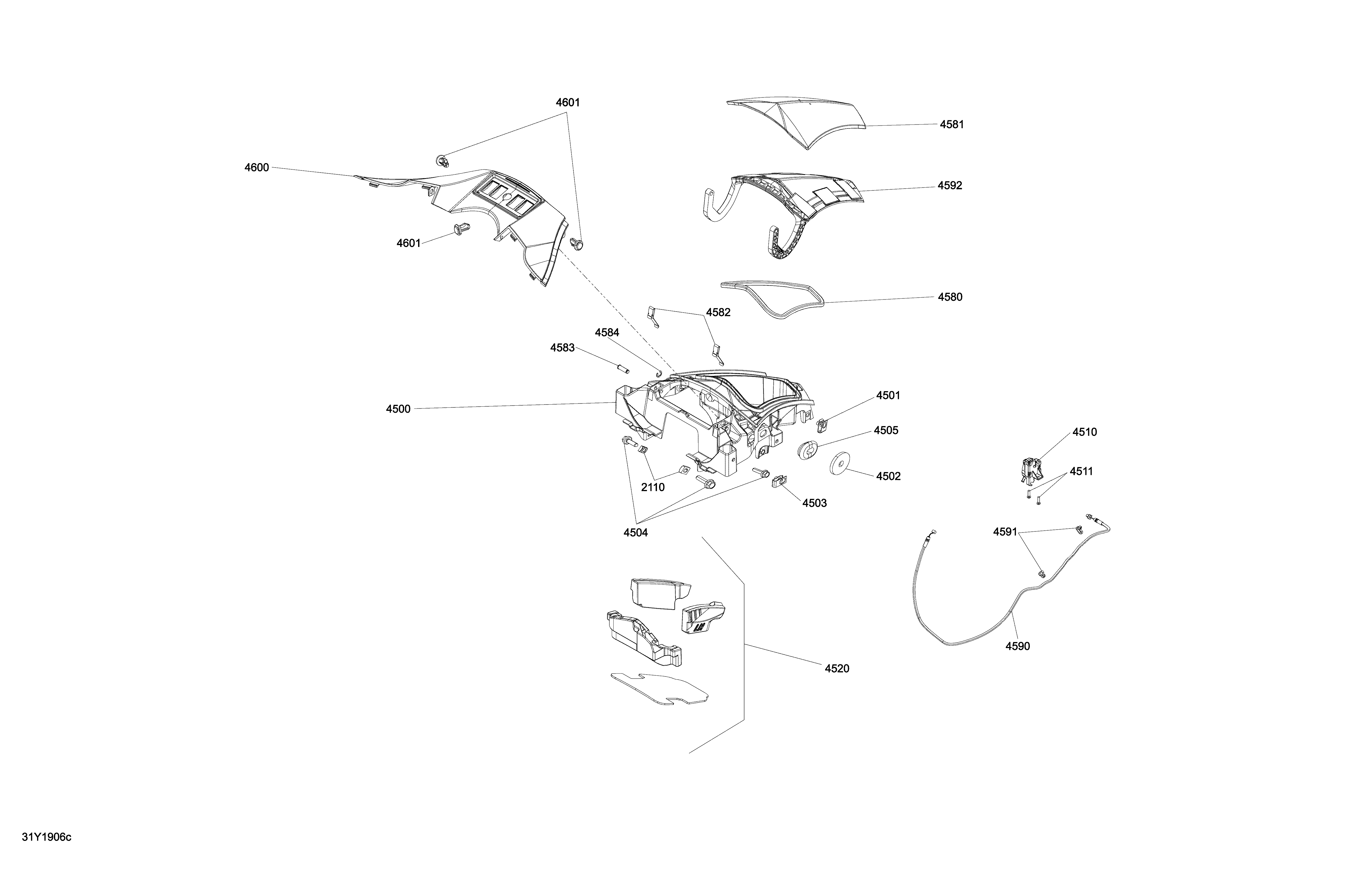

09- System Console - Glove Box для BRP 002 - RT STD SE6 - 2019
-
№АртикулНазвание
-
2110232862412 Square Nut M6Square Nut M6
-
4500705002726 Glove BoxGlove Box
-
4501250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
4502705000321 Oval WasherOval Washer
-
4503250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
4504207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4505705007085 Rubber WasherRubber Washer
-
4510705007380 Push LatchPush Latch
-
4511250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
4520219800172 Outer Front Insulation Foam KitOuter Front Insulation Foam Kit
-
4580219800143 Neoprene Seal, 3 Meter PackNeoprene Seal, 3 Meter Pack
-
4581705006973 Glove Box Cover, Vegas White B-313Glove Box Cover, Vegas White B-313
-
4582705003748 Glove Box SpringGlove Box Spring
-
4583705003295 Retainer PinRetainer Pin
-
4584705600272 CirclipCirclip
-
4590705007381 Glove Box CableGlove Box Cable
-
4591293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4592705009361 Door BoxDoor Box
-
4600705004461 Center PanelCenter Panel
-
4601293150230 Tuflok Plastic RivetTuflok Plastic Rivet
