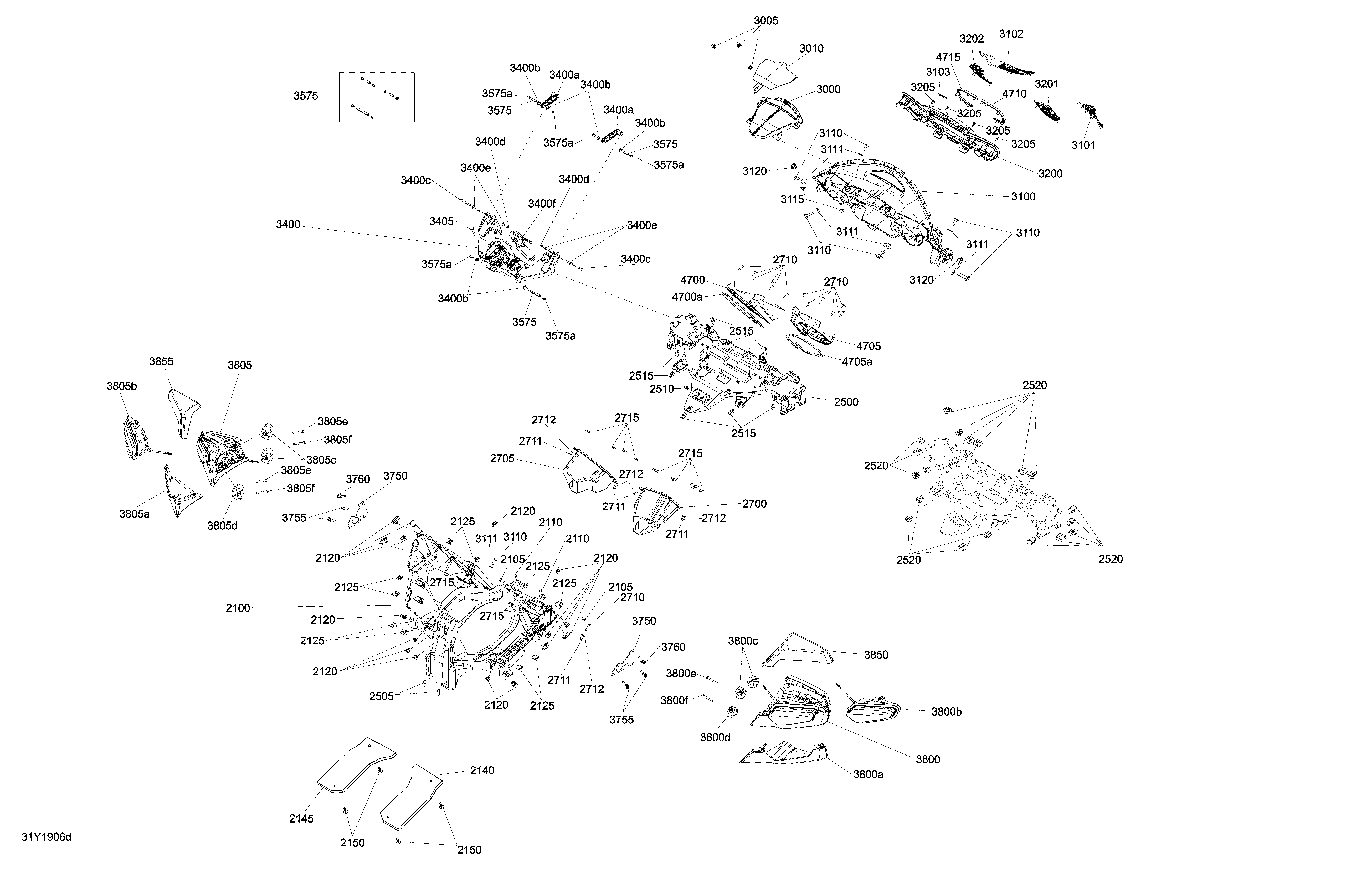

09- System Console - Front Console, Mirrors & Supports для BRP 002 - RT STD SE6 - 2019
-
№АртикулНазвание
-
2100705002743 Console SupportConsole Support
-
2105250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
2110232862412 Square Nut M6Square Nut M6
-
2120250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
2125269501166 Nut Housing Ass'yNut Housing Ass'y
-
2140707800349 LH Acoustic FoamLH Acoustic Foam
-
2145707800341 RH Acoustic FoamRH Acoustic Foam
-
2150293730006 Black DartBlack Dart
-
2500705012150 Console Cross-supportConsole Cross-support
-
2505210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2510207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2515250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
2520269501166 Nut Housing Ass'yNut Housing Ass'y
-
2700705011996 LH Speaker Housing Ass'yLH Speaker Housing Ass'y
-
2705705011997 RH Speaker Housing Ass'yRH Speaker Housing Ass'y
-
2710250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2711250100071 Hex. Flanged Nut M5Hex. Flanged Nut M5
-
2712250200025 Washer M5Washer M5
-
2715250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3000705002746 Guide Chart SupportGuide Chart Support
-
3005517302785 Edge ClipEdge Clip
-
3010705009360 Guide ChartGuide Chart
-
3100705006656 DashboardDashboard
-
3101705011416 LH Lower Speaker GrillLH Lower Speaker Grill
-
3102705011417 RH Lower Speaker GrillRH Lower Speaker Grill
-
3110250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3111250200164 Flat washer M6Flat washer M6
-
3115250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3120705000321 Oval WasherOval Washer
-
3200705011418 Dashboard BezelDashboard Bezel
-
3201705011603 LH Upper Speaker GrillLH Upper Speaker Grill
-
3202705011605 RH Upper Speaker GrillRH Upper Speaker Grill
-
3205250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
3400>3400f705011453 Motor Support Ass'y. Includes 3400 TO 3400fMotor Support Ass'y. Includes 3400 TO 3400f
-
3400a219800432 Arm-rear Ass'y. Includes 2 x 3400bArm-rear Ass'y. Includes 2 x 3400b
-
3400b705003267 SleeveSleeve
-
3400c207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
3400d232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
3400e234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3400f278002579 Windshield MotorWindshield Motor
-
3405207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
3560205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
3575>3575a219800355 Retainer Pin Kit. Includes 3575 TO 3575a See Bulletin No. 2014-6Retainer Pin Kit. Includes 3575 TO 3575a See Bulletin No. 2014-6
-
3575a205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
3750705003779 Console Support PlateConsole Support Plate
-
3755705004322 Spherical Head StudSpherical Head Stud
-
3760705004323 Spherical Head StudSpherical Head Stud
-
3800>3800b708400146 LH Mirror Assembly. Includes 3800 TO 3800bLH Mirror Assembly. Includes 3800 TO 3800b
-
3800a705003148 LH Lower Mirror ShellLH Lower Mirror Shell
-
3800b710001510 LH Front Flasher UnitLH Front Flasher Unit
-
3800c219800156 Housing with SpringHousing with Spring
-
3800d219800158 Housing with SpringHousing with Spring
-
3800e219800118 ScrewScrew
-
3800f219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
3805>3805b708400147 RH Mirror Assembly. Includes 3805 TO 3805bRH Mirror Assembly. Includes 3805 TO 3805b
-
3805a705003159 RH Lower Mirror ShellRH Lower Mirror Shell
-
3805b710001511 RH Front Flasher UnitRH Front Flasher Unit
-
3805c219800156 Housing with SpringHousing with Spring
-
3805d219800158 Housing with SpringHousing with Spring
-
3805e219800118 ScrewScrew
-
3805f219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
3850705007405 LH Upper Mirror Shell, Vegas White B-313LH Upper Mirror Shell, Vegas White B-313
-
3855705007406 RH Upper Mirror Shell, Vegas White B-313RH Upper Mirror Shell, Vegas White B-313
-
4700>4700a708400242 RH Speaker Support Ass'y. Includes 4700 TO 4700aRH Speaker Support Ass'y. Includes 4700 TO 4700a
-
4700a293250143 SealSeal
-
4705>4705a708400243 LH Speaker Support Ass'y. Inludes 4705 TO 4705aLH Speaker Support Ass'y. Inludes 4705 TO 4705a
-
4705a293250143 SealSeal
-
4710705012349 LH Trim, Deep Black B-160LH Trim, Deep Black B-160
-
4715705012351 RH Trim, Deep Black B-160RH Trim, Deep Black B-160
