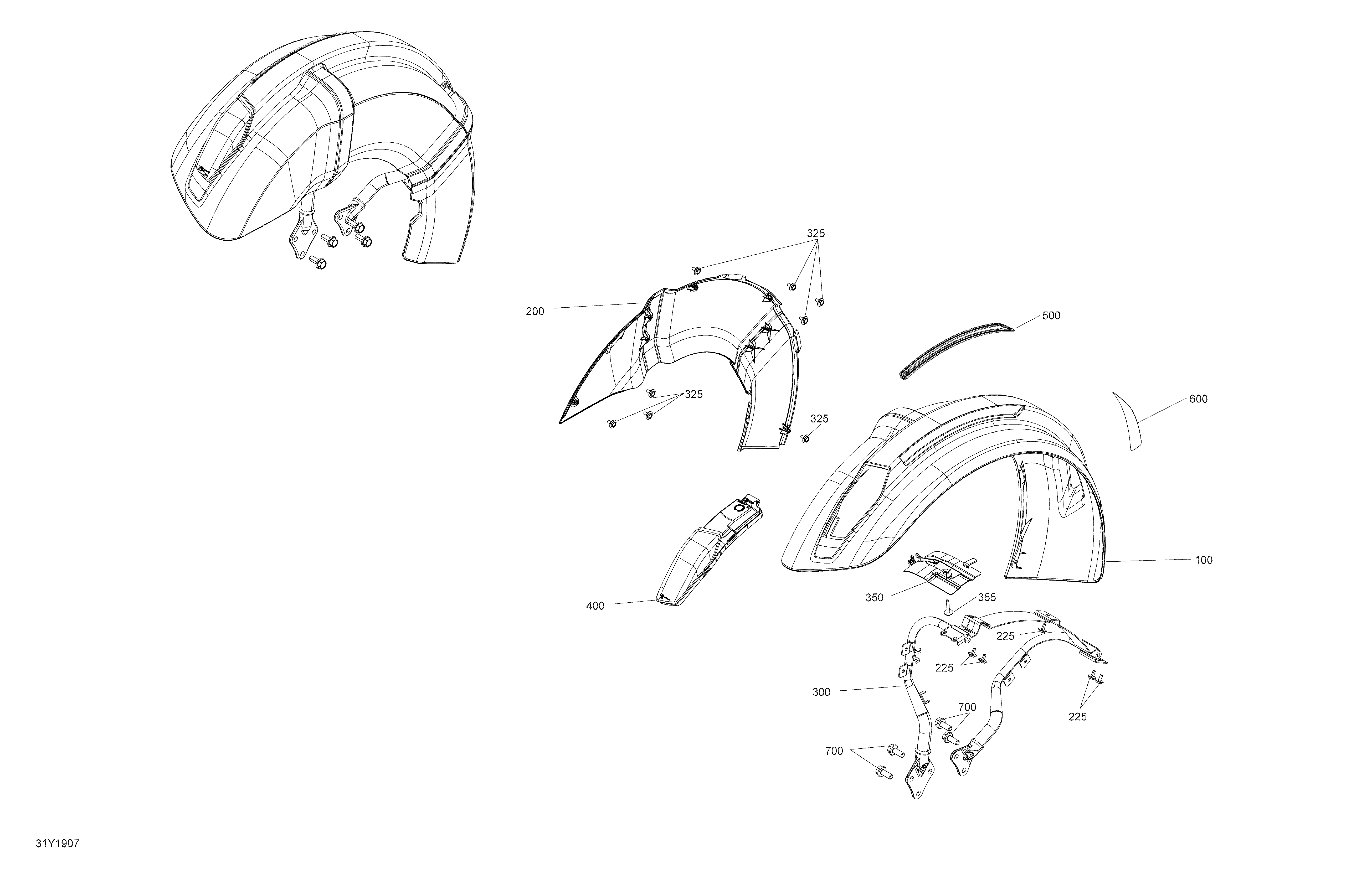

09- Body And Accessories_ Front Fender для BRP 002 - RT STD SE6 - 2019
-
№АртикулНазвание
-
100705013326 Vegas White, Fender Front LHVegas White, Fender Front LH
-
100705013566 Vegas White, Fender Front RHVegas White, Fender Front RH
-
200705012975 LH Inner Fender - BlackLH Inner Fender - Black
-
200705012867 RH Inner Fender - BlackRH Inner Fender - Black
-
225250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
300705013519 LH Front Fender Support Assy - BlackLH Front Fender Support Assy - Black
-
300705012981 RH Front Fender Support Assy - BlackRH Front Fender Support Assy - Black
-
325250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
350705013499 LH Light ProtectorLH Light Protector
-
350705013530 RH Light ProtectorRH Light Protector
-
355250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
400710006265 Position Light & Flasher LHPosition Light & Flasher LH
-
400710006266 Position Light & Flasher RHPosition Light & Flasher RH
-
500705012404 Reflector Yellow LHReflector Yellow LH
-
500705012405 Reflector Yellow RHReflector Yellow RH
-
600705014736 Red, Rear ReflectorRed, Rear Reflector
-
700207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
