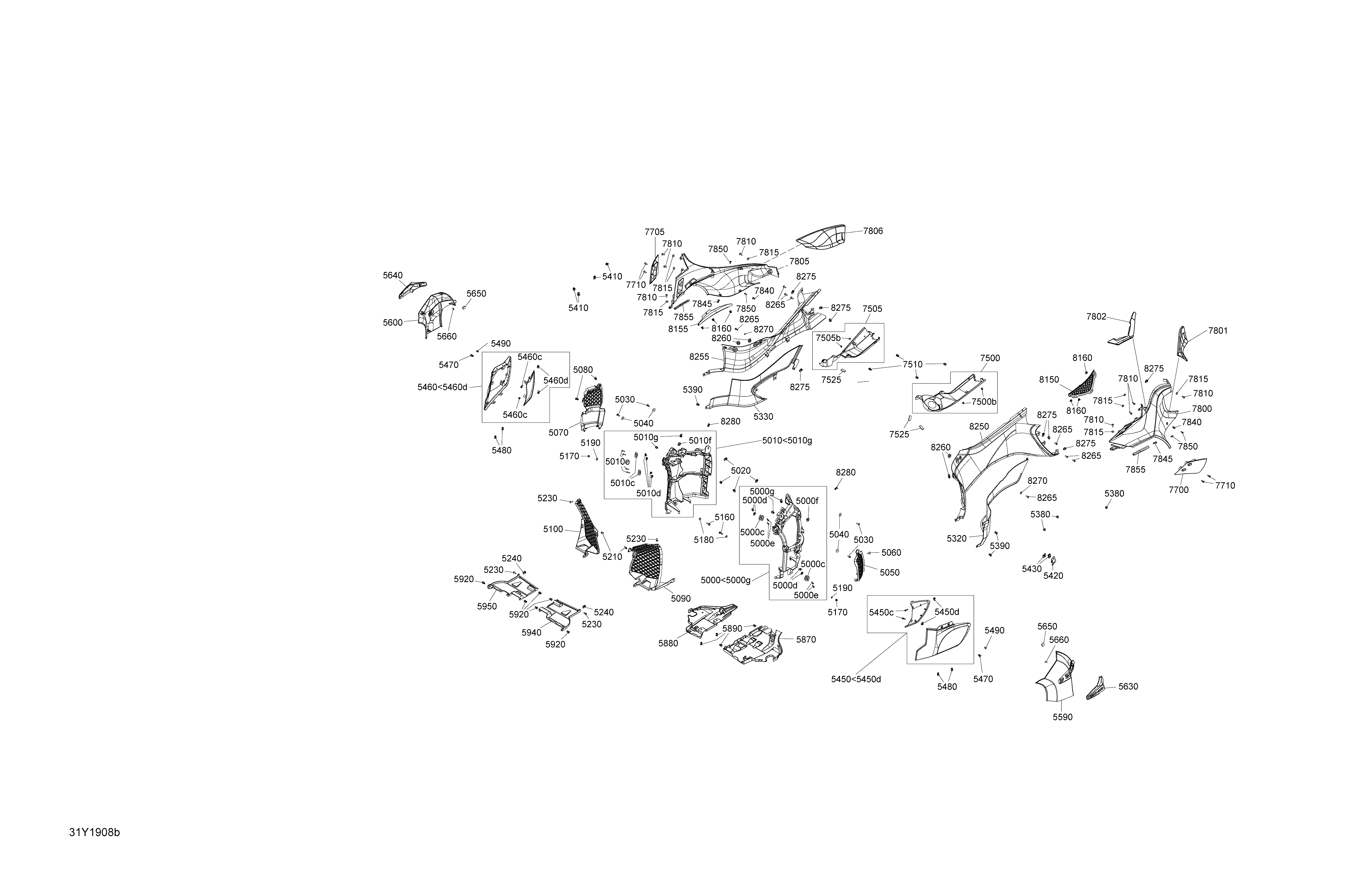

09- Body And Accessories Side Panels для BRP 002 - RT STD SE6 - 2019
-
№АртикулНазвание
-
5000<5000g705009063 LH SupportLH Support
-
5000c705005055 Grommet Ass'yGrommet Ass'y
-
5000d250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5000e207152060 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
5000f705003264 GrommetGrommet
-
5000g250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
5010<5010g705009064 RH SupportRH Support
-
5010c705005055 Grommet Ass'yGrommet Ass'y
-
5010d250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5010e207152060 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
5010f705003264 GrommetGrommet
-
5010g250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
5020250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
5030250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5040250200029 Washer M6Washer M6
-
5050705007307 LH Side GrillLH Side Grill
-
5060708000759 Rubber StopperRubber Stopper
-
5070705004803 RH Side GrillRH Side Grill
-
5080293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5090705004789 LH Radiatior MouldingLH Radiatior Moulding
-
5100705004790 RH Radiatior MouldingRH Radiatior Moulding
-
5160207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5170233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
5180234062410 Flat Washer 6 mmFlat Washer 6 mm
-
5190250100163 Pressure NutPressure Nut
-
5210210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5230250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5240250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
5320705006820 LH Lower PannelLH Lower Pannel
-
5330705007736 RH Lower PannelRH Lower Pannel
-
5380233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5390293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5410250100111 Panel Nut M8Panel Nut M8
-
5420705007375 Panel SupportPanel Support
-
5430250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
5450<5450d705003759 LH Water Deflector Ass'yLH Water Deflector Ass'y
-
5450c207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
5450d250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5460<5460d705003760 RH Water Deflector Ass'yRH Water Deflector Ass'y
-
5460c207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
5460d250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5470293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5470293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5480293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5480293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5490250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
5490250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
5590705008999 Vegas White Pearl LH Side PanelVegas White Pearl LH Side Panel
-
5600705009000 Vegas White Pearl RH Side PanelVegas White Pearl RH Side Panel
-
5630705013557 Deep Black, LH Lat Pan CapDeep Black, LH Lat Pan Cap
-
5640705013556 Deep Black, RH Lat Pan CapDeep Black, RH Lat Pan Cap
-
5650293830143 Rubber PadRubber Pad
-
5650293830143 Rubber PadRubber Pad
-
5660250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
5660250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
5870705004610 LH Deflector PannelLH Deflector Pannel
-
5880705004611 RH Deflector PannelRH Deflector Pannel
-
5890293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5890293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5920293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5920293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5920293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5940705005438 LH Skid PlateLH Skid Plate
-
5950705005439 RH Skid PlateRH Skid Plate
-
7500<7500b705004631 LH Tank Cover Ass'yLH Tank Cover Ass'y
-
7500b293750044 Tie Rap MountTie Rap Mount
-
7505<7505b705004632 RH Tank Cover Ass'yRH Tank Cover Ass'y
-
7505b293750044 Tie Rap MountTie Rap Mount
-
7510293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
7525293200003 Neoprene Seal (1PAC=3M)Neoprene Seal (1PAC=3M)
-
7700705004924 LH Lower Air DeflectorLH Lower Air Deflector
-
7705705004925 RH Lower Air DeflectorRH Lower Air Deflector
-
7710250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
7800705006168 White LH Upper PanelWhite LH Upper Panel
-
7801518329812 Upper Panel FoamUpper Panel Foam
-
7802518329821 LH Upper Panel FoamLH Upper Panel Foam
-
7805705006167 White RH Upper PanelWhite RH Upper Panel
-
7806518329820 RH Upper Panel FoamRH Upper Panel Foam
-
7810250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7815234062670 Flat Washer, StainlessFlat Washer, Stainless
-
7840705003842 KnobKnob
-
7845705003746 Angled KnobAngled Knob
-
7850250000459 Torx Screw, K50X16Torx Screw, K50X16
-
7855293200149 Neoprene Seal (1PAC=1M)Neoprene Seal (1PAC=1M)
-
8150705003385 LH Upper Side Panel GrillLH Upper Side Panel Grill
-
8155705003386 RH Upper Side Panel GrillRH Upper Side Panel Grill
-
8160517302785 Edge ClipEdge Clip
-
8250705006178 White LH Lateral PanelWhite LH Lateral Panel
-
8255705006177 White RH Upper Lateral PanelWhite RH Upper Lateral Panel
-
8260705000321 Oval WasherOval Washer
-
8265250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
8270234062670 Flat Washer, StainlessFlat Washer, Stainless
-
8275250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
8280293150230 Tuflok Plastic RivetTuflok Plastic Rivet
