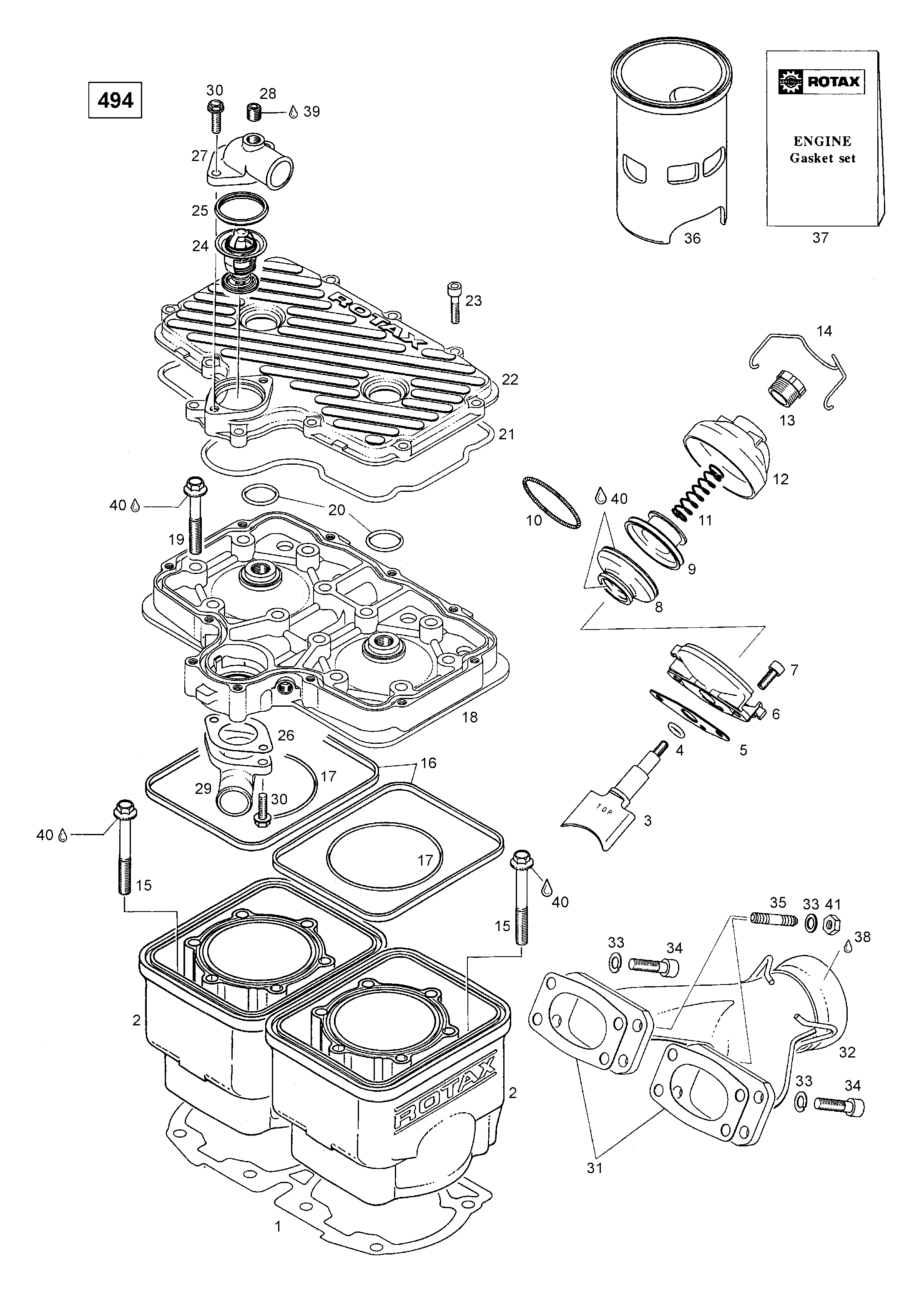

01- Cylinder для BRP Lynx Enduro 500 Special - 1999
-
№АртикулНазвание
-
1420931361 Double gasketDouble gasket
-
2420923617 Cylinder assyCylinder assy
-
3420854300 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420250239 GasketGasket
-
6420854265 Valve rod housingValve rod housing
-
7420241236 Allen screw M6x16Allen screw M6x16
-
8420260728 BellowsBellows
-
9420854447 Exhaust valve pistonExhaust valve piston
-
10420239043 Hose springHose spring
-
11420239946 Compression springCompression spring
-
12420911551 Valve coverValve cover
-
13420241220 Adjustment screwAdjustment screw
-
14420838082 Spring clipSpring clip
-
15420841996 Screw M8x68.5Screw M8x68.5
-
16420850040 Rubber ringRubber ring
-
17420831792 O-ringO-ring
-
18420923168 Cylinderhead yellowCylinderhead yellow
-
19420240326 Screw M8x53.5Screw M8x53.5
-
20420430782 O-ringO-ring
-
21420931260 O-ringO-ring
-
22420923622 Cylinder head coverCylinder head cover
-
23420840861 Allen screw M6x25Allen screw M6x25
-
24420922515 Thermostat 42 degr.Thermostat 42 degr.
-
25420931270 Thermostat gasketThermostat gasket
-
26420850338 GasketGasket
-
27420922061 Bent outlet socketBent outlet socket
-
28420240480 Plug screwPlug screw
-
29420922480 Outlet socketOutlet socket
-
30420941250 Taptite screw M6x20Taptite screw M6x20
-
31420850535 GasketGasket
-
32420973226 Exhaust manifold assyExhaust manifold assy
-
3320014 Lock washerLock washer
-
3440135 Allen screw M8x30Allen screw M8x30
-
35941600 Screw M8x16Screw M8x16
-
36420923156 Spare cylinder sleeveSpare cylinder sleeve
-
37420994226 Gasket setGasket set
-
38420297434 Loctite 15378Loctite 15378
-
39420899784 Loctite 574/viol.Loctite 574/viol.
-
4133003 Nut M8Nut M8
