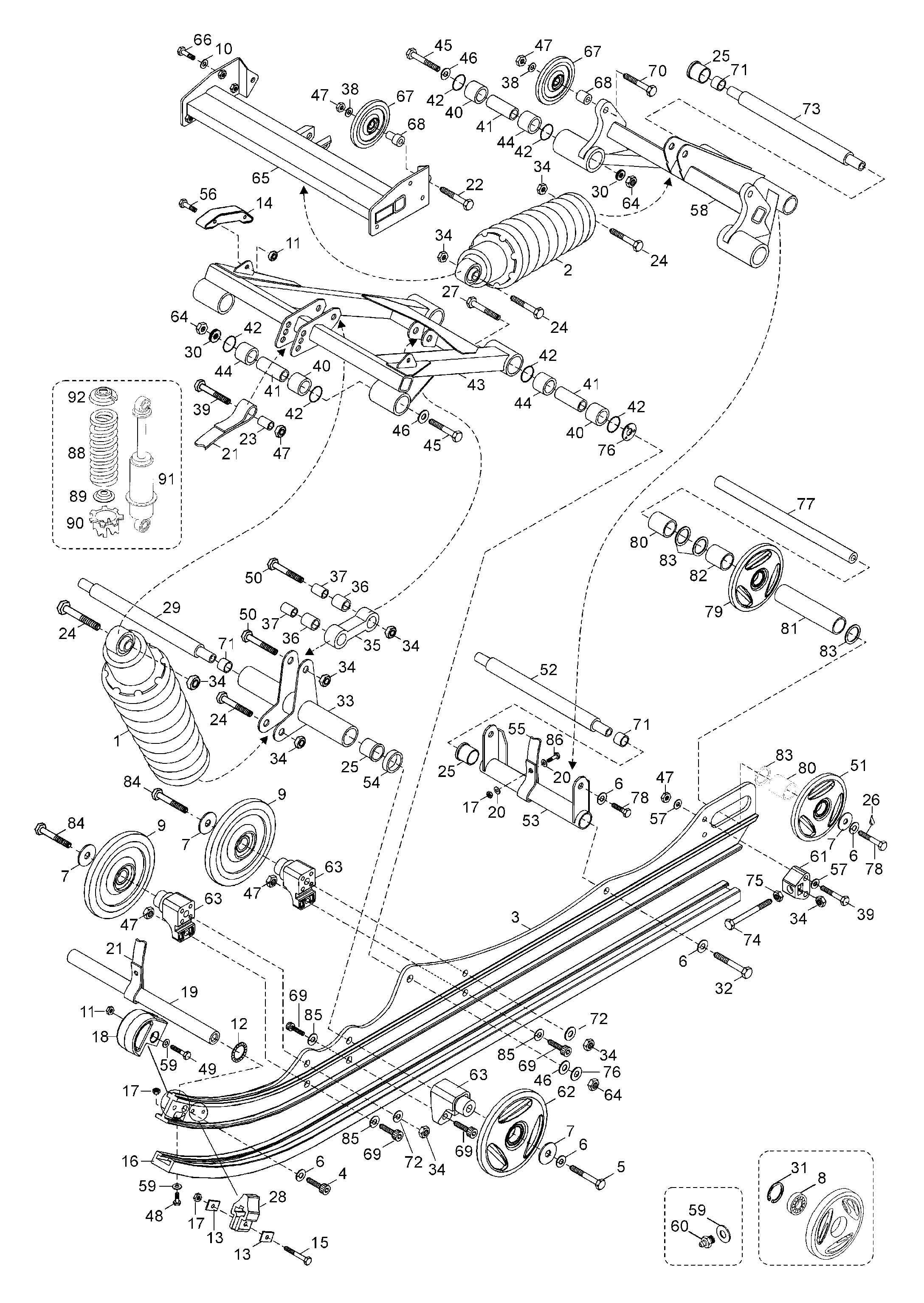

08- Rear Suspension для BRP Lynx Enduro 500 Special - 1999
-
№АртикулНазвание
-
123084 Shock LYNXShock LYNX
-
223083 Shock LYNXShock LYNX
-
35143212 RunnerRunner
-
440134 Allen screw M10x45Allen screw M10x45
-
540081 Screw M10x100Screw M10x100
-
620068 Lock washerLock washer
-
720023 WasherWasher
-
8405404500 Ball bearingBall bearing
-
946035 Wheel blackWheel black
-
1020072 Lock washerLock washer
-
1133200 Nut M6Nut M6
-
124181158 Fixing WasherFixing Washer
-
13548470 WasherWasher
-
145343191 Slide PartSlide Part
-
1540032 Screw M6x30Screw M6x30
-
165343350 Runner shoeRunner shoe
-
1733010 Nut elastic M6Nut elastic M6
-
18534578 Runner protectorRunner protector
-
195343471 ShaftShaft
-
2020009 WasherWasher
-
215443721 Belt, frontBelt, front
-
2240007 Screw M8x40Screw M8x40
-
235443476 SpacerSpacer
-
2440265 Screw M10x45Screw M10x45
-
2531083 BearingBearing
-
26413703000 Loctite 242Loctite 242
-
275444366 Screw M12x80Screw M12x80
-
285442328 Rubber StopperRubber Stopper
-
295443832 Support axleSupport axle
-
3020074 Lock washerLock washer
-
31371901700 CirclipCirclip
-
3240014 Screw M10x40Screw M10x40
-
335344512 ArmArm
-
3433012 Nut elastic M10Nut elastic M10
-
355443376 Draw BeamDraw Beam
-
3631047 BushingBushing
-
37546449 SleeveSleeve
-
3820010 WasherWasher
-
3940008 Screw M8x45Screw M8x45
-
4031065 BushingBushing
-
415440580 ShaftShaft
-
4228312 O-ringO-ring
-
435144387 Welded front armWelded front arm
-
4431048 BushingBushing
-
4540346 Screw M12x80Screw M12x80
-
46549359 WasherWasher
-
4733011 Nut elastic M8Nut elastic M8
-
4840845 Allen screw M6x25Allen screw M6x25
-
4940031 Screw M6x25Screw M6x25
-
5040016 Screw M10x45Screw M10x45
-
515344728 Idler Wheel 165 bk.Idler Wheel 165 bk.
-
525443832 ShaftShaft
-
535343462 Rear armRear arm
-
545443671 SpacerSpacer
-
555343473 Stopper strapStopper strap
-
5640064 Screw M6x40Screw M6x40
-
5720004 WasherWasher
-
585143459 Rear Arm WeldRear Arm Weld
-
5920003 WasherWasher
-
6034011 Crease nippleCrease nipple
-
615341633 TensionerTensioner
-
625344727 Wheel 135/bk.Wheel 135/bk.
-
635443748 SupportSupport
-
6433013 Nut elastic M12Nut elastic M12
-
655344743 Shock supportShock support
-
6640810 Allenscrew M8x20Allenscrew M8x20
-
6746027 Idler Wheel blackIdler Wheel black
-
68548765 SpacerSpacer
-
6940289 Allen screw M8x25Allen screw M8x25
-
7040008 Screw M8x45Screw M8x45
-
7131087 SleeveSleeve
-
7220005 WasherWasher
-
735443833 ShaftShaft
-
7440239 Screw M10x100Screw M10x100
-
7533004 Nut M10Nut M10
-
765442005 Locking washerLocking washer
-
775341914 Rear shaft l=341Rear shaft l=341
-
7840041 Screw M10x30Screw M10x30
-
79572045800 Wheel 165Wheel 165
-
805444095 SpacerSpacer
-
815443475 Sleeve l=160.5Sleeve l=160.5
-
825443474 Spacer l=38.5Spacer l=38.5
-
8331080 ShimShim
-
8440226 Screw M10x80Screw M10x80
-
8520014 Lock washerLock washer
-
8640031 Screw M6x25Screw M6x25
