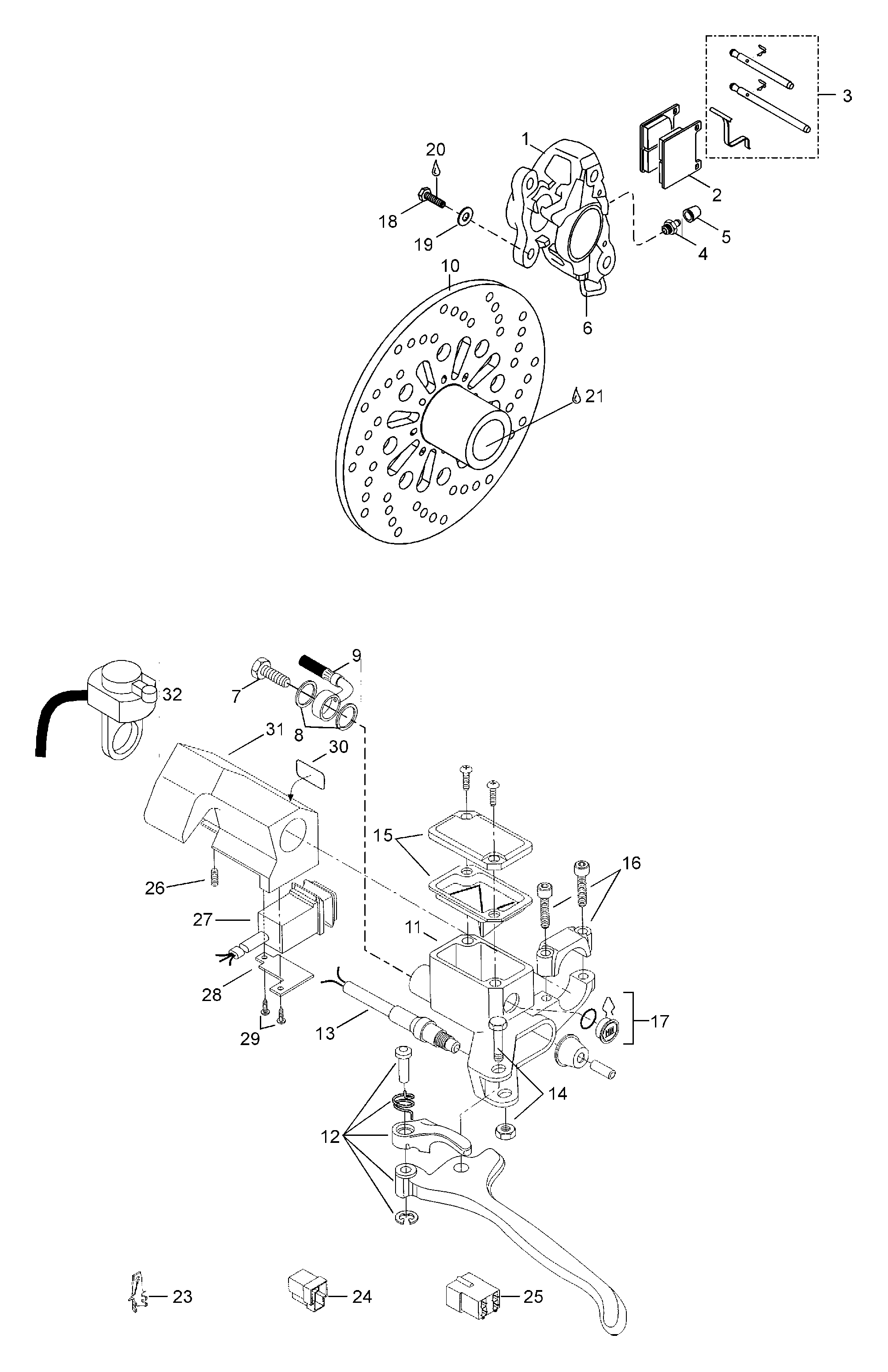

06- Brake Assy для BRP Lynx Enduro 500 Special - 1999
-
№АртикулНазвание
-
1414920000 Caliber. Includes items 1 thru 6Caliber. Includes items 1 thru 6
-
2414990000 Brake lining kitBrake lining kit
-
3414990700 Kit (pin,retainer,spring)Kit (pin,retainer,spring)
-
4414989800 Screw-bleederScrew-bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
7414920500 Bolt for hose connect.Bolt for hose connect.
-
8414920600 WasherWasher
-
9507032219 HoseHose
-
10507031300 Brake DiskBrake Disk
-
11415099500 Master cylinder. Includes items 11 thru 17Master cylinder. Includes items 11 thru 17
-
12415075300 Lever assyLever assy
-
13415117500 Microswitch assyMicroswitch assy
-
14415030000 Pin ass’yPin ass’y
-
15415029900 CoverCover
-
16415029800 Clamp ass’yClamp ass’y
-
17414990600 WindowWindow
-
18222003565 Screw M10x35Screw M10x35
-
1920068 Lock washerLock washer
-
20413703000 Loctite 242 10ccLoctite 242 10cc
-
21413701000 Loctite 767Loctite 767
-
2342031 TabTab
-
2442036 Housing tabHousing tab
-
2542122 Housing tabHousing tab
-
26414440800 Screw setScrew set
-
27515163600 Light switchLight switch
-
28517283800 Housing-plateHousing-plate
-
29414473200 ScrewScrew
-
30415025500 Switch decalSwitch decal
-
31572079500 Housing-dimmerHousing-dimmer
