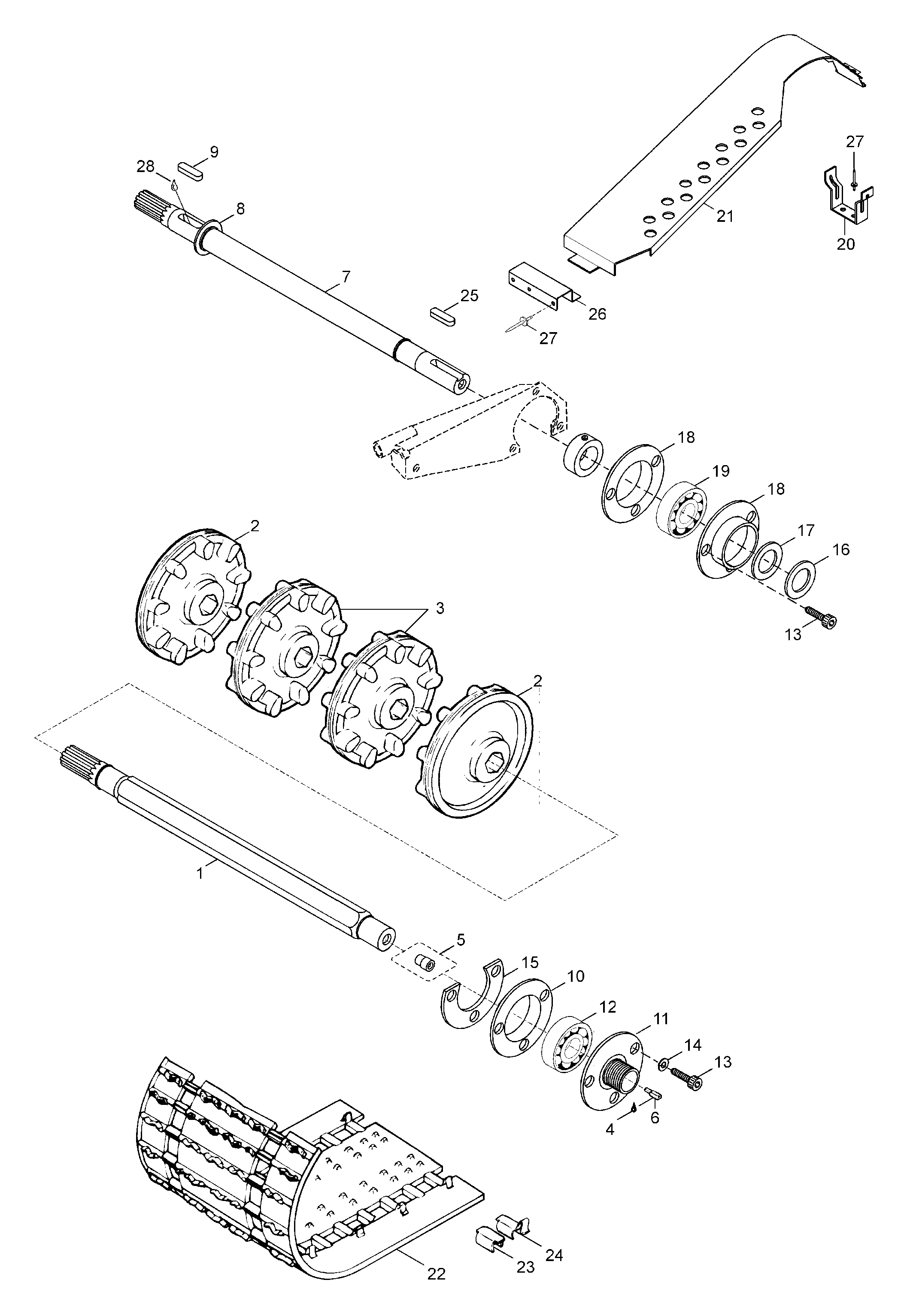

05- Drive Axle для BRP Lynx Enduro 500 Special - 1999
-
№АртикулНазвание
-
15341708 Drive axle assy. Includes items 1 thru 6Drive axle assy. Includes items 1 thru 6
-
15241707 Drive axleDrive axle
-
2414990800 Half sprocket 9 teethHalf sprocket 9 teeth
-
3414663900 Sprocket 9 teethSprocket 9 teeth
-
4413707400 Loctite 271, 10ccLoctite 271, 10cc
-
6542013 SleeveSleeve
-
75244640 Clutch shaftClutch shaft
-
84187194 Fixing Washer Arrg’tFixing Washer Arrg’t
-
9418740 KeyKey
-
105341953 Bearing houseBearing house
-
115341957 Cover weld.Cover weld.
-
1231009 Bearing ballBearing ball
-
1340305 Allen screw M8x20Allen screw M8x20
-
1420014 Spring washerSpring washer
-
155441956 Thrust ringThrust ring
-
1631010 ShimShim
-
173125351 ShimShim
-
185341388 Bearing housingBearing housing
-
1931122525G BearingBearing
-
20518202100 BracketBracket
-
215343939 Belt guardBelt guard
-
2213066 Track 60ShA. Includes items 22 thru 24Track 60ShA. Includes items 22 thru 24
-
22570212300 Track. Includes items 22 thru 24Track. Includes items 22 thru 24
-
2213065 Track 50ShA. Includes items 22 thru 24Track 50ShA. Includes items 22 thru 24
-
24500003400 Guide cleatGuide cleat
-
25418763 KeyKey
-
265341317 Support plateSupport plate
-
2736489 RivetRivet
-
28413701000 Loctite 767, antiseizeLoctite 767, antiseize
