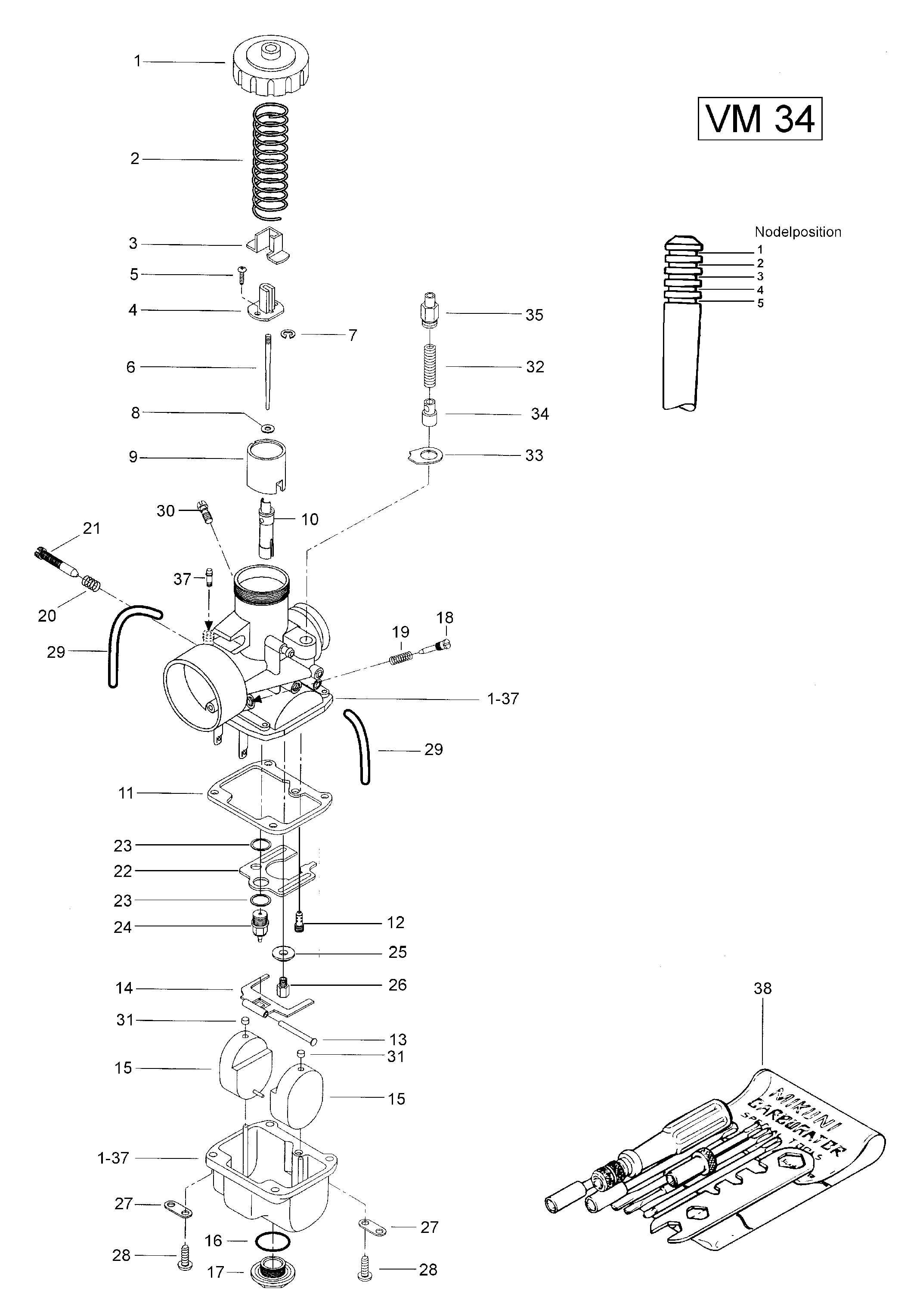

02- Carburetor для BRP Lynx Enduro 500 Special - 1999
-
№АртикулНазвание
-
119069 Carburetor VM34 MAG. Includes items 1 thru 37Carburetor VM34 MAG. Includes items 1 thru 37
-
119070 Carburetor VM34 PTO. Includes items 1 thru 37Carburetor VM34 PTO. Includes items 1 thru 37
-
1404103700 CoverCover
-
2404154800 Throttle valve sringThrottle valve sring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw + lock washerScrew + lock washer
-
6404101900 Jet needle 6DH4-3Jet needle 6DH4-3
-
7404152400 E-ringE-ring
-
8404117000 O-ringO-ring
-
9404128400 Throttle valve CA 2.5Throttle valve CA 2.5
-
10404107000 Needle jet 159P-0Needle jet 159P-0
-
11404104200 Gasket panGasket pan
-
12404109100 Pilot jet 40Pilot jet 40
-
13404103300 Float arm pinFloat arm pin
-
14404107600 Float armFloat arm
-
15404107100 FloatFloat
-
16404107300 WasherWasher
-
17404107400 Plug ScrewPlug Screw
-
18404149000 Idle adjusting screwIdle adjusting screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404125200 Throttle stop screwThrottle stop screw
-
22404109600 Baffle plateBaffle plate
-
23404101600 GasketGasket
-
24404103200 Needle valve 1.5Needle valve 1.5
-
25404110900 Baffle ringBaffle ring
-
26404100500 Main jet 280 MAGMain jet 280 MAG
-
26404100400 Main jet 270 PTOMain jet 270 PTO
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + lock washerScrew + lock washer
-
29404161802 Vent tubeVent tube
-
30404153400 NippleNipple
-
31404105800 CapCap
-
32404127400 SpringSpring
-
33404156400 PlatePlate
-
34404161000 Plunger ass’yPlunger ass’y
-
35404161100 Holder guideHolder guide
-
37404158900 FilterFilter
-
38404112000 Tool kitTool kit
