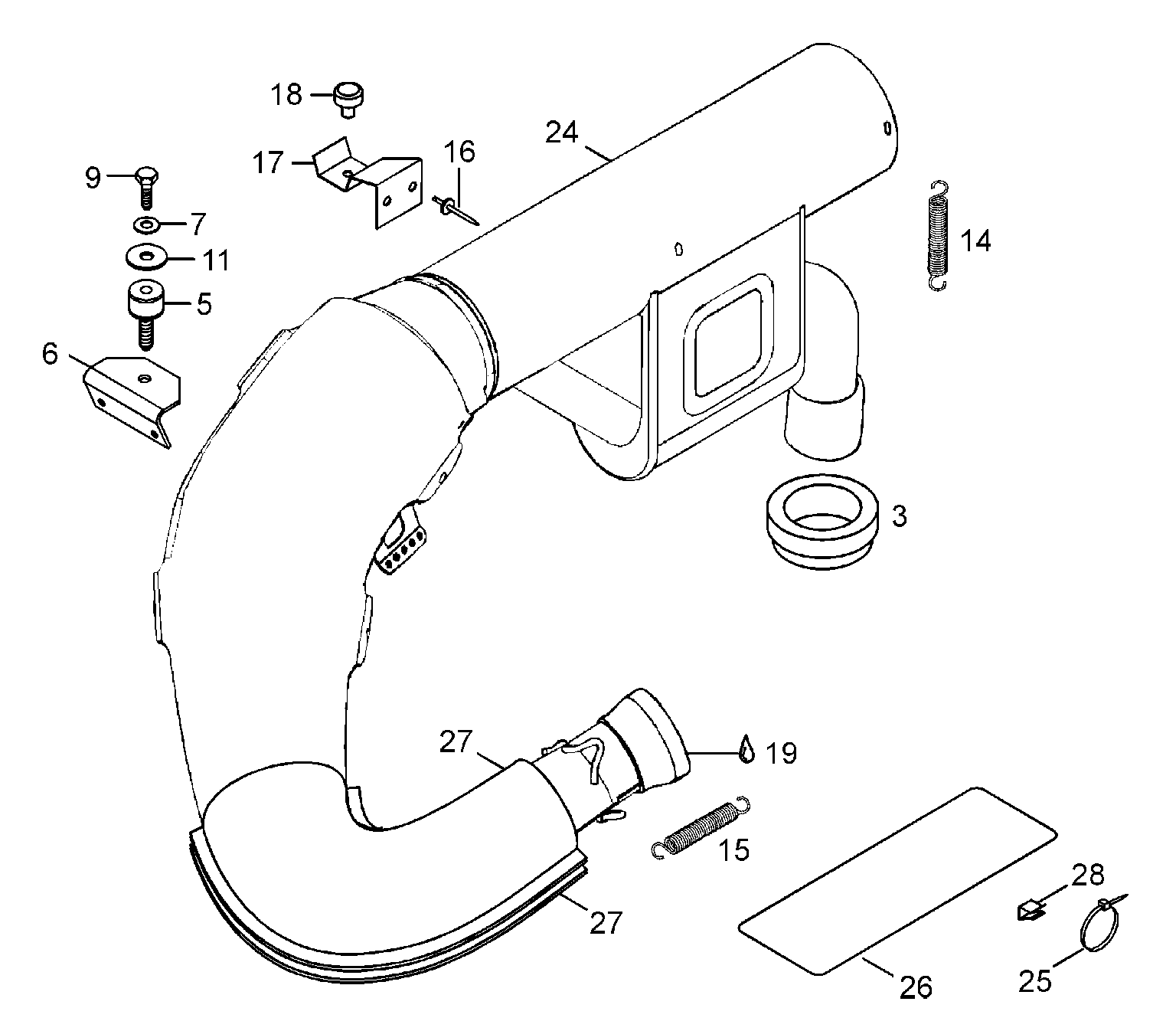

01- Muffler для BRP Lynx Enduro 500 Special - 1999
-
№АртикулНазвание
-
3570039000 Rubber for grommetRubber for grommet
-
528245 Rubber mountRubber mount
-
65443959 Tunepipe support, rearTunepipe support, rear
-
720072 Lock washerLock washer
-
940035 Screw M8x16Screw M8x16
-
15414893700 SpringSpring
-
1636489 RivetRivet
-
175344735 Support tune pipeSupport tune pipe
-
18570048700 Rubber bumberRubber bumber
-
19413710300 Loctite 17914Loctite 17914
-
245143088 Tune mufflerTune muffler
