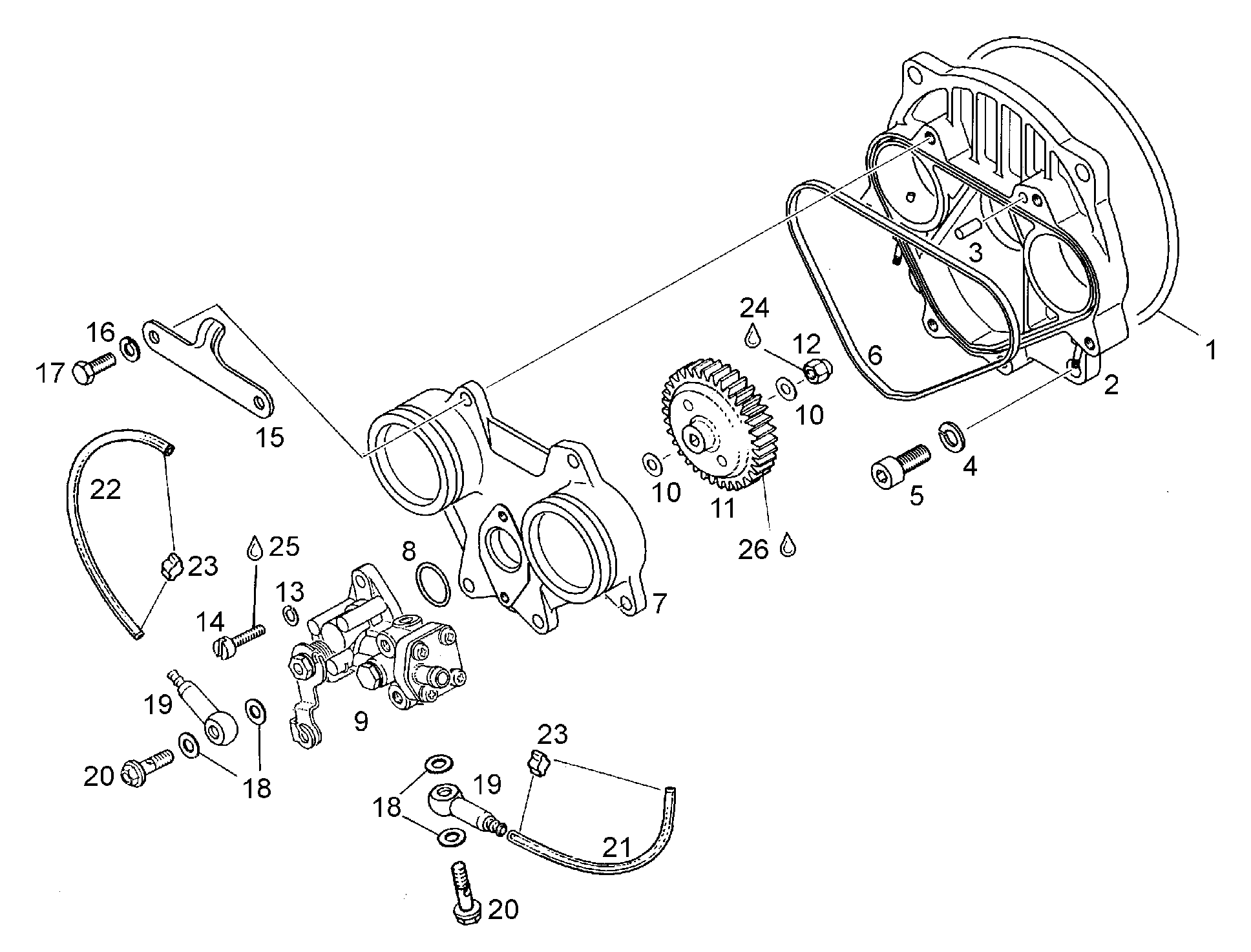

01- Oil Pump для BRP Lynx Enduro 500 - 1999
-
№АртикулНазвание
-
1420831360 O-ring 132-1.7O-ring 132-1.7
-
2420810486 Valve cover. Includes items 2 thru 3Valve cover. Includes items 2 thru 3
-
3420929650 Drive pinDrive pin
-
4420945752 Lock washerLock washer
-
5420240071 ScrewScrew
-
6420831707 Rubber ringRubber ring
-
7420810490 FlangeFlange
-
8420230370 O-ring 18-1.3O-ring 18-1.3
-
9420887930 Oil pumpOil pump
-
10420927945 WasherWasher
-
11420935945 Gear, 41TGear, 41T
-
12420842040 Lock nut M6Lock nut M6
-
13420945750 Lock washerLock washer
-
14420240761 Screw M5x16Screw M5x16
-
15420851340 Intake-silencer plateIntake-silencer plate
-
16420945751 Lock washerLock washer
-
17420940561 Screw M6x20Screw M6x20
-
18420227500 Gasket ringGasket ring
-
19420956010 Check valve assyCheck valve assy
-
20420241830 Banjo boltBanjo bolt
-
21420860232 Oil pipe, 80 mmOil pipe, 80 mm
-
22420960041 Oil pipe, 100 mmOil pipe, 100 mm
-
23420853840 ClampClamp
-
24420899785 Loctite 221/viol. 10ccLoctite 221/viol. 10cc
-
25420897651 Loctite 243/blue 10ccLoctite 243/blue 10cc
