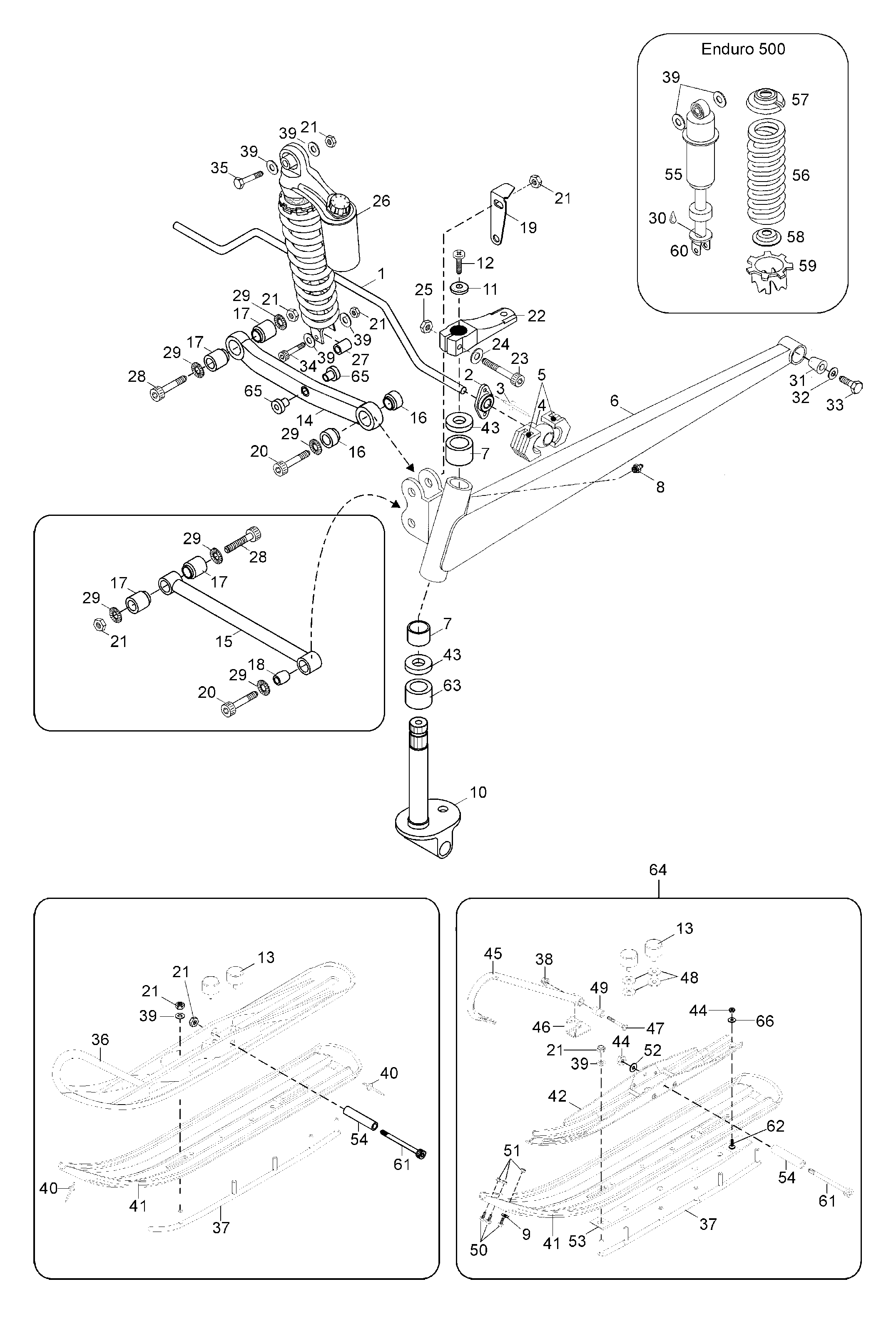

08- Front Suspension для BRP Lynx Enduro 500 - 1999
-
№АртикулНазвание
-
15241706 Sway barSway bar
-
25440458 BearingBearing
-
336036 RivetRivet
-
45440438 Ball jointBall joint
-
5572069800 Block sliding, halfBlock sliding, half
-
65243512 Swing arm, R.H. bl.Swing arm, R.H. bl.
-
65243513 Swing arm, L.H. bl.Swing arm, L.H. bl.
-
731048 HousingHousing
-
834011 Grease fittingGrease fitting
-
105244462 Ski legSki leg
-
115440849 Coned washerConed washer
-
1240842 ScrewScrew
-
132848001 BumperBumper
-
145243640 Upper arm, blackUpper arm, black
-
155343641 Lower arm, blackLower arm, black
-
165443670 Bushing, shortBushing, short
-
175443669 Bushing, longBushing, long
-
185440183 SpacerSpacer
-
195443972 Limiter L.H.Limiter L.H.
-
195443973 Limiter R.H.Limiter R.H.
-
2040858 Allen screw M10x50Allen screw M10x50
-
2133012 Nut elastic M10Nut elastic M10
-
225343569 Reversing ArmReversing Arm
-
2340851 Allen screw M8x50Allen screw M8x50
-
2420004 WasherWasher
-
2533201 Nut elastic M8Nut elastic M8
-
275441433 BushingBushing
-
2840277 Allen screw M10x65Allen screw M10x65
-
2920068 Lock washerLock washer
-
30413707400 Loctite 271, 10ccLoctite 271, 10cc
-
31547543 Cone RubberCone Rubber
-
3220028 WasherWasher
-
3340039 Screw M10x20Screw M10x20
-
3440837 Allen screw M10x55Allen screw M10x55
-
3540020 Screw M10x65Screw M10x65
-
365244325 Ski weld.Ski weld.
-
375244435 RunnerRunner
-
3920005 WasherWasher
-
411471007 Plastic surface blackPlastic surface black
-
4331010 Support ringSupport ring
-
545444463 SleeveSleeve
-
555344501 Shock assy. Includes items 55 thru 60Shock assy. Includes items 55 thru 60
-
5523035 Shock abs. RYDE FXShock abs. RYDE FX
-
56250252 Spring, whiteSpring, white
-
575340862 Spring stopperSpring stopper
-
5823177001 Spring guideSpring guide
-
5923176001 Preload adjuster camPreload adjuster cam
-
605442741 ClevisClevis
-
6140348 Allen screw M10x100Allen screw M10x100
-
635443622 SleeveSleeve
-
6531088 BearingBearing
-
6620047 WasherWasher
