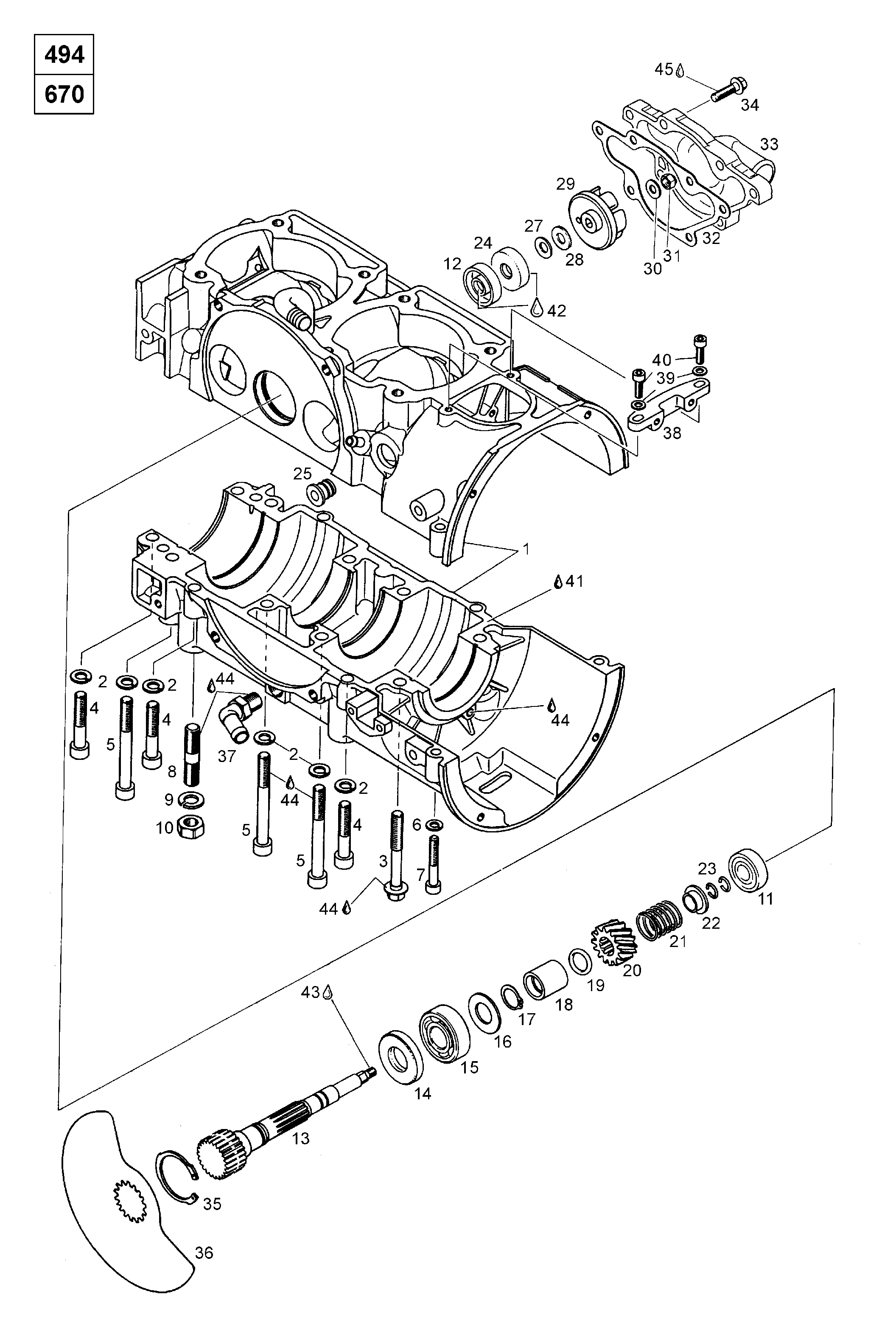

05- Crankcase для BRP Lynx Enduro 500 - 1999
-
№АртикулНазвание
-
1420888181 Crankcase assy. Includes items 1 thru 7Crankcase assy. Includes items 1 thru 7
-
2420945752 Lock washerLock washer
-
3420841306 Screw, M8x65Screw, M8x65
-
4420841561 Allen screw M8x45Allen screw M8x45
-
5420841831 Allen screw M8x75Allen screw M8x75
-
6420945751 Lock washerLock washer
-
7420241816 Allen screw M6x40Allen screw M6x40
-
8420941641 Stud M10Stud M10
-
9420945753 Lock washerLock washer
-
10420242091 Nut M10Nut M10
-
11420932797 BearingBearing
-
12420850710 Oil sealOil seal
-
13420837243 Rotary valve shaftRotary valve shaft
-
14420930580 Oil sealOil seal
-
15420932032 BearingBearing
-
16420227439 ShimShim
-
17420845450 CirclipCirclip
-
18420847282 SpacerSpacer
-
19420831500 O-ringO-ring
-
20420935735 Rotary valve gearRotary valve gear
-
21420938810 SpringSpring
-
22420827430 Spring holding cupSpring holding cup
-
23420845160 CirclipCirclip
-
24420650370 Rotary sealRotary seal
-
25420860965 Cable grommetCable grommet
-
27420227945 Thrust washerThrust washer
-
28420227155 Friction washerFriction washer
-
29420922036 ImpellerImpeller
-
30420244211 WasherWasher
-
31420842042 Lock nut M6Lock nut M6
-
32420931355 GasketGasket
-
33420922551 Pump housingPump housing
-
34420240031 Screw M6x25Screw M6x25
-
35420845260 Snap ringSnap ring
-
36420924502 Rotary valve, 159 degr.Rotary valve, 159 degr.
-
37420922245 Angular tubeAngular tube
-
38420851280 Pick up fixationPick up fixation
-
39420827800 WasherWasher
-
40420240181 Allenscrew M5x20Allenscrew M5x20
-
41420899784 Loctite 574/orangeLoctite 574/orange
-
42420899010 Transmission oilTransmission oil
-
43420899788 Loctite 648/vihreaLoctite 648/vihrea
-
44420899785 Loctite 221/violetLoctite 221/violet
-
45420897651 Loctite 243/blueLoctite 243/blue
