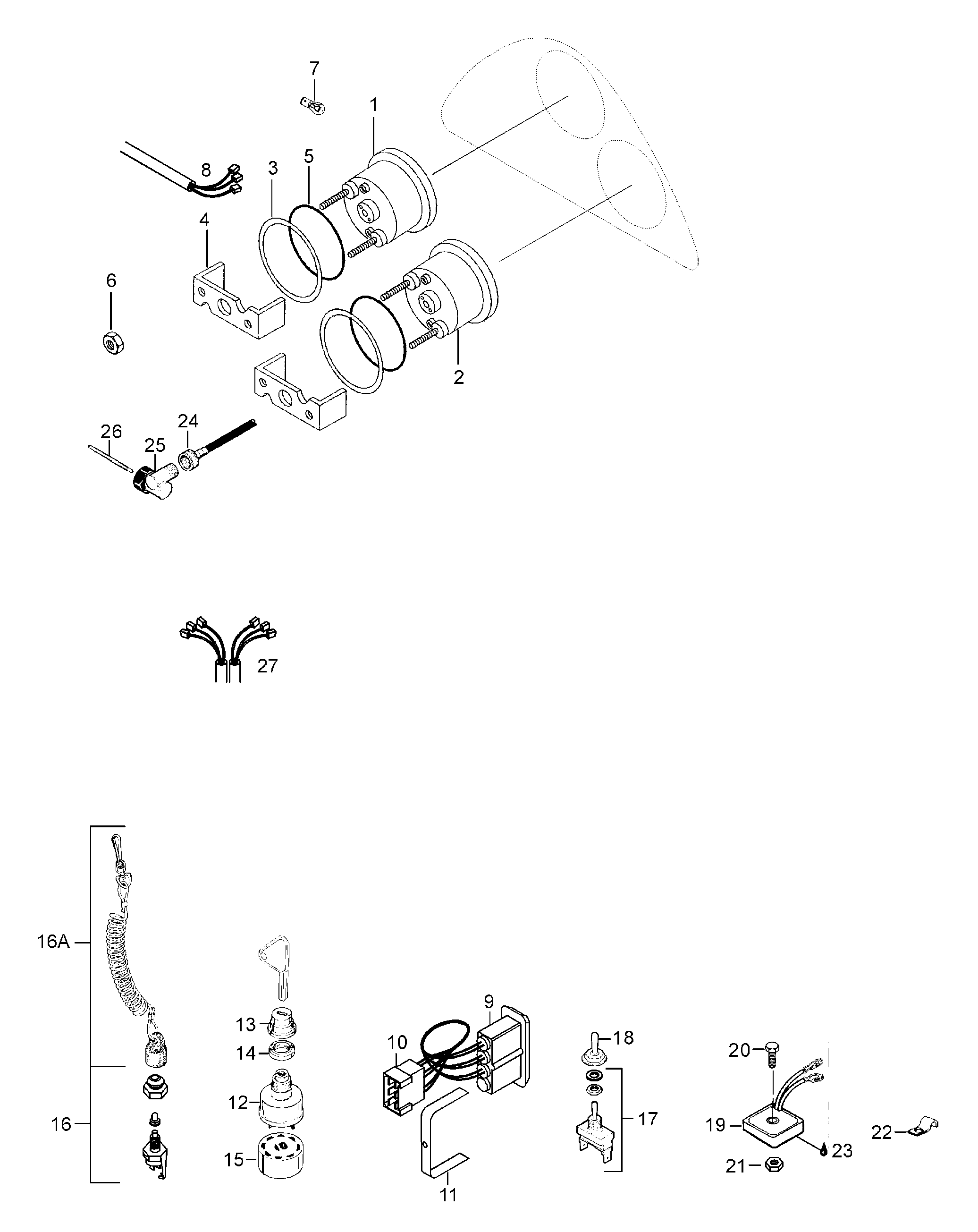

10- Electric для BRP Lynx Enduro 500 - 1999
-
№АртикулНазвание
-
1415096300 Speedometer whiteSpeedometer white
-
2415096500 Tachometer whiteTachometer white
-
3517258500 WasherWasher
-
4414806500 HolderHolder
-
5414807100 O-ringO-ring
-
633062 Nut elastic M6Nut elastic M6
-
7410504200 Instrumentation bulbInstrumentation bulb
-
8549147 BlockBlock
-
95441998 Signal lamp assy. Includes items 9 thru 11Signal lamp assy. Includes items 9 thru 11
-
935025 PanelPanel
-
1042036 Connector HousingConnector Housing
-
115442157 Fit plateFit plate
-
1242019 Ignition SwitchIgnition Switch
-
13570013700 Boot switchBoot switch
-
14410112100 Face nutFace nut
-
15572150700 Ignition switch blockIgnition switch block
-
16544957 Emercency switch. Includes items 16 thru 16AEmercency switch. Includes items 16 thru 16A
-
16a4299163 Switch cap assySwitch cap assy
-
17410110700 SwitchSwitch
-
18570013900 Rubber cover for switchRubber cover for switch
-
195441403 Regulator assyRegulator assy
-
2040003 Screw M6x35Screw M6x35
-
2133200 Nut elastic M6Nut elastic M6
-
22414227300 ClampClamp
-
23413706400 Litium greaseLitium grease
-
245343391 Speedometer cableSpeedometer cable
-
2535113 Drive angle 1:1.2Drive angle 1:1.2
-
2645075 SquarepinSquarepin
-
275242790 Wire assyWire assy
